Supplies 24 volt DC power to industrial cabinets.

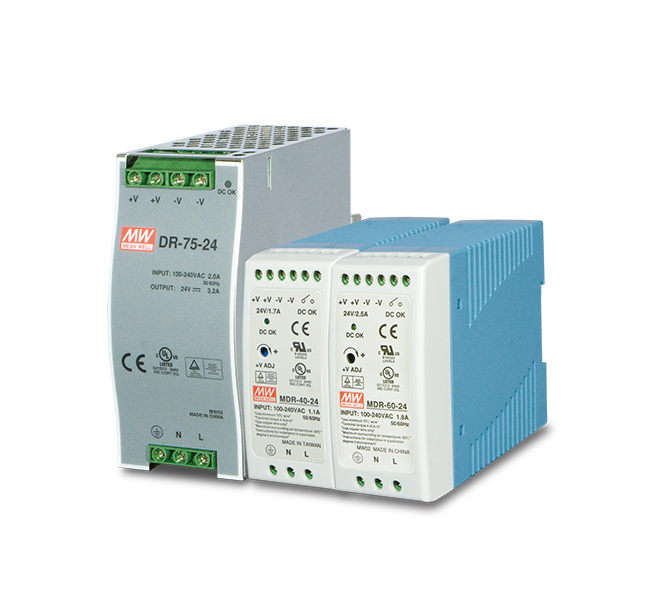

This DIN rail power supply series covers three models that accept 100-240 volt AC mains or a 120-370 volt DC feed and deliver 40, 60 or 75 watts. It builds the 24 volt rail for non-PoE industrial switches and VDSL2 converters.

24 V DCoutput voltage

40 – 75 Wpower options

100-240 V ACinput voltage

3.2 Amaximum output current

TS-35DIN rail mounting

Key features

Output optionsThe 40 watt 1.7 A, 60 watt 2.5 A and 75 watt 3.2 A models all deliver 24 volts.

Wide input rangeAccepts 100-240 volt AC mains as well as a 120-370 volt DC feed.

Protection circuitsShort circuit, overload, over voltage and over temperature protection come as standard.

Fanless coolingFree air convection cools the body, and no moving part is involved.

Operating temperaturePWR-40-24 and PWR-60-24 run from -20 ~ 70 °C, and PWR-75-24 runs from -10 ~ 60 °C.

DIN rail mountingSeats on TS-35/7.5 and TS-35/15 rails, and the 40 x 100 x 90 mm body fits narrow cabinets.

The output load derating curve appears in the product specification.

PWR-40-24 (MEAN WELL/MDR-40-24)
Dimensions (W x D x H)	40 x 100 x 90 mm
Weight (kg)	0.3 kg
Input Voltage	100-240V AC, 50/60Hz, 1.1A, 120-370V DC
Power Output	40 watts, 24V, 1.7A
Temperature	Operating: -20~70°C (*) Storage: -40~85°C
Humidity	Operating: 20 ~ 90% Storage: 10 ~ 95% (non-condensing)
Installation	DIN Rail TS-35/7.5 or 15
Safety & Function	UL508, UL60950-1, TUV EN60950-1 approved, NEC class 2 / LPS compliant
*Note	Please refer to output load derating curve from product specification.

PWR-60-24 (MEAN WELL/MDR-60-24)
Dimensions (W x D x H)	40 x 100 x 90 mm
Weight (kg)	0.3 kg
Input Voltage	100-240V AC, 50/60Hz, 1.8A, 120-370V DC
Power Output	60 watts, 24V, 2.5A
Temperature	Operating: -20~70°C (*) Storage: -40~85°C
Humidity	Operating: 20 ~ 90% Storage: 10 ~ 95% (non-condensing)
Installation	DIN Rail TS-35/7.5 or 15
Safety & Function	UL508, TUV EN60950-1 approved
*Note	Please refer to output load derating curve from product specification.

PWR-75-24 (MEAN WELL/DR-75-24)
Dimensions (W x D x H)	55 x 100 x 125 mm
Weight (kg)	0.6 kg
Input Voltage	100-240V AC, 50/60Hz, 2.0A, 120-370V DC
Power Output	75 watts, 24V, 3.2A
Temperature	Operating: -10~60°C (*) Storage: -20~85°C
Humidity	Operating: 20 ~ 90% Storage: 10 ~ 95% (non-condensing)
Installation	DIN Rail TS-35/7.5 or 15
Safety & Function	UL508, TUV EN60950-1 approved
*Note	Please refer to output load derating curve from product specification.

PWR-40-24 (MEAN WELL/MDR-40-24)

Dimensions (W x D x H)

40 x 100 x 90 mm

Weight (kg)

0.3 kg

Input Voltage

100-240V AC, 50/60Hz, 1.1A, 120-370V DC

Power Output

40 watts, 24V, 1.7A

Temperature

Operating: -20~70°C (*)
Storage: -40~85°C

Humidity

Operating: 20 ~ 90%
Storage: 10 ~ 95% (non-condensing)

Installation

DIN Rail TS-35/7.5 or 15

Safety & Function

UL508, UL60950-1, TUV EN60950-1 approved, NEC class 2 / LPS compliant

*Note

Please refer to output load derating curve from product specification.

PWR-60-24 (MEAN WELL/MDR-60-24)

Dimensions (W x D x H)

40 x 100 x 90 mm

Weight (kg)

0.3 kg

Input Voltage

100-240V AC, 50/60Hz, 1.8A, 120-370V DC

Power Output

60 watts, 24V, 2.5A

Temperature

Operating: -20~70°C (*)
Storage: -40~85°C

Humidity

Operating: 20 ~ 90%
Storage: 10 ~ 95% (non-condensing)

Installation

DIN Rail TS-35/7.5 or 15

Safety & Function

UL508, TUV EN60950-1 approved

*Note

Please refer to output load derating curve from product specification.

PWR-75-24 (MEAN WELL/DR-75-24)

Dimensions (W x D x H)

55 x 100 x 125 mm

Weight (kg)

0.6 kg

Input Voltage

100-240V AC, 50/60Hz, 2.0A, 120-370V DC

Power Output

75 watts, 24V, 3.2A

Temperature

Operating: -10~60°C (*)
Storage: -20~85°C

Humidity

Operating: 20 ~ 90%
Storage: 10 ~ 95% (non-condensing)

Installation

DIN Rail TS-35/7.5 or 15

Safety & Function

UL508, TUV EN60950-1 approved

*Note

Please refer to output load derating curve from product specification.
