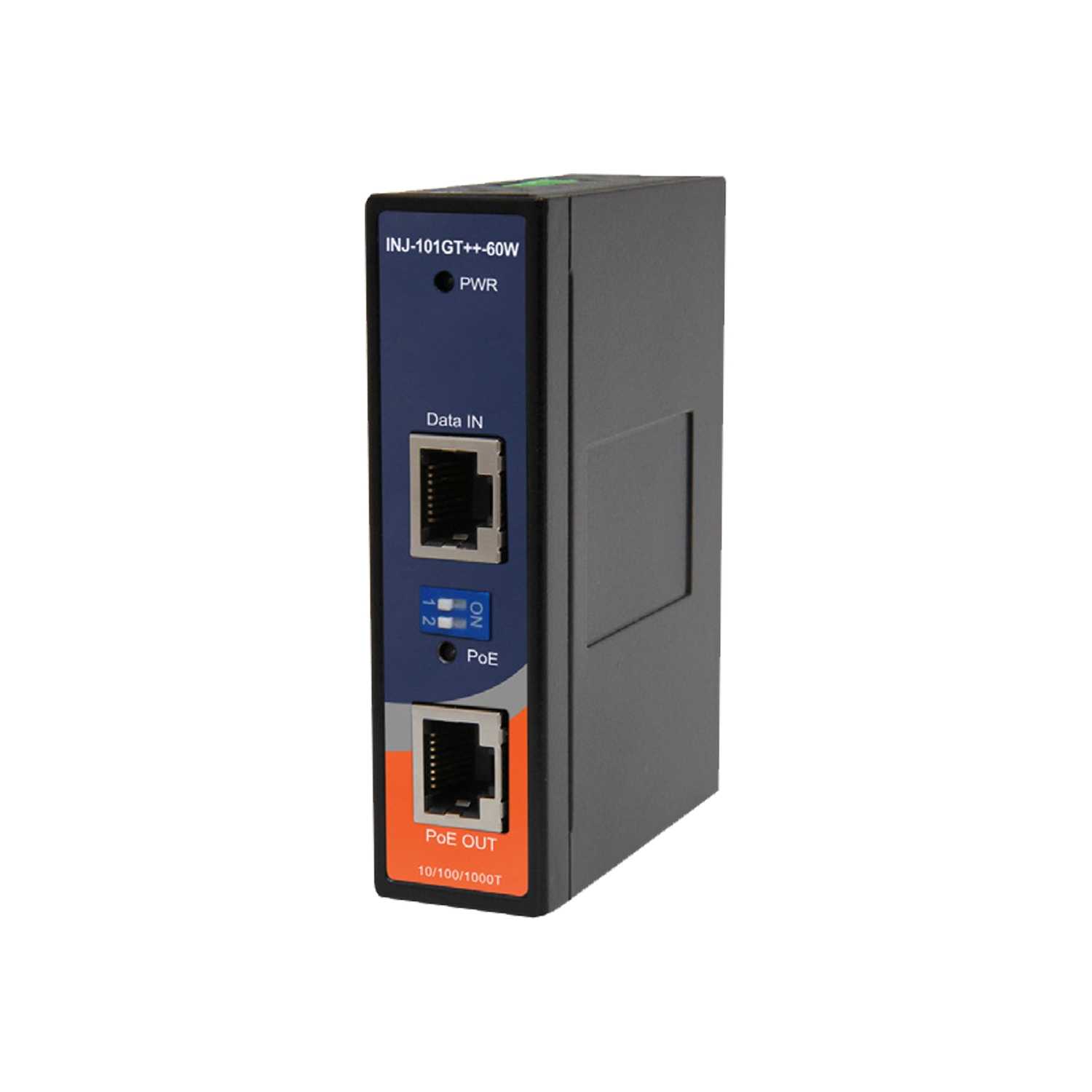

The INJ-101GT++ PoE Injector series is not only an IEEE802.3at compliant device but also an advanced high power PoE injector. It is intelligent detection that provided 1-ports 10/100/1000Base-T (X) PoE outputs. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Therefore, only an IEEE 802.3at/802.3af compliant device can be powered with the INJ-101GT++ PoE Injector. Typically in Gigabit networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. The INJ-101GT++ PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3af/at PoE standards, and provide the DIP switch configurator for High power PoE management.
- - PoE++ Injector for 1x10/100/1000Base-T(X)
- - Fully compliant with IEEE802.3at/802.3af standard
- - Auto protection for Over Voltage Power Input and over current output
- - Supports totally Power Output up to 60Watts for all ports usage.
- - Provided DIP switch configurator for PoE mode management
- - High reliability and rigid IP-30 housing
- - DIN-Rail and Wallmount design
