1-Port Long Reach PoE over coax Extender Kit
Planet

1-Port Long Reach PoE over coax Extender Kit

Stock Code: LRP-101C-KIT

10M-100M
30W POE
70C -20C
PLUG & PLAY
WALL MOUNTABLE

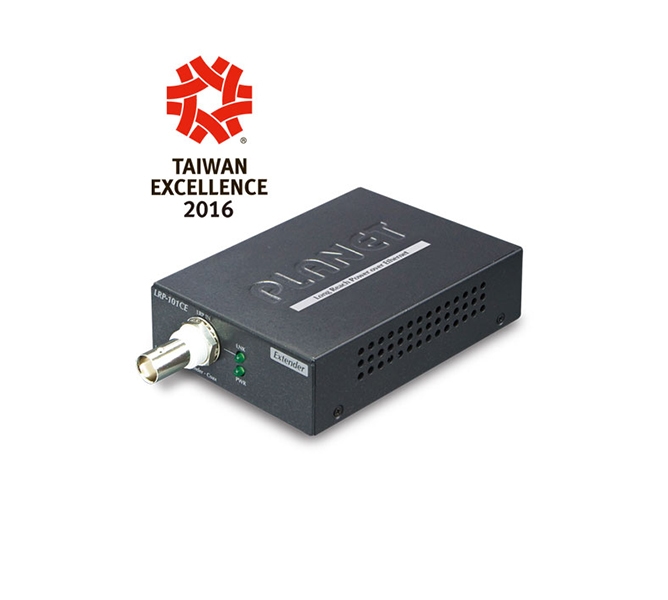

The LRP-101C-KIT includes two products: The LRP-101CH, a Coax Long Reach PoE Injector (LRP injector), and the LRP-101UE, a Coax Long Reach PoE Extender (LRP extender). Working in pair, the LRP-101CH can be powered by either external DC power adapter or PoE+ Ethernet switch, and from there, the LRP-101CE’s 802.3at standard PoE output goes to PoE Powered Device (PD). The LRP-101C-KIT can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.

The LRP-101C-KIT can function in two different kinds of combinations:

Type 1: LRP-101CH with PoE power input and LRP-101CE with PoE power output
The LRP-101CH injector is powered by IEEE 802.3at/af PoE source and it transmits data and power over coaxial cable to the LRP-101CE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101CE via UTP cabling.


Functions
LRP Injector
LRP Extender
LRP-101CH
LRP-101CE
Power Input
RJ45 with 802.3at/af PoE input
BNC with DC power over coaxial input
Power Output
BNC with DC power over coaxial output
RJ45 with 802.3at/af PoE output


Type 2: LRP-101CH with 48~56V DC power input and LRP-101CE with PoE power output
The LRP-101CH injector is powered via the DC power adapter and it transmits data and power over coaxial cable to the LRP-101CE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101CE via UTP cabling.


Functions
LRP Injector
LRP Extender
LRP-101CH
LRP-101CE
Power Input
Power adapter with 48~56V DC in
BNC with DC power over coaxial input
Power Output
BNC with DC power over coaxial output
RJ45 with 802.3at/af PoE output
