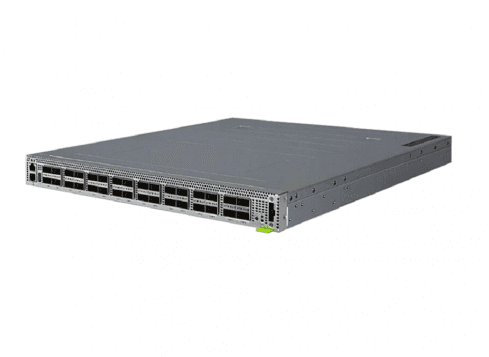

The Edgecore Wedge100BF-32X/65X switch is a Top-of-Rack (TOR) or spine switch for high-performance data centers. In a 1RU (32X)/2RU (65X) form factor, the switch provides line-rate L2 and L3 switching across the 32/65 x QSFP28 ports, supporting up to 32/65 x 25/40/50/100 GbE connections. The Wedge100BF-32X/65X can be deployed as a TOR switch supporting 25/50 GbE to servers with 40/50/100 GbE uplinks, or as a spine switch supporting 40/50/100 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System so?ware.
-
Cost-effective, bare-metal switch infrastructure for data center fabric.
-
Designed with programmable To?no switch silicon from Barefoot Networks.
-
Deploys as Top-of-Rack or Spine switch supporting 25 GbE to servers, with 40 or 50 or 100 GbE uplinks.
-
Deploys as spine switch supporting 40, 50, or 100 GbE ToR and spine interconnects.
-
32 x QSFP28 switch ports, each supporting 1 x 100 GbE or 1 x 50 GBE or 1 x 40 GbE, or via breakout cables, 4 x 25 GbE or 4 x 10 GbE.
-
?Layer 2 or Layer 3 switching switching capacity of 6.4 (32X)/12.8 (65X) Tbps (full duplex).
-
Supports hot/cold aisle with port-to-power air?ow SKU.
-

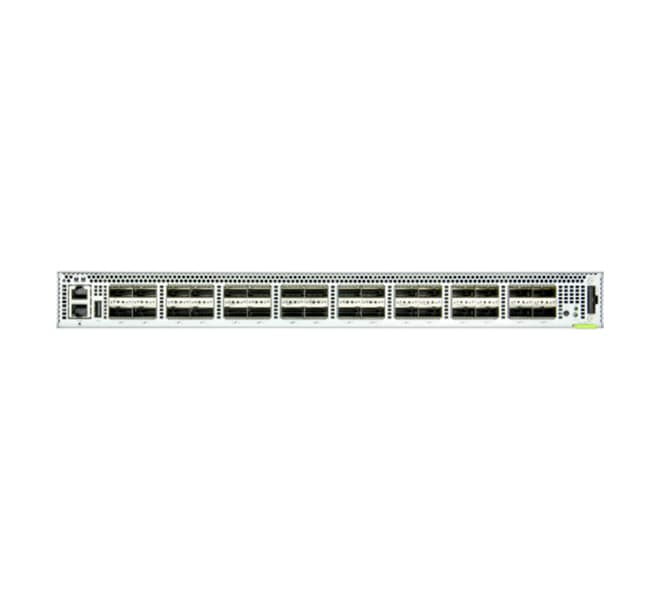

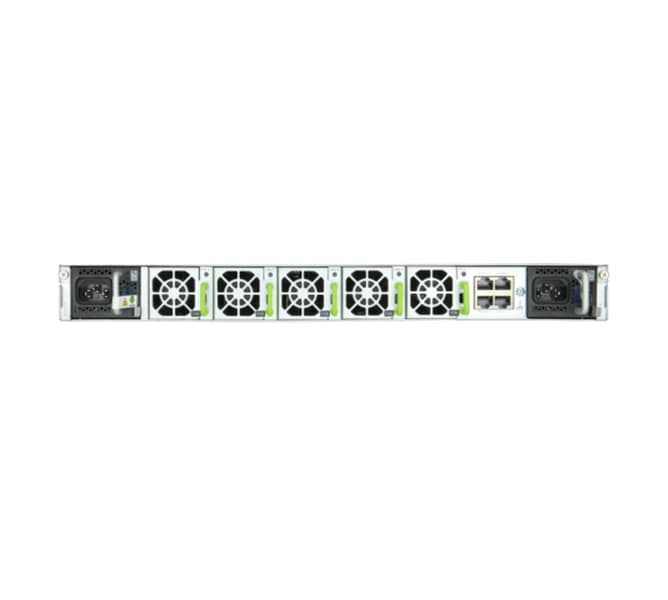

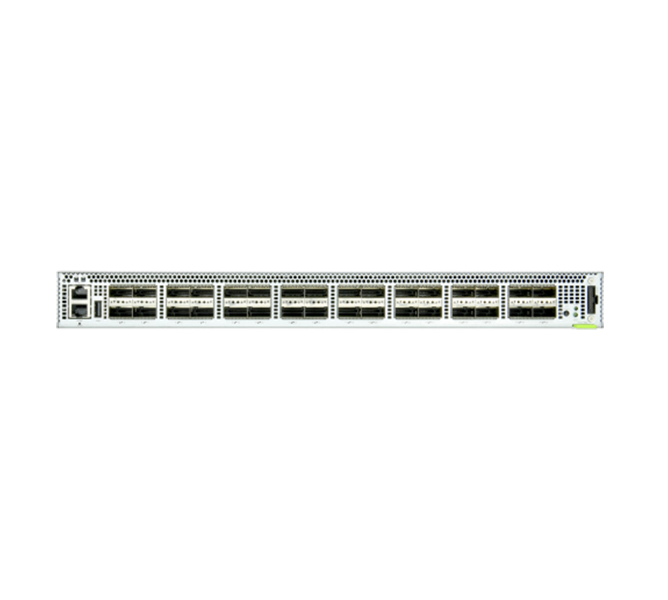

All ports on front; PSUs and fans accessible from rear.
-
Hot-swappable, load-sharing, redundant AC or 48V DC PSUs.
-
4+1/9+1 redundant, hot-swappable fan modules.
-
Switch pre-loaded with diagnostics and with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
-
Compatible with Kaloom Cloud Edge Fabric™.
-
Compatible with Noviflow NoviWare
-
Compatible with SONiC open source network software.
