Hardware Specifications
Interface	LAN/WAN: 1 x 10/100/1000 Mbps auto MDI/MDI-X RJ-45 port
Antenna	Gain: 2.4GHz: 2 x 2dBi internal antenna 5GHz: 2 x 4dBi internal antenna
Button/Switch	Mode Selection Switch (AP/Repeater/Client) WPS/Reset Button *Press for about 3~10 seconds for WPS settings and over 30 seconds to reset to factory default settings
LED Indicators	PWR, LAN, WPS, Wi-Fi signal, WLAN
Material	Plastic
Dimensions (W × D × H)	59 × 40 × 91 mm (power plug is excluded)
Weight	116 g
Power Requirements	Input power: 100-240V AC, 50/60Hz

Wireless Interface Specifications
Standard	IEEE 802.11ac (Draft 2.0) 5GHz IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz
Frequency Band	Simultaneous 2.4 GHz and 5 GHz
Data Modulation	802.11b: DSSS (DBPSK/DQPSK/CCK) 802.11a/g/n: OFDM (BPSK/QPSK/16QAM/64QAM) 802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
Data Rates	802.11a: 6/9/12/24/36/48/54Mbps 802.11b: 1/2/5.5/11Mbps 802.11g: 6/9/12/24/36/48/54Mbps 802.11n (20MHz): MCS0-15, up to 144Mbps 802.11n (40MHz): MCS0-15, up to 300Mbps 802.11ac (80MHz): Nss2-MCS9, up to 867Mbps
Frequency Range	• 2.4GHz: America -- FCC: 2.412~2.462GHz Europe -- ETSI: 2.412~2.484GHz • 5GHz: America -- FCC: 5.180~5.240GHz, 5.725~5.850GHz Europe -- ETSI: 5.180~5.240GHz
Operating Channels	• 2.4GHz: America -- FCC: 1~11 Europe -- ETSI: 1~13 • 5GHz: America -- FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 Europe -- ETSI: 36, 40, 44, 48 5GHz channel list will vary in different countries according to their regulations.
Channel Width	802.11n: 20/40MHz 802.11ac: 20/40/80MHz
RF Power/EIRP	• 2.4GHz: 11b: 17±1.5dBm 11g: 15±1.5dBm 11n: 14±1.5dBm • 5GHz: 11a: 14±1.5dBm 11n: 14±1.5dBm 11ac: 12±1.5dBm
Receive Sensitivity	• 2.4GHz: 11b (11Mbps): -86±2dBm 11g (54Mbps): -72±2dBm 11n (20M) mode: -71±2dBm 11n (40M) mode: -69±2dBm • 5GHz: 11a: -73±2dBm 11n (20M) mode: -71±2dBm 11n (40M) mode: -68±2dBm 11ac (80M) mode: -58±2dBm

Software Features
Wireless Modes	• AP • Client • Universal Repeater
Encryption Security	WEP (64-/128-bit) WPA/WPA2 WPA-PSK/WPA2-PSK encryption
Wireless Security	Wireless MAC address filtering Support WPS (Wi-Fi Protected Setup)
Max. Supported Clients	2.4GHz Wireless: 32 5GHz Wireless: 32
LAN	Built-in DHCP server supporting static IP address distributing
System Management	Web-based (HTTP) management interface System Log
IEEE Standards	IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T
Other Protocols and Standards	CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP
OS Compatibility	Windows 10 Windows 8 Windows 7 Windows Vista Windows XP Mac OS X 10.4 and higher

Standards Conformance
Temperature	Operating: 0 ~ 40°C Storage: -20 ~ 60°C
Humidity	Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing)
Regulatory	FCC, CE, RoHS, WEEE

Extends Wi-Fi coverage from a wall plug housing

An 802.11ac range extender that uses the 2.4 GHz and 5 GHz bands at the same time. It carries both the 300 and 867 Mbps bands together, closes dead zones, and connects wired devices through its Gigabit RJ-45 port.

1200 MbpsTotal wireless rate

867 Mbps802.11ac 5 GHz rate

300 Mbps802.11n 2.4 GHz rate

110/100/1000 Mbps RJ-45 LAN port

100-240V ACPower Requirements

0 ~ 40°COperating Temperature

Key features

867Mbps

5 GHz 802.11ac band

Carries HD video and gaming traffic at 80 MHz channel width.

300Mbps

2.4 GHz 802.11n band

Extends the existing network on a 40 MHz channel at the same time.

APmode

Hardware mode switch

Moves between AP, repeater and client modes with no software setup.

2 x 4dBi

5 GHz internal antennas

The 2.4 GHz side runs 2 x 2 dBi antennas.

32clients

Capacity per band

The 2.4 GHz and 5 GHz bands each carry 32 clients.

WPSbutton

One-touch pairing

One press builds a secure link with the existing wireless router.

IN DAILY USE

Plugs into an outletThe wall plug shaped body needs no extra cable or adapter.

Signal indicatorThe lit indicator reads signal strength at that spot and makes placement easier.

Gigabit wired outputThe RJ-45 port passes the wireless coverage on to wired devices.

Usage AreasHome and SOHO networks·Multi-floor residences·Rooms outside the coverage area

Hardware Specifications

Interface

LAN/WAN:
1 x 10/100/1000 Mbps auto MDI/MDI-X RJ-45 port

Antenna

Gain: 2.4GHz: 2 x 2dBi internal antenna
5GHz: 2 x 4dBi internal antenna

Button/Switch

Mode Selection Switch (AP/Repeater/Client)
WPS/Reset Button
*Press for about 3~10 seconds for WPS settings and over 30 seconds to reset to factory default settings

LED Indicators

PWR, LAN, WPS, Wi-Fi signal, WLAN

Material

Plastic

Dimensions (W × D × H)

59 × 40 × 91 mm (power plug is excluded)

Weight

116 g

Power Requirements

Input power: 100-240V AC, 50/60Hz

Wireless Interface Specifications

Standard

IEEE 802.11ac (Draft 2.0) 5GHz
IEEE 802.11a/n 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency Band

Simultaneous 2.4 GHz and 5 GHz

Data Modulation

802.11b: DSSS (DBPSK/DQPSK/CCK)
802.11a/g/n: OFDM (BPSK/QPSK/16QAM/64QAM)
802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)

Data Rates

802.11a: 6/9/12/24/36/48/54Mbps
802.11b: 1/2/5.5/11Mbps
802.11g: 6/9/12/24/36/48/54Mbps
802.11n (20MHz): MCS0-15, up to 144Mbps
802.11n (40MHz): MCS0-15, up to 300Mbps
802.11ac (80MHz): Nss2-MCS9, up to 867Mbps

Frequency Range

• 2.4GHz:
America -- FCC: 2.412~2.462GHz
Europe -- ETSI: 2.412~2.484GHz
• 5GHz:
America -- FCC: 5.180~5.240GHz, 5.725~5.850GHz
Europe -- ETSI: 5.180~5.240GHz

Operating Channels

• 2.4GHz:
America -- FCC: 1~11
Europe -- ETSI: 1~13
• 5GHz:
America -- FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
Europe -- ETSI: 36, 40, 44, 48

5GHz channel list will vary in different countries according to their regulations.

Channel Width

802.11n: 20/40MHz
802.11ac: 20/40/80MHz

RF Power/EIRP

• 2.4GHz:
11b: 17±1.5dBm
11g: 15±1.5dBm
11n: 14±1.5dBm
• 5GHz:
11a: 14±1.5dBm
11n: 14±1.5dBm
11ac: 12±1.5dBm

Receive Sensitivity

• 2.4GHz:
11b (11Mbps): -86±2dBm
11g (54Mbps): -72±2dBm
11n (20M) mode: -71±2dBm
11n (40M) mode: -69±2dBm
• 5GHz:
11a: -73±2dBm
11n (20M) mode: -71±2dBm
11n (40M) mode: -68±2dBm
11ac (80M) mode: -58±2dBm

Software Features

Wireless Modes

• AP
• Client
• Universal Repeater

Encryption Security

WEP (64-/128-bit)
WPA/WPA2
WPA-PSK/WPA2-PSK encryption

Wireless Security

Wireless MAC address filtering
Support WPS (Wi-Fi Protected Setup)

Max. Supported Clients

2.4GHz Wireless: 32
5GHz Wireless: 32

LAN

Built-in DHCP server supporting static IP address distributing

System Management

Web-based (HTTP) management interface
System Log

IEEE Standards

IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T

Other Protocols and Standards

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP

OS Compatibility

Windows 10
Windows 8
Windows 7
Windows Vista
Windows XP
Mac OS X 10.4 and higher

Standards Conformance

Temperature

Operating: 0 ~ 40°C
Storage: -20 ~ 60°C

Humidity

Operating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing)

Regulatory

FCC, CE, RoHS, WEEE

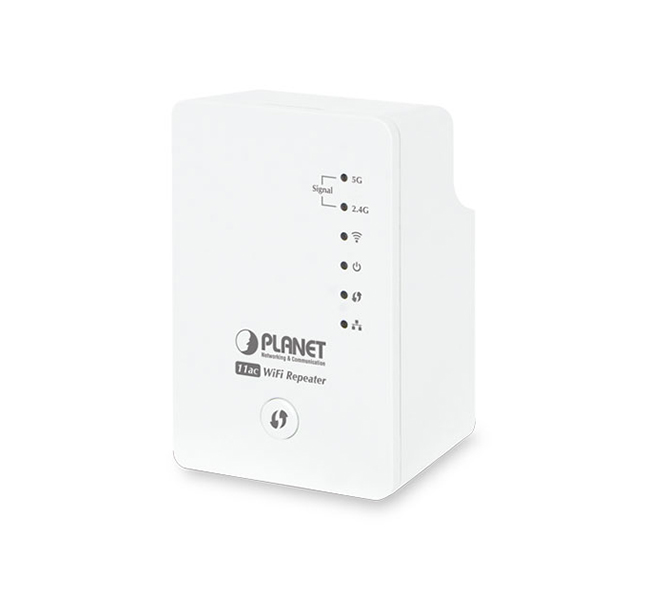

1200Mbps 802.11ac Dual Band Wall Plug WiFi Range Extender
