Sends one SDI source to four screens at the same time

This SDI splitter copies a single SDI video source to four outputs and shows the same picture on four monitors simultaneously. An equalizer IC on the input port and driver ICs on the output ports support long coaxial cable runs.

1 × SDIInput

4 × SDIOutput

270 Mbps – 2.97 GbpsData Rate Range

5 V DC / 2 AExternal Power Supply

1.2 WPower Consumption

0 °C ~ +70 °COperating Temperature

Key features

4outputs

The same picture on several screens

Distributes one SDI source to four monitors simultaneously.

200m

Long cable runs in SD mode

Carries the signal up to 200 meters in SD mode over RG59 coaxial cable, 120 meters in HD mode and 80 meters in 3G mode.

2.97Gbps

Wide data rate range

Passes SDI streams between 270 Mbps and 2.97 Gbps.

1080p

Support up to 3G resolutions

Carries SD 480i, 576i and 625i along with 720p, 1080i and 1080p formats.

1.2W

Low power draw

Draws 1.2 W from an external 5 V DC 2 A power supply.

INSTALLATION AND OPERATION

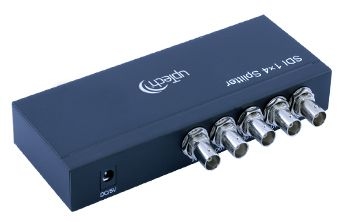

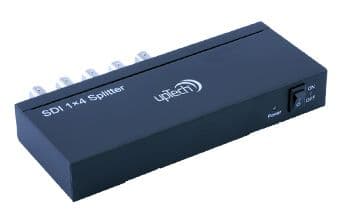

Compact housingThe 162 × 82 × 25 mm housing and 380 g weight fit desktop and rack-side installations.

Wide temperature rangeIt operates between 0 °C and +70 °C, and the storage temperature range runs from -10 °C to +80 °C.

Certified unitThe converter unit and the power supply carry FCC, CE and UL approvals.

Operation requires an external 5 V DC 2 A power supply.

General Specifications

Product Type

1x4 SDI Splitter

Input

1 × SDI

Output

4 × SDI

Function

Distributes a single SDI video signal to 4 monitors simultaneously

Cable Support

Equalizer IC on the input port and driver IC on the output ports support long coaxial cable runs on all inputs and outputs

Supported Video Resolutions

480i, 576i, 625i

HD 720p

@24/25/30/50/60 Hz

HD 1080i

@50/60 Hz

HD 1080p

@24/25/30 Hz

3G 1080p

@50/60 Hz

Color and Data

Color Space

RGB or YCbCr 4:4:4 sampled; YCbCr 4:2:2 or 4:2:0 sampled

Data Rate Range

270 Mbps ~ 2.97 Gbps

Deep Color Support

8 bit, 10 bit, 12 bit

Sends one SDI source to four screens at the same time

1 × SDIInput

4 × SDIOutput

270 Mbps – 2.97 GbpsData Rate Range

5 V DC / 2 AExternal Power Supply

1.2 WPower Consumption

0 °C ~ +70 °COperating Temperature

Key features

4outputs

The same picture on several screens

Distributes one SDI source to four monitors simultaneously.

200m

Long cable runs in SD mode

Carries the signal up to 200 meters in SD mode over RG59 coaxial cable, 120 meters in HD mode and 80 meters in 3G mode.

2.97Gbps

Wide data rate range

Passes SDI streams between 270 Mbps and 2.97 Gbps.

1080p

Support up to 3G resolutions

Carries SD 480i, 576i and 625i along with 720p, 1080i and 1080p formats.

1.2W

Low power draw

Draws 1.2 W from an external 5 V DC 2 A power supply.

INSTALLATION AND OPERATION

Compact housingThe 162 × 82 × 25 mm housing and 380 g weight fit desktop and rack-side installations.

Wide temperature rangeIt operates between 0 °C and +70 °C, and the storage temperature range runs from -10 °C to +80 °C.

Certified unitThe converter unit and the power supply carry FCC, CE and UL approvals.

Operation requires an external 5 V DC 2 A power supply.

General Specifications

Product Type

1x4 SDI Splitter

Input

1 × SDI

Output

4 × SDI

Function

Distributes a single SDI video signal to 4 monitors simultaneously

Cable Support

Equalizer IC on the input port and driver IC on the output ports support long coaxial cable runs on all inputs and outputs

Supported Video Resolutions

480i, 576i, 625i

HD 720p

@24/25/30/50/60 Hz

HD 1080i

@50/60 Hz

HD 1080p

@24/25/30 Hz

3G 1080p

@50/60 Hz

Color and Data

Color Space

RGB or YCbCr 4:4:4 sampled; YCbCr 4:2:2 or 4:2:0 sampled

Data Rate Range

270 Mbps ~ 2.97 Gbps

Deep Color Support

8 bit, 10 bit, 12 bit
