Planet

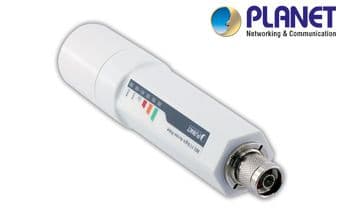

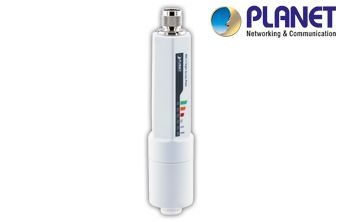

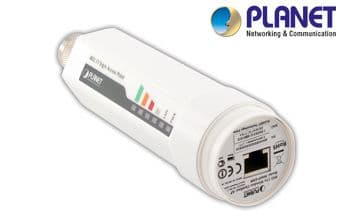

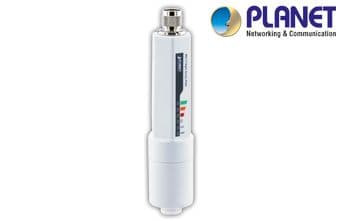

2.4GHz 802.11n Wireless Outdoor Access Point
Stock Code: WNAP-6306
| Hardware Specification | |
| Standard support |
IEEE 802.11b/g IEEE 802.11n IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control |
| Chipset | Ralink RT3050 |
| Memory |
16 Mbytes DDR SDRAM 4 Mbytes Flash |
| Interface |
Wireless IEEE 802.11b/g/n LAN: 1 x 10/100Base-TX, Auto-MDI/MDIX |
| Interface |
Wireless IEEE 802.11b/g/n LAN: 1 x 10/100Base-TX, Auto-MDI/MDIX |
| Antenna | Built-in N-Type (N-Male) Antenna Connector |
| Enclosure | IP65 waterproof case |
| PoE |
Passive PoE / 15V DC LAN RJ-45 Pin Assignment: PIN 4,5(+), PIN 7,8(-) |
| Dimension (D x H) | 46 x 205 mm |
| Weight | 192g |
| Wireless Interface Specification | |
| Frequency Band | 2.4~2.4835GHz |
| Modulation |
Transmission/Emission Type: DSSS / OFDM Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, QPSK, CCK |
| Data Rate |
802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps 802.11n (20MHz): up to 72Mbps 802.11n (40MHz): up to 150Mbps |
| Opt. Channel |
America/ FCC: 2.414~2.462GHz (11 Channels) Europe/ ETSI: 2.412~2.472GHz (13 Channels) Japan/ TELEC: 2.412~2.484GHz (14 Channels) |
| RF Output Power |
802.11b: 20 ± 1dBm 802.11g: 19 ± 1dBm 802.11n: 16 ± 1dBm |
| Receiver Sensitivity |
802.11b: -84dBm 802.11g: -68dBm 802.11n (20MHz): -65dBm 802.11n (40MHz): -62dBm |
| Media Access Control | CSMA/CA |
| Output Power Control | Range 1~100, default:100 |
| Power Requirements | 15V DC, 1A (switching) |
| Wireless Management Features | |
| Wireless Mode |
?AP ?Client ?WDS PtP ?WDS PtMP ?WDS Repeater (AP+WDS) ?Universal Repeater (AP+Client) |
| Channel Width | 20MHz / 40MHz |
| Encryption Security |
64/128-bits WEP WPA, WPA-PSK WPA2, WPA2-PSK |
| AP Isolation/WLAN Partition | Able to isolate each connected wireless client from each other to access mutually. |
| Wireless Security |
Wireless MAC address filtering WPS (WiFi Protected Setup ) Enable/Disable SSID Broadcast |
| B/G Protection Mode | A protection mechanism prevents collisions among 802.11b/g modes |
| Association List | Display current status of the wireless client associated with AP |
| Max. Wireless Client | 25 |
| Max. WDS AP | 4 |
| Software | |
| LAN |
Built-in DHCP server supporting static IP address distributing DHCP Reserve |
| Access Control | MAC filtering up to 20 MAC address |
| Max. Wired Client | 60 |
| Applications & Game | UPnP support |
| Management | Web UI, DHCP Client, WOL |
| Diagnostic tool | System Log |
| Environment & Certification | |
| Operation |
Temperature: -20~70 Degree C Humidity: 10~95% non-condensing |
| Storage |
Temperature: -30~80 Degree C Humidity: 5~95% non-condensing |
| Regulatory | CE / RoHS |
