Camera

Image Sensor

Panoramic: 1/2.8" STARVIS™ CMOS

Detail: 1/2.8" STARVIS™ CMOS

Pixel

Panoramic: 2 MP
Detail: 2 MP

Max. Resolution

Panoramic: 1920 (H) × 1080 (V)
Detail: 1920 (H) × 1080 (V)

ROM

8 GB

RAM

4 GB

Electronic Shutter Speed

Panoramic: 1/1 s–1/30,000 s
Detail: 1/1 s–1/30,000 s

Scanning Mode

Progressive

Min. Illumination Illumination

Panoramic:
Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
Detail:
Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

Panoramic (white light): 30 m (98.43 ft)
Detail (IR light): 100 m (328.08 ft)

Illuminator On/Off Control

Panorama: Manual; Auto; Off

Detail: Zoom Prio; Manual; Auto; Off

Illuminator Number

Panoramic: 4 white lights
Detail: 4 IR lights

Lens

Focal Length

Panoramic: 6 mm
Detail: 4.8 mm–120 mm

Max. Aperture

Panoramic: F1.6
Detail: F1.6–F3.5

Field of View

Panoramic: H: 53.7; V: 28.7; D: 61.8
Detail: H: 59.6°–4.8°; V: 35.4°–2.7°; D: 66.5°–5.5°

Optical Zoom

25x

Focus Control

Auto; semi-auto; manual

Close Focus Distance

Panoramic: 0.2 m (0.66 ft)
Detail: 0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control

Panoramic: Fixed
Detail: Auto

DORI Distance

Detect

Observe

Recognize

Identify

Panoramic:
88.3 m (289.70 ft)
Detail:
1,613.8 m (5,294.62 ft)

Panoramic:
35.3 m (115.81 ft)
Detail:
645.5 m (2,117.78 ft)

Panoramic:
17.7 m

(58.07 ft)
Detail:
322.8 m (1,059.06 ft)

Panoramic:
8.8 m

(28.87 ft)
Detail:
161.4 m (529.53 ft)

PTZ

Pan/Tilt Range

Panoramic:
Pan: 0° to 360° endless

Tilt: 0° to 30°
Detail:
Pan: 0° to 305°

Tilt: –10° to 90°

Manual Control Speed

Panoramic:
Pan: 0.1°/s–100°/s

Tilt: 0.1°/s–25°/s
Detail:
Pan: 0.1°/s–120°/s

Tilt: 0.1°/s–50°/s

Preset Speed

Panoramic:

Pan: 240°/s; Tilt: 60°/s

Detail:

Pan: 430°/s; Tilt: 240°/s

Preset

300

Tour

8 (up to 32 preset per tour)

Idle Motion

Preset; Tour; Scan

PTZ Protocol

DH-SD
Pelco-P/D (auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification

Smart Tracking

Yes

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1)

Streaming Capability

3 Streams

Resolution

Panoramic:
1080p (1920 × 1080); 960p (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Detail:
1080p (1920 × 1080); 960p (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Panoramic:
Main stream: 1080p/1.3M/720p (1–50/60 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)
Detail:
Main stream: 1080p/1.3M/720p (1–50/60 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 256 kbps–9472 kbps

H.265: 144 kbps–5632 kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

Panoramic:
120 dB
Detail:
120 dB

HLC

Yes

White Balance

Panoramic: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Yes

Digital Zoom

16x

Image Rotation

180°

S/N Ratio

Panorama: ≥55 dB

Detail: ≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729

Network

Ethernet Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP

Interoperability

ONVIF (Profile S&G&T); CGI

Streaming Method

Unicast; Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (256 GB)

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

Smart PSS; DSS; NVR

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

Audio Input

1 channel

Audio Output

1 channel

Alarm I/O

2/1

Audio I/O

1/1

Alarm Linkage

Capture; preset; tour; SD card record; trigger on-off value output; client electronic map; send email

Alarm Event

Video dynamic/occlusion detection; audio detection; network disconnection detection; IP conflict

detection; encoder state detection; memory card state

detection; memory space detection; abnormal power

supply detection

Power

Power Supply

36 VDC, 2.23 A (–5% to +10%)

HI-PoE

Power Consumption

Basic: 19 W

Max.: 31 W (illuminator + PTZ working)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤95%

Protection

IP67; TVS 8000 V lightning proof; surge protection

Structure

Product Dimensions

385 mm × Φ277 mm (15.16" × Φ10.91")

Net Weight

9 kg (19.84 lb)

Gross Weight

13.8 kg (30.42 lb)

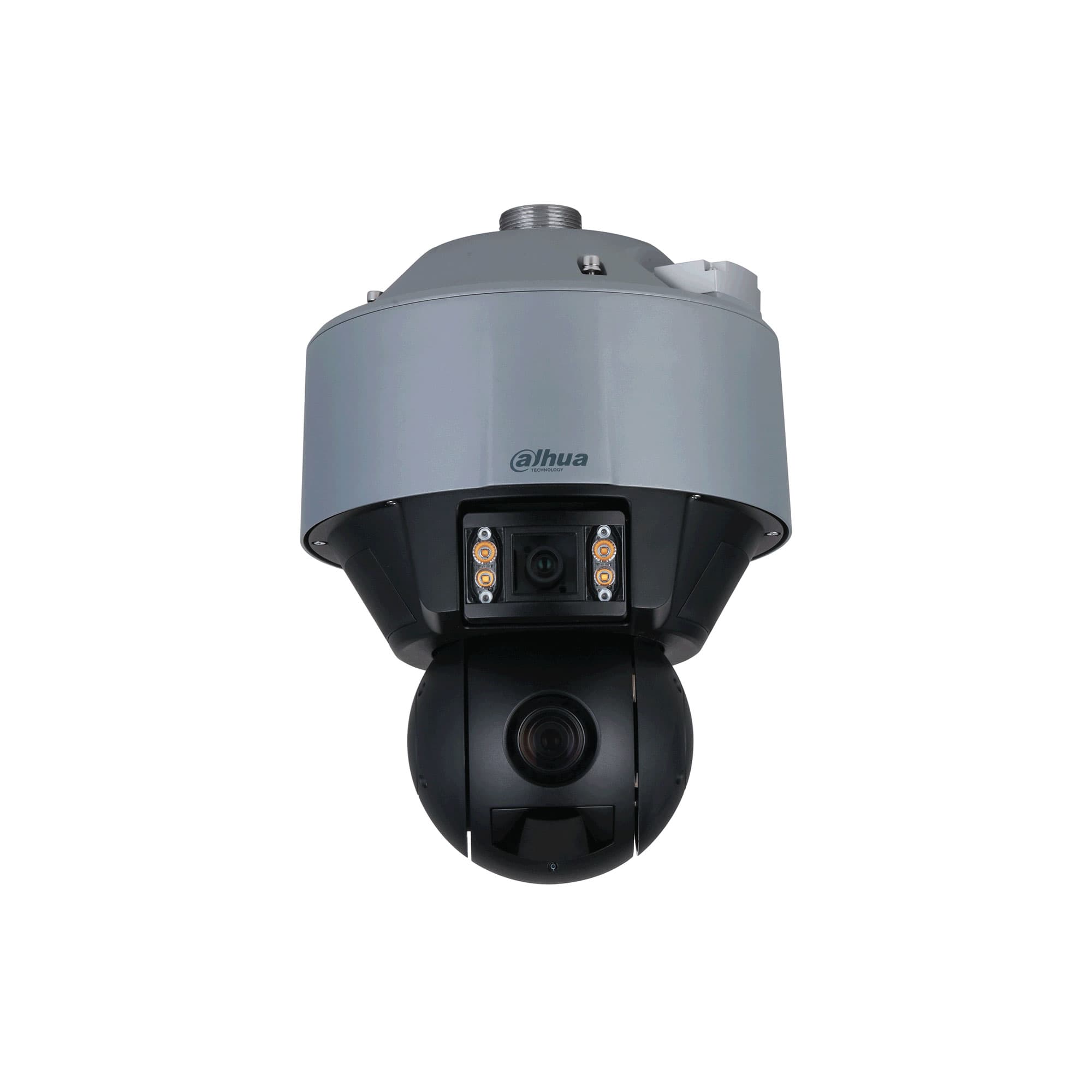

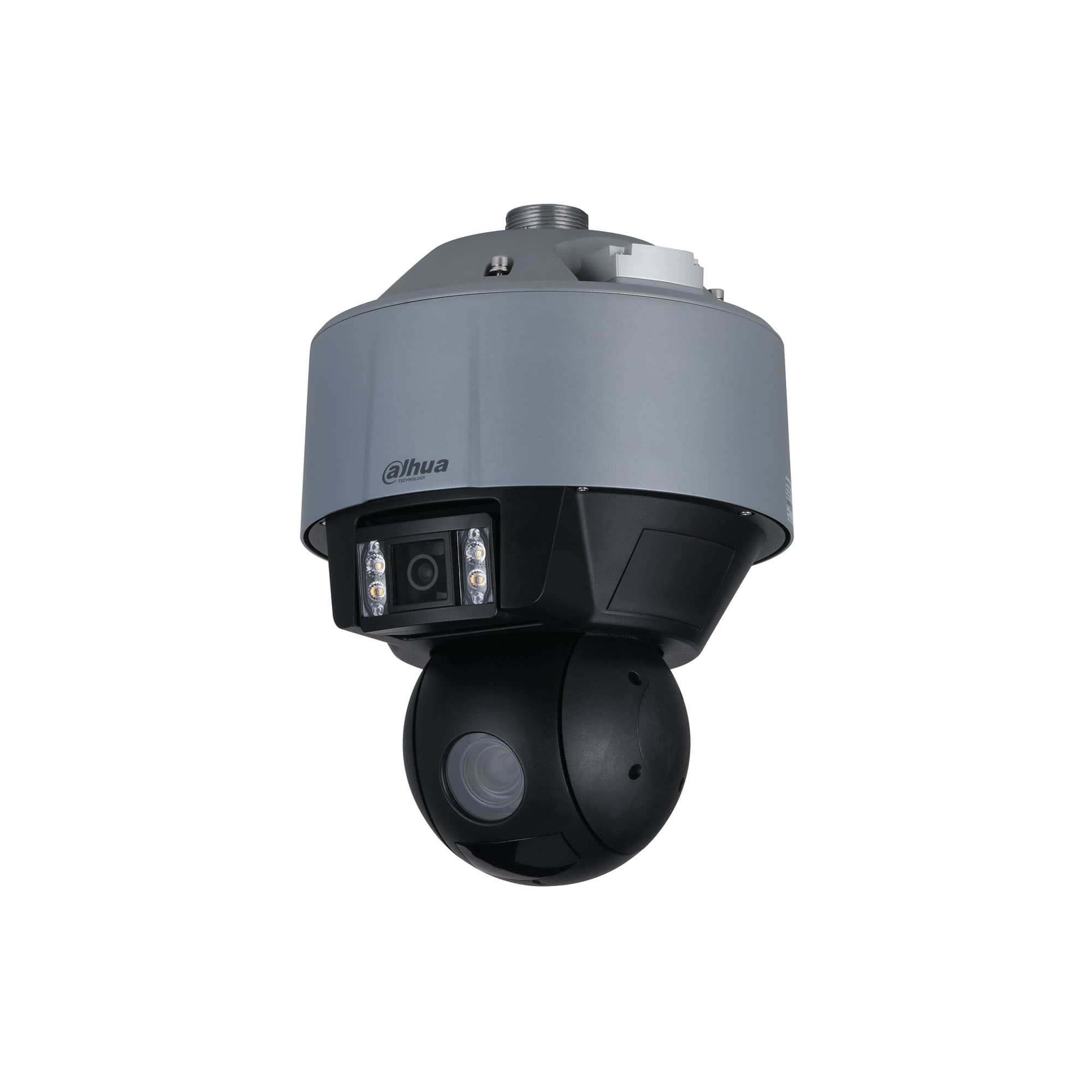

2MP Starlight IR WizMind Network Dual-PTZ Camera
