Combines AI analysis and a large-scale video archive in one chassis.

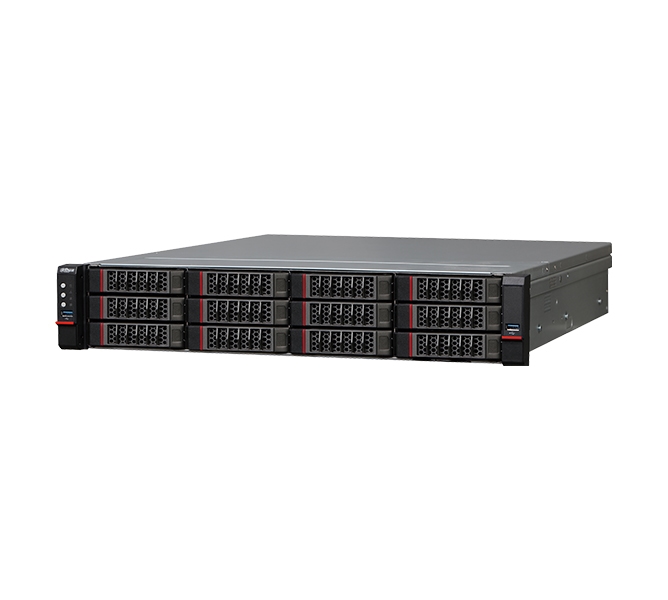

This 2U network video recording system manages up to 128 remote camera connections in a single chassis with 12 drive bays. It runs face detection and face recognition on 64 channels and plate recognition on 32 channels. It serves campus and city projects that reach a high camera count.

128 ChannelRemote camera connection

512 MbpsIncoming bandwidth

400 MbpsRecording bandwidth

12 HDDSATA 3.0 / SAS bays

16 TBCapacity per drive

RAID 0/1/5/6/10/50/60HDD array mode

Key features

64Channel

Face detection and recognition

Runs face analysis on sixty-four channels at the same time.

32Channel

Plate recognition

Reads vehicle plates on thirty-two channels.

16TB

Archive per drive

Each of the twelve bays accepts a SATA or SAS drive of up to 16 TB.

3HDMI

4K video output

Three HDMI and two VGA ports feed wall displays together.

36Channel

Local live view

Shows thirty-six channels at once on the local display.

DAILY USE

Web and local managementThe web interface and the local graphical interface reach the same settings.

Fault-tolerant archiveThe RAID setup keeps the recording alive when a single disk fails.

Broad camera compatibilityONVIF and RTSP support brings third-party cameras into the system.

System
Main Processor	Industry embedded micro-controller
Operating System	Embedded Linux
Operation Interface	WEB (PCAPP), Local GUI
Video Parameters
Video Compression	Smart H.265+/Smart H.264+/H.265/H.264
Audio Compression	G.711A/G.711U/PCM/G726
Supported Resolution	24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF
Decoding Capability	1-channel 24MP/2-channel 16MP/5-channel 12MP (20 fps)/6-channel 12MP (15 fps); 10-channel 1080P (60 fps)/20-channel 1080P (30 fps)/30-channel 720P (30 fps)
Smart
Face Detection	64-channel
Face Recognition	64-channel
ANPR	32-channel plate detection
Network
Remote Connection	128 channels
Incoming Bandwidth	512 Mbps
Recording Bandwidth	400 Mbps
Network Port	4 RJ-45 ports (10/100/1000 Mbps self-adaptive)
Third-party Camera	ONVIF, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung
Interoperability	SDK
Record & Playback
Local Live View	Max. 36-channel
Multi-channel Playback	Max. 16-channel
Storage
Internal HDD	12 HDDs, SATA 3.0/SAS, max. 16 TB per HDD
RAID	RAID 0/1/5/6/10/50/60
eSATA	1 port
SAS	1 SAS 2.0 port
Display
HDMI	3 ports (4K supported)
VGA	2 ports
Auxiliary Interface
USB	4 ports (2 × USB 3.0 front, 2 × USB 3.0 rear)
RS-232	1 port
RS-485	1 port
Alarm Input	16-channel
Alarm Output	8-channel
Audio Input	1-channel, RCA port
Audio Output	2-channel, RCA port
General
Power Supply	AC100–127 V/200–240 V, 50/60 Hz
Power Consumption	80 W (idle); 224 W (all HDDs connected)
Operating Temperature	0°C ~ +45°C
Operating Humidity	10% ~ 90%
Dimensions	447.6 mm × 604.3 mm × 87 mm
Net Weight	13.5 kg
Gross Weight	14 kg (30.86 lb)
Packaging Dimensions	654 mm × 834 mm × 201 mm (25.74" × 32.83" × 7.91")
Installation	Desktop/Rack
Certifications
Certifications	CE, FCC, UL 60950-1

System

Main Processor

Industry embedded micro-controller

Operating System

Embedded Linux

Operation Interface

WEB (PCAPP), Local GUI

Video Parameters

Video Compression

Smart H.265+/Smart H.264+/H.265/H.264

Audio Compression

G.711A/G.711U/PCM/G726

Supported Resolution

24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF

Decoding Capability

1-channel 24MP/2-channel 16MP/5-channel 12MP (20 fps)/6-channel 12MP (15 fps); 10-channel 1080P (60 fps)/20-channel 1080P (30 fps)/30-channel 720P (30 fps)

Smart

Face Detection

64-channel

Face Recognition

64-channel

ANPR

32-channel plate detection

Network

Remote Connection

128 channels

Incoming Bandwidth

512 Mbps

Recording Bandwidth

400 Mbps

Network Port

4 RJ-45 ports (10/100/1000 Mbps self-adaptive)

Third-party Camera

ONVIF, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung

Interoperability

SDK

Record & Playback

Local Live View

Max. 36-channel

Multi-channel Playback

Max. 16-channel

Storage

Internal HDD

12 HDDs, SATA 3.0/SAS, max. 16 TB per HDD

RAID

RAID 0/1/5/6/10/50/60

eSATA

1 port

SAS

1 SAS 2.0 port

Display

HDMI

3 ports (4K supported)

VGA

2 ports

Auxiliary Interface

USB

4 ports (2 × USB 3.0 front, 2 × USB 3.0 rear)

RS-232

1 port

RS-485

1 port

Alarm Input

16-channel

Alarm Output

8-channel

Audio Input

1-channel, RCA port

Audio Output

2-channel, RCA port

General

Power Supply

AC100–127 V/200–240 V, 50/60 Hz

Power Consumption

80 W (idle); 224 W (all HDDs connected)

Operating Temperature

0°C ~ +45°C

Operating Humidity

10% ~ 90%

Dimensions

447.6 mm × 604.3 mm × 87 mm

Net Weight

13.5 kg

Gross Weight

14 kg (30.86 lb)

Packaging Dimensions

654 mm × 834 mm × 201 mm (25.74" × 32.83" × 7.91")

Installation

Desktop/Rack

Certifications

CE, FCC, UL 60950-1
