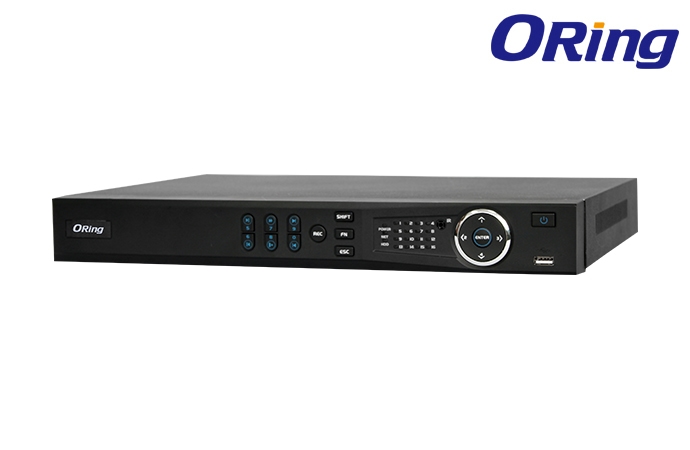

Brings analog and IP cameras into a single recorder

It auto-detects HDCVI, AHD, TVI and CVBS video inputs and records up to 32 camera channels in the same chassis. A 1U rack-mount tribrid recorder for installations that keep their existing coaxial infrastructure.

32Number of channels

2×8 TBMax. HDD capacity

H.264+/H.264Video compression

1920x1080HDMI/VGA display output

1 Gigabit portEthernet

Key features

Tribrid video inputIt auto-detects HDCVI, AHD, TVI and CVBS signals; the 32-channel CVBS input works at 1.0 Vp-p.

IP camera supportIt accepts 32 IP channels at up to 5MP.

Recording resolutionIt records 4MP Lite and 1080P on every channel and runs 720P recording at 30 fps.

Storage and backupThe 2 SATA drive bays reach 16 TB of capacity, and backups go out to a USB device or a DVD writer.

Remote accessThe 1 Gigabit Ethernet port carries up to 128 simultaneous connections and supports P2P.

Smart videoIt separates tripwire, intrusion, abandoned object and face detection events.

The power figure applies with no drive installed: up to 15 W on a DC12V/4A supply.

Technical Specifications

Video Compression

H.264+/H.264

Audio Compression

G.711/PCM

Video Standard

HDCVI/AHD/CVBS/TVI (Auto-detect)

Max. Recording Resolution

CH01-32: 4MP Lite/1080P

Max. HDCVI Recording Rate

4MP Lite@15fps
1080P@15fps
720P@30fps

CVBS Input

32CH, 1.0Vp-p, 75Ω

IP Camera Input

32
Up to 5MP

Max IP Input/Record

96Mbps/96Mbps

Audio In/Out

1/1, 2-way

Max HDD

2×8TB

Display

HDMI/VGA (1920x1080)
SPOT (configurable)

eSATA

USB

1 USB3.0, 1 USB2.0

DVD Burner

USB

Alarm In/Out

Ethernet

1 Gigabit port

Remote User Login

128

Dimensions

375×287×53mm
(14.8"×11.3"×2.1")

Power

DC12V/4A,
≤15W (Without HDD)

Intelligent Video

Tripwire, Intrusion, Abandoned/Missing, Face Detection

Star Features

P2P, Coaxial Audio/Alarm/Upgrade, 2D/3DNR
