Receives a loudspeaker line on the panel through a 4 contact female connector

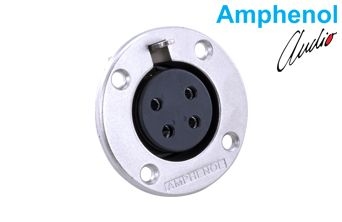

A chassis mount female loudspeaker connector. It receives the EP Series male cable connector on the panel surface of sound reinforcement systems. It carries 20 A and solders wire up to 12 AWG.

4Number of Contacts

20 ACurrent Carrying Capacity

12 AWGMax. Wire Gauge

IP40Protection Grade

1000Mating Cycles

Ø33.0 mmPanel Cut-out Diameter

Key features

20A

Current transfer through the panel

Carries current from the cabinet panel to the loudspeaker driver.

51.3mm

Flange diameter

The flange sits on the panel surface and covers the mounting hole.

33.0mm

Panel cut-out

Sets the hole size to cut in the panel.

12AWG

Solder termination

Solders the loudspeaker cable inside the cabinet.

1000cycles

Mating durability

Withstands the repeated connections of touring and studio use.

IP40rating

Nickel plated metal shell

The shell protects the contacts behind the panel.

IN DAILY USE

A fixed connection on the panelThe connector sits on the panel surface of the loudspeaker cabinet and takes the cable straight inside.

Machined contactsMachined contacts keep their contact through repeated plugging and unplugging.

Mates with the EP SeriesThe panel receives the EP Series male cable connector.

Usage AreasRadio and TV broadcasting·Professional studios·Sound reinforcement and PA·Musicians and DJs·Special applications

General Specifications

Product Type

Loudspeaker Connector

No. of Positions

Contact Type

Machined

Termination

Solder

Mounting Type

Chassis (Panel) Mount

Electrical Specifications

Current Carrying Capacity

20 A

Max. Wire Gauge

12 AWG

Mechanical Specifications

Housing Material

Diecast Zinc Alloy

Finish

Nickel

Flange Diameter

Ø51.3 mm

Panel Cut-out Diameter

Ø33.0 mm

Mating Cycle Durability

1000

Environmental & Compliance

IP Rating

IP40

Operating Temperature

-25°C ~ +75°C (-13°F ~ +167°F)

Flammability Rating

UL94V-0

Environmental Compliance

Complies with EU RoHS 2 Directive 2011/65/EU

Applications

Application Areas

Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications
