Stock Code: EP-4-14
| General | |
|---|---|
| Model | EP-4-14 |
| Brand | Amphenol |

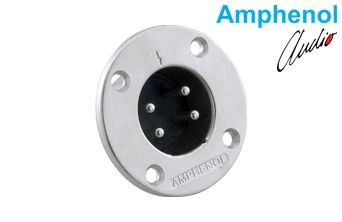

| Product Description | 4 Pole Male Metal Loudspeaker Connector, Chassis (Panel) Mount, Machined Contacts, Nickel Finish |
| No. of Positions | 4 |
| Electrical Specifications | |
| Current Carrying Capacity | 20 A |
| Termination | Solder |
| Max. Wire Gauge | 12 AWG |
| Mechanical Specifications and Materials | |
| Housing Material | Diecast Zinc Alloy |
| Finish | Nickel |
| Contact Type | Machined |
| Mating Cycle Durability | 1000 |
| Environmental Specifications | |
| IP Rating | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Flammability Rating | UL94V-0 |
| Environmental Compliance | Complies with EU RoHS 2 Directive 2011/65/EU |
| Dimensions and Mounting | |
| Flange Diameter | Ø51.3 mm |
| Overall Depth (Ref.) | 32 mm |
| Panel Cut-Out Diameter | Ø33.0 mm |
| Mounting Holes | 4 × Ø4.30 mm, 29.10 mm (typical) hole spacing |
| Insert Part No. | 156-4402-004 |
| Applications | |
| Primary Application Areas | Radio and TV broadcasting Professional studios Sound reinforcement and PA systems Musicians and DJs Special applications |
