Stock Code: IVC-2002
Ideal integration of Industrial Ethernet Extender

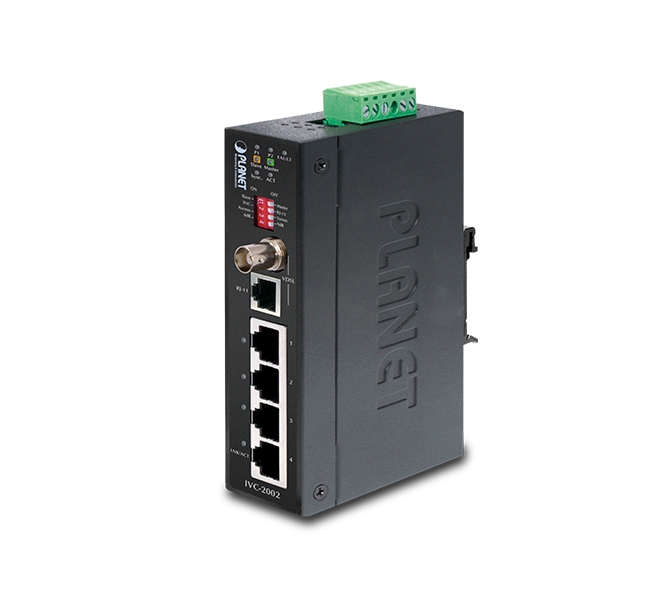

To fulfill the market demand, PLANET has released one amazing product named IVC-2002. The IVC-2002 is positioned as an Industrial Ethernet Extender. It has a switching architecture with 4 RJ-45 10/100Mbps Ethernet ports and one asymmetric or symmetric Ethernet over VDSL port – the VDSL port can be RJ-11 or BNC connector. Customers can use either BNC or RJ-11 for their network deployment and it offers the absolutely fastest data transmission speed over existing coaxial cable and telephone wire without the need of rewiring. Furthermore, the IVC-2002 is also compatible with PLANET VC-201A and VC-202A. Without spending extra cost, users can easily re-deploy a new local Internet in the apartment, hotel, campus and hospitality environment by applying the IVC-2002 on the original network structure.
Environmentally Hardened Design for Industrial Networks
The IVC-2002 provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curb side traffic control cabinets. The Industrial Ethernet Extender can operate in wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location. The IVC-2002 is packaged in a compact, IP-30 metal case that allows either DIN or panel mounting for efficient use of cabinet space. The Extender provides an integrated power supply with a wide range of voltages (12 ~ 48V DC) for worldwide operability or for dual-redundant, reversible polarity, 12 ~ 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Efficient Usage, Cost Effectiveness and Great Performance
The Ethernet over VDSL2 combines the Ethernet and VDSL technology to transmit the Ethernet format data by using VDSL signaling over the existing coaxial cable and telephone wire. Therefore, it is ideal for deploying network by using the existing coaxial cable and telephone wire to transmit data to the Internet at a minimum cost. The IVC-2002 can be adjusted to Master or Slave mode via a DIP switch. When the IVC-2002 (RJ-11) is connected with the other IVC-2002 device, the performance will be up to 99/63Mbps for asymmetric data rate within 200m and up to 28/2Mbps for asymmetric data rate at 1.4km. The IVC-2002 (BNC) performance is up to 99/65Mbps for asymmetric data rate within 200m and up to 31/4Mbps for asymmetric data rate at 2.4km. This capability is ideal for use as an Ethernet extender for your existing Ethernet network.
