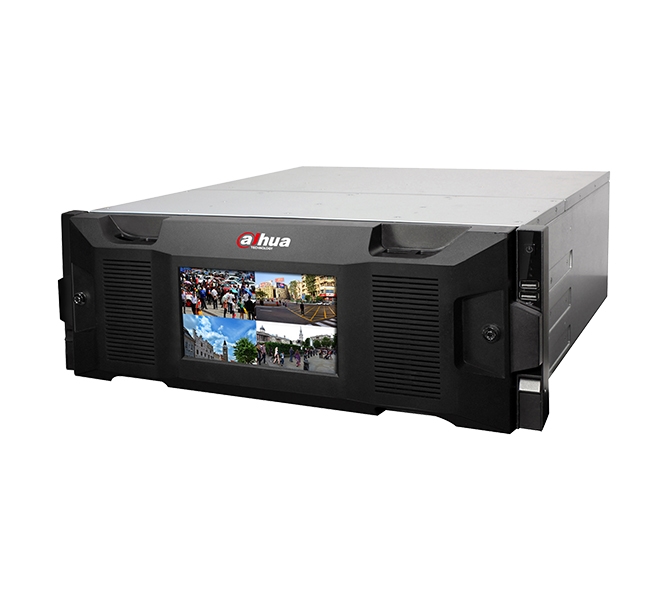

Stock Code: IVSS7024
| System | |
|---|---|
| Main Processor | Intel, Quad-core Processor |
| Memory | 16GB, up to 64GB |
| Operating System | Store-and-Forward |
| Artificial Intelligence (with AI camera) | |
| Face Recognition | Show face recognition result from AI camera |
| Face Detection | Show face detection result from AI camera |
| Metadata | Record structured data of gender, age, expression, glasses, moustache, mask information. |
| Trigger Events | Buzzer, snapshot, recording, etc. |
| Audio and Video | |
| IP Camera Input | 256 channel |
| Two-way Talk | 1 x 3.5 mm audio input, 1 x 3.5 mm audio output |
| Display | |
| Interface | 3 HDMI, 1 VGA |
| Resolution | HDMI1/2/3: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Decoding Capability | 24-ch @ 1080P (30fps) |
| Multi-screen Display | Up to 36 split for each screen |
| OSD | Camera title, time, motion detection, recording |
| Recording | |
| Bandwidth | 450 Mbps |
| Compression | H.265/H.264/MJPEG/MPEG4 |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P etc. |
| Record Mode | Schedule (continuous, event) |
| Video Detection and Alarm | |
| Trigger Events | Recording, snapshot, buzzer etc. |
| Video Detection | Motion Detection, MD Zones: 396 (22x18), Tampering |
| Alarm Input | 16 channel |
| Relay Output | 8 channel |
| Playback and Backup | |
| Sync Playback | Up to 16ch sync playback, 128Mbps playback bandwidth |
| Search Mode | Time/Date, Video Detection, Face and Exact Search (accurate to second) |
| Backup Mode | USB Device / Network |
| Third Party Support | |
| Third Party Support | AXIS, Panasonic, Sony etc. |
| Network | |
| Interface | 4 RJ-45 Ports (10/100/1000Mbps) |
| Optional Interface | 4 Giga Optical Fiber Interface |
| Network Port Mode | Independent Ethernet ports, load balance, fault tolerance, link aggregation |
| Network Function | HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (support Dahua IP camera, DVR, etc.), P2P |
| Interoperability | ONVIF 2.4, SDK |
| Storage | |
| Internal HDD | 24 SAS/SATA HDDs, up to 10TB capacity for each HDD, independent HDD bracket, hot-swap |
| HDD Mode | Single, Raid 0/1/5/6/10 (Enterprise level HDDs are recommended), Support Global HDD Hot-Spare |
| eSATA | 1 eSATA Port (Please contact technical engineer to confirm the compatible device) |
| SAS | 2 SAS3.0 Ports |
| Auxiliary Interface | |
| Front Cover | Support Hot-swap, 7-inch HD LCD (1920 x 1080, 1280 x 1024) |
| USB | 4 USB Ports (2 USB 2.0, 2 USB 3.0) |
| RS232 | 1 port, for PC Communication |
| RS485 | 1 port |
| Electrical | |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz, Hot-swap, Redundant |
| Power Consumption | <70W (Without HDD) |
| FAN | Dual ball bearing fans, Hot-swap |
| Environmental | |
| Operating Conditions | 0°C ~ +45°C (+32°F ~ +113°F), 86 ~ 106 kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 4U, 482.6mm x 543.4mm x 175mm (19" x 21.39" x 6.89") |
| Net Weight | 20kg (44.09lb) (without HDD) |
| Installation | Standard 19-inch Rack-mounted |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 |
