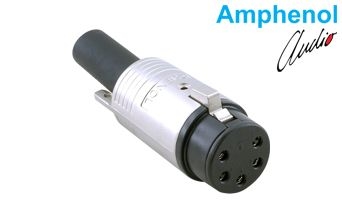

Terminates a loudspeaker cable with a 5 pole female end

A nickel plated EP series metal loudspeaker cable connector. Its machined contacts take a solder termination, accept conductors up to 12 AWG and carry 20 A.

5Pin Count

20 ACurrent carrying capacity

12 AWGMax. wire gauge

IP40Protection Grade

1000Mating cycles

NickelFinish

Key features

Cable endA 5 pole female connector terminates the loudspeaker cable.

Machined contactsMachined contacts carry the solder termination.

Current capacityIt carries 20 A and accepts conductors up to 12 AWG.

Nickel finishThe diecast zinc alloy housing carries a nickel finish and meets the UL94V-0 flammability rating.

Long service lifeIt keeps the connection through 1000 mating cycles.

Operating rangeIt works between -25°C and +75°C and carries an IP40 rating.

General Specifications
Part Number	EP-5-11P
Description	5 pole female metal loudspeaker cable connector, machined contacts, nickel finish
No. of Positions	5
Contact Type	Machined
Termination	Solder
Electrical Specifications
Current Carrying Capacity	20 A
Max. Wire Gauge	12 AWG
Mechanical Specifications
Housing Material	Diecast zinc alloy
Finish	Nickel
Mating Cycle Durability	1000
Environmental Specifications
IP Rating	IP40
Operating Temperature	-25°C ~ +75°C (-13°F ~ +167°F)
Flammability Rating	UL94V-0
Environmental Compliance	Complies with EU RoHS 2 Directive 2011/65/EU
Applications
Typical Applications	Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications
