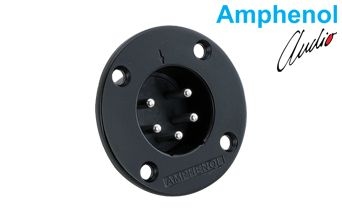

Stock Code: EP-5-14B
| General Specifications | |
|---|---|
| Part Number | EP-5-14B |
| Series | EP |
| Product Type | Loudspeaker connector, chassis (panel) mount |
| Gender | Male (pin) |
| No. of Positions | 5 |
| Contact Type | Machined |
| Termination | Solder |
| Max. Wire Gauge | 12 AWG |
| Housing Material | Diecast Zinc Alloy |
| Finish / Colour | Black |
| Electrical Specifications | |
| Current Carrying Capacity | 20 A |
| Mechanical and Environmental Specifications | |
| IP Rating | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Mating Cycle Durability | 1000 |
| Flammability Rating | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Dimensions | |
| Flange Diameter | Ø51.3 mm |
| Panel Cut-out Diameter | Ø33.0 mm |
| Mounting Holes | 4 × Ø4.30 mm |
| Mounting Hole Spacing | 29.10 mm × 29.10 mm (typical) |
| Applications | |
| Typical Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications |
