Name: Connector Metal Plug Str 6 Skt
Brand: Amphenol
SKU: EP-6-11P

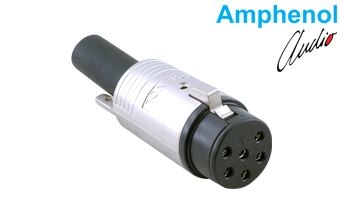

Terminates a loudspeaker cable with a 6 pole female end

An EP series metal loudspeaker cable connector. Its machined contacts take a solder termination, accept conductors up to 12 AWG and carry 20 A. The nickel plated diecast zinc housing measures 86 mm in overall length.

6Pin Count

20 ACurrent carrying capacity

12 AWGMax. wire gauge

IP40Protection Grade

1000Mating cycles

NickelFinish

Key features

Cable endThe overall length is 86 mm and the body length 66.5 mm.

Machined contacts6 machined contacts carry the solder termination.

Current capacityIt carries 20 A and accepts conductors up to 12 AWG.

Nickel finishThe diecast zinc alloy housing carries a nickel finish and meets the UL94V-0 flammability rating.

Long service lifeIt keeps the connection through 1000 mating cycles.

Operating rangeIt works between -25°C and +75°C and carries an IP40 rating.

General Specifications

Brand

Amphenol

Part Number

EP-6-11P

Series

EP Series

Product Type

Metal loudspeaker cable connector (female)

No. of Positions

Contact Type

Machined

Termination

Solder

Applications

Radio and TV broadcasting, professional studios, sound reinforcement and PA, musicians and DJs, special applications

Electrical Specifications

Current Carrying Capacity

20 A

Max. Wire Gauge

12 AWG

Mechanical Specifications

Housing Material

Diecast Zinc Alloy

Finish

Nickel

Mating Cycle Durability

1000

Overall Length

86 mm (REF)

Body Length

66.5 mm (REF)

EP/AP Insert P/N

156-4401-006

Environmental & Compliance

IP Rating

IP40

Operating Temperature

-25°C ~ +75°C (-13°F ~ +167°F)

Flammability Rating

UL94V-0

Environmental

Complies with EU RoHS 2 Directive 2011/65/EU
