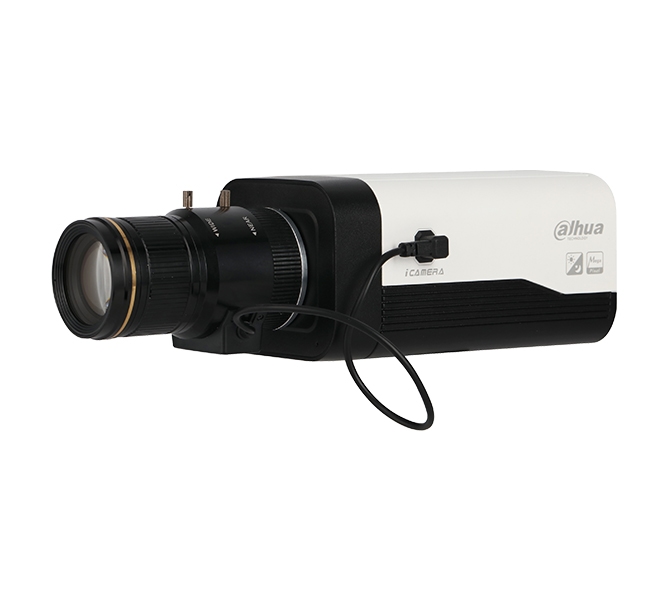

A professional box camera that works with a C/CS mount lens

This box camera carries a 1/1.8 inch 6 megapixel progressive scan CMOS sensor and produces 3072x2048 images. Auto back focus finds the focus again after a lens change.

6MPResolution

3072x2048Max. Resolution

H.265 / H.264Video Compression

128 GBSD Card

7 WPower Consumption

Key features

6MP

High resolution

A 3072x2048 frame keeps detail across a wide scene.

3streams

Triple-stream encoding

It sends the main, sub and third streams to the network at the same time.

0.005Lux

Low-light imaging

Recording continues at 0.005 lux illumination in color mode.

16x

Digital zoom

It enlarges a selected part of the scene up to 16 times.

Low consumption

PoE carries both power and data over a single cable.

IN DAILY USE

Lens chosen on siteThe C/CS mount accepts standard lenses, so angle and distance follow the installation.

Focus after installationAuto back focus finds the focus again whenever the lens changes.

Wired into the systemAlarm inputs and outputs, audio ports and the RS485 line connect the camera to the rest of the system.

Camera
Image Sensor	1/1.8" 6 Megapixel progressive scan CMOS
Effective Pixels	3072(H) x 2048(V)
RAM/ROM	1024MB/128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.005Lux/F1.2 (Color, 1/3s, 30IRE) 0.05Lux/F1.2 (Color, 1/30s, 30IRE) 0.003Lux/F1.2 (B/W, 1/3s, 30IRE) 0.03Lux/F1.2 (B/W, 1/30s, 30IRE)
S/N Ratio	More than 50dB
IR Distance	N/A
IR On/Off Control	N/A
IR LEDs	N/A
Lens
Lens Type	N/A
Mount Type	C/CS
Focal Length	N/A
Max. Aperture	N/A
Angle of View	N/A
Optical Zoom	N/A
Focus Control	N/A
Close Focus Distance	N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	N/A
Intelligence
Event Trigger	Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS	Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions	Face Detection, People Counting, Heat Map
Video
Compression	H.265/H.264/H.264B/H.264H/MJPEG (Sub Stream)
Smart Codec	Support H.265+/H.264+
Streaming Capability	3 Streams
Resolution	6M (3072x2048) / 5M (2560x1920) / 3M (2048x1536) / 3M (2304x1296) / 1080P (1920×1080) / 1.3M (1280x960) / 720P (1280x720) / D1 (704×576/704x480) / VGA (640x480) / CIF (352×288/342x240)
Frame Rate	Main Stream: 6M (1~25/30fps) Sub Stream: D1 (1~25/30fps) Third Stream: 1080P (1~25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 24~16384Kbps H.265: 14~9984Kbps
Day/Night	Auto (ICR) / Color / B/W
BLC Mode	BLC/HLC/DWDR/SSA
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	Off/On (4 zone rectangle)
Region of Interest	Off/On (4 zone)
Electronic Image Stabilization (EIS)	Support
Smart IR	N/A
Defog	Support
Digital Zoom	16x
Flip	0°/90°/180°/270°
Mirror	Off/On
Privacy Masking	Off/On (4 area rectangle)
Audio
Compression	G.711a / G.711Mu / AAC / G.726
Network
Ethernet	RJ-45 (100/1000Base-T)
Protocol	HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Access	10 users / 20 users
Edge Storage	NAS Local PC for instant recording Micro SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	iOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL: UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	1 port (BNC, 1Vp-p, 75Ω)
Audio Interface	2/1 channel In/Out, 1 Built-in Mic
RS485	1 port
Alarm	2 Channel In: 5mA 5VDC 2 Channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply	DC12V, AC24V, PoE (802.3af) (Class 0)
Power Consumption	<7W
Power Out	165mA 12VDC
Environmental
Operating Conditions	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Storage Conditions	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection	N/A
Vandal Resistance	N/A
Construction
Casing	Metal
Dimensions	161.6mm x 85.5mm x 74.0mm (6.36" x 3.37" x 2.91")
Net Weight	0.72 kg (1.59 lb)
Gross Weight	0.92 kg (2.03 lb)

Camera

Image Sensor

1/1.8" 6 Megapixel progressive scan CMOS

Effective Pixels

3072(H) x 2048(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.005Lux/F1.2 (Color, 1/3s, 30IRE)
0.05Lux/F1.2 (Color, 1/30s, 30IRE)
0.003Lux/F1.2 (B/W, 1/3s, 30IRE)
0.03Lux/F1.2 (B/W, 1/30s, 30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

N/A

Mount Type

C/CS

Focal Length

N/A

Max. Aperture

N/A

Angle of View

N/A

Optical Zoom

N/A

Focus Control

N/A

Close Focus Distance

N/A

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection, People Counting, Heat Map

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG (Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

6M (3072x2048) / 5M (2560x1920) / 3M (2048x1536) / 3M (2304x1296) / 1080P (1920×1080) / 1.3M (1280x960) / 720P (1280x720) / D1 (704×576/704x480) / VGA (640x480) / CIF (352×288/342x240)

Frame Rate

Main Stream: 6M (1~25/30fps)
Sub Stream: D1 (1~25/30fps)
Third Stream: 1080P (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~16384Kbps
H.265: 14~9984Kbps

Day/Night

Auto (ICR) / Color / B/W

BLC Mode

BLC/HLC/DWDR/SSA

White Balance

Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 zone rectangle)

Region of Interest

Off/On (4 zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

N/A

Defog

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 area rectangle)

Audio

Compression

G.711a / G.711Mu / AAC / G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 users / 20 users

Edge Storage

NAS
Local PC for instant recording
Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

CE (EN 60950:2000)
UL: UL60950-1
FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 port (BNC, 1Vp-p, 75Ω)

Audio Interface

2/1 channel In/Out, 1 Built-in Mic

RS485

1 port

Alarm

2 Channel In: 5mA 5VDC
2 Channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, AC24V, PoE (802.3af) (Class 0)

Power Consumption

<7W

Power Out

165mA 12VDC

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

161.6mm x 85.5mm x 74.0mm (6.36" x 3.37" x 2.91")

Net Weight

0.72 kg (1.59 lb)

Gross Weight

0.92 kg (2.03 lb)
