Brings a multi-camera setup together on one recorder.

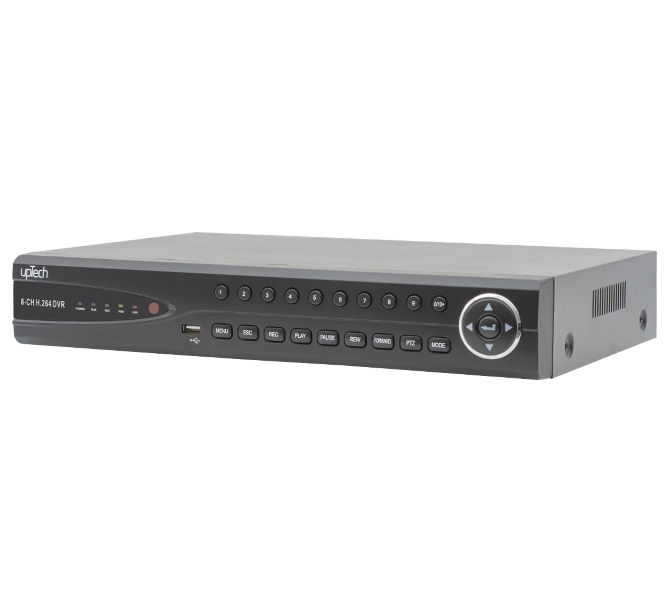

An 8-channel hybrid recorder that captures AHD, IP, Analog, CVI and TVI cameras at the same time. It holds video at 1080P HD quality and writes recordings to 2x6TB HDD capacity.

8Number of Channels

1080PRecording Resolution

2x6TBMax HDD Capacity

5-in-1Video Standards

HDMI, VGAVideo Outputs

Key features

8channels

Hybrid video and audio recording

Records 8 video channels and 4 audio channels at the same time.

1080PHD

Sharp image quality

Holds live view and recording at 1080P HD quality.

5in 1

AHD, IP, Analog, CVI and TVI

Covers five video standards in one body and takes different camera types on the same unit.

2x6TBHDD

Dual drive capacity

The two-drive layout records up to 2x6TB HDD capacity.

3G/4GWiFi

Remote connection

Works with 3G/4G WiFi support and accepts remote connections.

DAILY USE

Single-screen monitoringHDMI and VGA outputs drive the monitor directly, and every channel appears on the same screen.

Follow from a phoneThe VSS Mobile App brings the live view to the phone.

Camera aimingPTZ 485 control turns the camera from the recorder.

Technical Specifications

Max. HDD Capacity

2x6TB HDD

Video Standards (Hybrid)

5-in-1 (AHD-IP-Analog-CVI-TVI Support)

Display/Recording Resolution

1080P HD Quality

Channel Structure

8 Channel Video / 4 Channel Audio

Video Outputs

HDMI, VGA, and Video Out

Network Support

3G/4G WiFi Support

Camera Control

PTZ 485 Control

Mobile Application

VSS Mobile App
