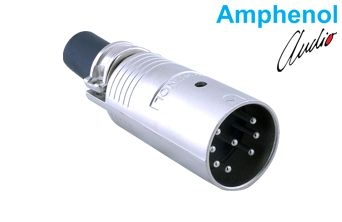

Terminates a loudspeaker cable with an 8 pole male end

A nickel plated EP series metal loudspeaker cable connector. Its machined contacts take a solder termination, accept conductors up to 14 AWG and carry 15 A.

8Pin Count

15 ACurrent carrying capacity

14 AWGMax. wire gauge

IP40Protection Grade

1000Mating cycles

NickelFinish

Key features

Eight pole end8 machined contacts terminate the loudspeaker cable at a single end.

Current capacityIt carries 15 A and accepts conductors up to 14 AWG.

Nickel finishThe diecast zinc alloy housing carries a nickel finish and meets the UL94V-0 flammability rating.

Overall lengthThe connector measures 86 mm in overall length.

Long service lifeIt keeps the connection through 1000 mating cycles.

Operating rangeIt works between -25°C and +75°C and carries an IP40 rating.

General Specifications
Product Description	8 pole male metal loudspeaker cable connector, machined contacts, nickel finish
Series	EP Series
No. of Positions	8
Contact Type	Machined
Electrical Specifications
Current Carrying Capacity	15 A
Termination	Solder
Max. Wire Gauge	14 AWG
Mechanical Specifications
Housing Material	Diecast Zinc Alloy
Finish	Nickel
Mating Cycle Durability	1000
Overall Length	86 mm (ref.)
Environmental & Compliance
IP Rating	IP40
Operating Temperature	-25°C ~ +75°C (-13°F ~ +167°F)
Flammability Rating	UL94V-0
Environmental	Complies with EU RoHS 2 Directive 2011/65/EU
Applications
Application Areas	Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications
