    Edge-Core

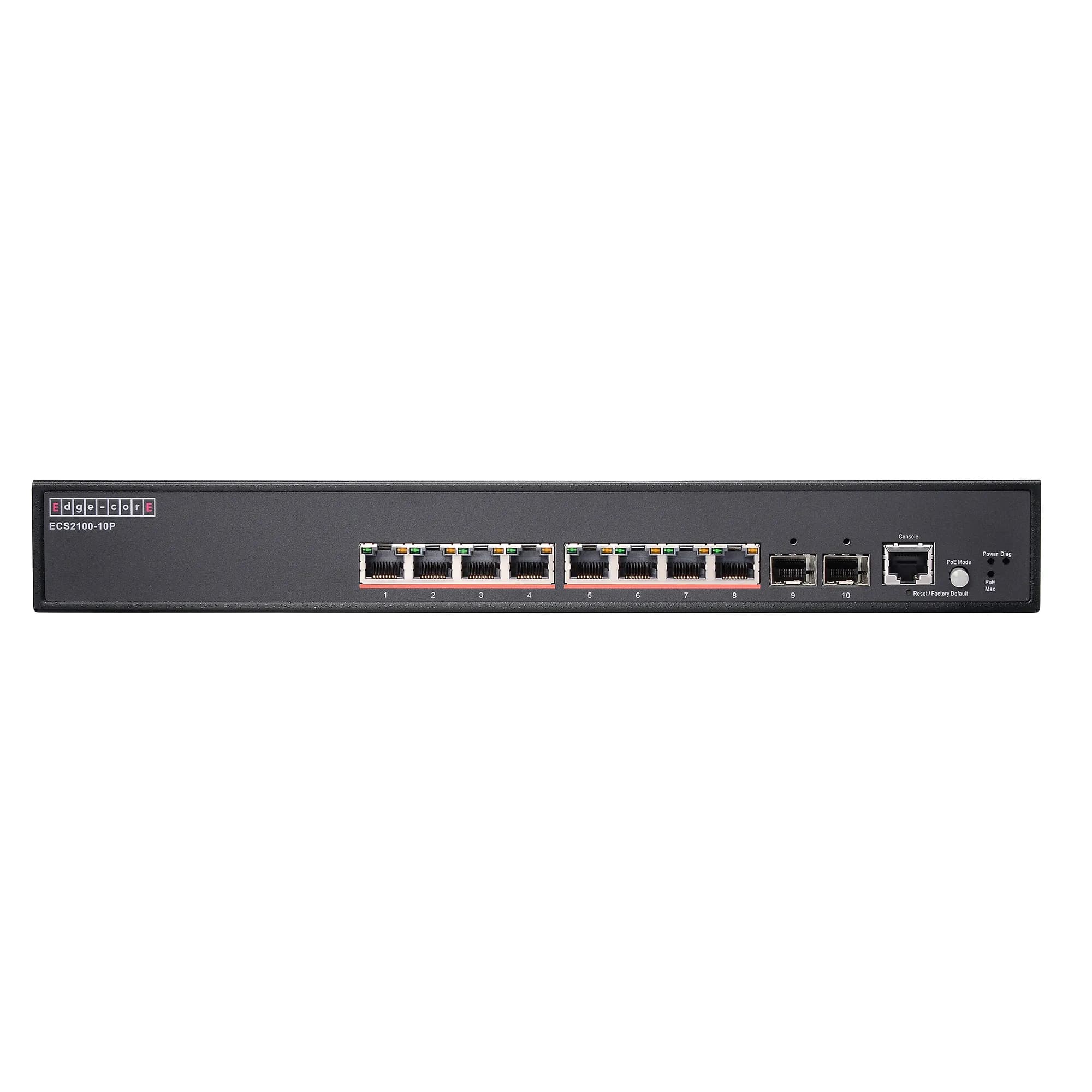

    8 ports 10/100/1000Base-T + 2G SFP uplink ports with 8 port PoE (125W)

    Stock Code: ECS2100-10P

    The ECS2100 Series is Edgecore’s new combination web-smart and L2 managed switch advantage. The ECS2100 Series takes web-smart cost-effective switches and provides plenty of management options, such as a console port on the L2 managed switches. With powerful soſtware and hardware features, the ECS2100 is designed for SMB and enterprise markets and provides a complete solution, including both non-PoE and PoE options.

    The ECS2100 Series offers complete PoE solutions from 65 W to 370 W. The ECS2100-10PE is the most compact (height: 2.65 cm) managed PoE switch design, a cost-effective PoE switch with powerful soſtware and security features. The switch can be mounted in many small spaces, on a wall or in a rack. The ECS2100-10P is a full-PoE fanless design switch, it supports up to 8 ports at 15.4W, or 4 ports at 30 W to meet the increasing power demands of users. The ECS2100-28PP is a PoE switch, it delivers a default 370 W of PoE power to support future IP cameras, IP telephones, or access points.

    The ECS2100 Series supports 8, 24, and 48 10/100/1000BASE-T ports, with each switch supporting 2 or 4 Gigabit SFP ports.

    As well as IPv4 and IPv6 features, the ECS2100 Series supports L3 static routing. The ECS2100 Series includes the best green-saving technologies (IEEE 802.3az and Green-Ethernet). Using the Energy Efficient Ethernet standard, the switch automatically decreases power usage when network traffic is low.





    • 2.65 cm high wall-mountable design (ECS2100-10PE)
    • Fanless design (ECS2100-10T/P/PE/28T)
    • Up to 370 W PoE (ECS2100-28PP)
    • Dual firmware/configuration
    • IPv4/IPv6
    • IEEE 802.3az
    • L3 static routing
    • Console port
    • PoE timer
    • Dashboard
    • Auto firmware upgrade
    • Cloud Management – ecCLOUD
