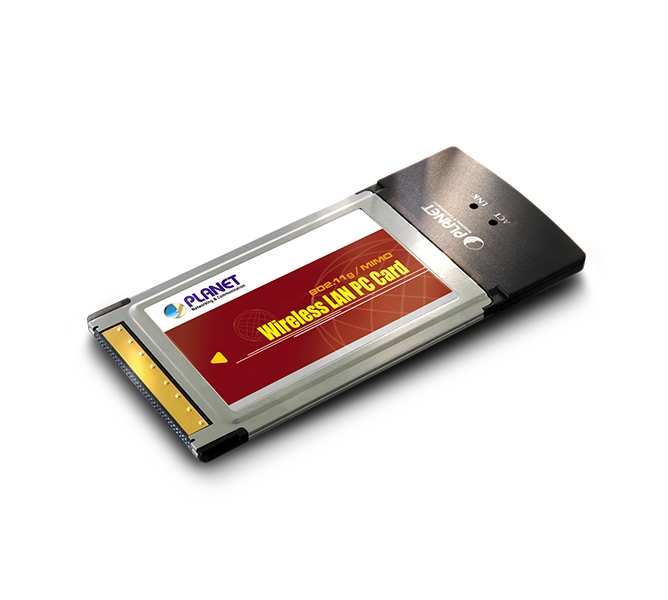

Adds MIMO wireless connectivity to a notebook

An 802.11g wireless card for a 32-bit CardBus slot. Its three-antenna MIMO design widens coverage and cuts dead spots, while WEP and WPA2 encryption protect the link.

54 Mbps802.11g data rate

32-bitCardBus interface

18 dBmOutput power

114 × 54 × 5 mmDimensions

40 gWeight

0 ~ 55°COperating Temperature

Key features

MIMO antennasCarries three internal antennas: two receive the signal and one transmits at high power.

802.11g rateSelects the rate automatically between 6 and 54 Mbps in 11g mode and between 1 and 11 Mbps in 11b mode.

EncryptionSupports 64/128-bit WEP, TKIP-based WPA and AES-based WPA2 with IEEE 802.1x.

Operating modesRuns in Infrastructure and Ad-Hoc modes and links up even without an access point.

Turbo ModeCompresses the data and shortens the gap between sends to raise the transfer rate.

CardBus interfaceFits notebooks that carry a 32-bit CardBus slot.

Product

Interface

Compliant with 32-bit CardBus standard

Standards Conformance

Compliant with 802.11b / 802.11g

Data Transfer Rate

11b: 1 / 2 / 5.5 / 11 Mbps (auto sensing)
11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps (auto sensing)

Operating Mode

Infrastructure Mode, Ad-Hoc Mode

Security

64/128-bit WEP Data Encryption, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x)

RF Modulation

11g: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
11b: BPSK, QPSK, CCK

Media Access Protocol

CSMA / CA

Output Power

18 dBm ± 2 dB

LED Indicators

ACT, LNK

Operating Systems

Windows 98 / Me / 2000 / XP and Server 2003

Temperature

Operating: 0 ~ 55°C
Storage: -20 ~ 70°C

Operating Humidity

Operating: 10% to 90% Non-Condensing
Storage: 5% to 95% Non-Condensing

Dimensions (L × W × H)

114 × 54 × 5 mm

Weight

40 g

Certifications

FCC, CE
