Spreads the VDSL2 line on the telephone wire across a wireless and wired home network.

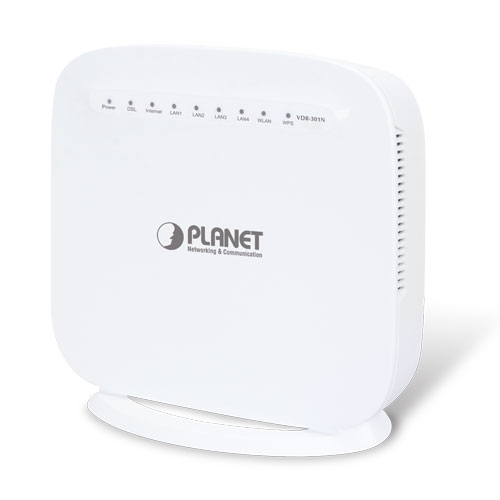

A VDSL2 modem, a router and an 802.11n access point meet in one chassis. The device reaches 100/100 Mbps symmetric speed over copper telephone lines, also runs on ADSL2+ networks, and feeds four Ethernet ports and the 2.4 GHz wireless network at the same time.

100/100 MbpsVDSL2 rate

300 Mbps802.11n wireless rate

4 portsEthernet LAN

30aVDSL2 profile

24 MbpsADSL2+ downstream rate

0 ~ 40 °COperating Temperature

Key features

100/100Mbps

Symmetric VDSL2 rate

The 30a profile and G.993.5 vectoring support use the copper line to its limit.

300Mbps

802.11n wireless rate

A 2T2R MIMO antenna layout widens the coverage area.

24Mbps

ADSL2+ fallback rate

Runs at 3.5 Mbps upstream where the network has yet to move to VDSL2.

4ports

10/100 Ethernet LAN

Gathers a PC, an IPTV receiver and a game console over cable.

4dBi

Internal antenna gain

Two antennas broadcast on the 2.4 GHz band.

Power draw

Runs from a 12 V DC adapter.

SETUP AND MANAGEMENT

Bridge or routerSwitches between the two modes and also serves behind an existing router.

Firewall and filteringThe NAT and SPI firewall plus MAC, IP and URL filters stop unwanted traffic.

Remote provisioningTR069 support lets the operator configure and monitor the device remotely.

ApplicationsHome users·SOHO offices·Small businesses

Hardware Specifications
Interfaces	LAN: 4 x 10/100BASE-TX, auto-negotiation, auto MDI/MDI-X RJ45 port WAN: 1 x RJ11, 1 x 1000BASE-T RJ45
Antenna	2.4GHz: 2 x 4dBi internal antennas
Button	1 x Power button 1 x Reset button 1 x WPS button 1 x WLAN button
LED Indicators	PWR, DSL, LAN1-4, WLAN, WPS
Dimensions (W x D x H)	155 x 60 x 152 mm
Weight	238 g
Power	12 V DC, 0.5 A
Power Consumption	6 W

Software Features
Internet Connection Type	Bridge Dynamic IP Static IP PPPoE PPPoA 1483 Routed
VDSL Features	ITU-T G.993.2 VDSL2 Supports 8a, 8b, 12a, 12b, 17a, 30a profile Supports G.vectoring Supports ATM and PTM Supports Annex A
ADSL Features	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1 (G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1 ITU-T G.992.3 (G.dmt.bis) ITU-T G.992.5 (Annex M ADSL2+ 24 Mbps downstream and 3.5 Mbps upstream)
Protocol Features	ATM Adaptation Layer Type 5 (AAL5) Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483) ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC 2516) IPoA (RFC 1577/2225) Bridged or routed Ethernet encapsulation VC and LLC based multiplexing OAM F4/F5 ATM QoS: UBR, CBR, VBR-rt, VBR-nrt Dynamic and static IP IP unnumbered
Advanced Features	Parental Control Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt Dynamic Host Configuration Protocol (DHCP), DHCP relay Network Address Translation (NAT) PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional) DNS relay, DDNS G.vectoring IGMP proxy, MLD proxy PPTP, L2TP, IPSec VPN passthrough Virtual server, port triggering, UPnP, DMZ WMM, bandwidth control (IP QoS)
Security	NAT firewall SPI firewall MAC/IP/URL filtering
Management	Device configuration, management and update Web-based GUI Command line interface via telnet SSL for TR069

Wireless Interface Specifications
Wireless Standard	IEEE 802.11b/g/n
Frequency Band	2.4GHz: 2.412~2.484GHz
Modulation Schemes	802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS 802.11b: CCK, DQPSK, DBPSK HT20 and HT40: 64QAM, 16QAM, QPSK, BPSK
Data Transmission Rates	802.11n (40MHz): up to 300 Mbps 802.11n (20MHz): up to 144.4 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range 802.11b: 11, 5.5, 2, 1 Mbps per channel, auto fallback for extended range
Transmit Power	<20dBm (EIRP)
Wireless Data Encryption	64/128-bit WEP, WPA-PSK, WPA2-PSK, 802.1x encryption, and WPS PBC

Environment Specifications
Temperature/Humidity	Operating: 0°C ~ +40°C, 10% ~ 90% (non-condensing) Storage: -20°C ~ +70°C, 5% ~ 90% (non-condensing)
Certification	CE

Hardware Specifications

Interfaces

LAN: 4 x 10/100BASE-TX, auto-negotiation, auto MDI/MDI-X RJ45 port
WAN: 1 x RJ11, 1 x 1000BASE-T RJ45

Antenna

2.4GHz: 2 x 4dBi internal antennas

Button

1 x Power button
1 x Reset button
1 x WPS button
1 x WLAN button

LED Indicators

PWR, DSL, LAN1-4, WLAN, WPS

Dimensions (W x D x H)

155 x 60 x 152 mm

Weight

238 g

Power

12 V DC, 0.5 A

Power Consumption

6 W

Software Features

Internet Connection Type

Bridge
Dynamic IP
Static IP
PPPoE
PPPoA
1483 Routed

VDSL Features

ITU-T G.993.2 VDSL2
Supports 8a, 8b, 12a, 12b, 17a, 30a profile
Supports G.vectoring
Supports ATM and PTM
Supports Annex A

ADSL Features

Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
ITU-T G.992.3 (G.dmt.bis)
ITU-T G.992.5 (Annex M ADSL2+ 24 Mbps downstream and 3.5 Mbps upstream)

Protocol Features

ATM Adaptation Layer Type 5 (AAL5)
Multiple Protocol over AAL5 (RFC 2684, formerly RFC 1483)
ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC 2516)
IPoA (RFC 1577/2225)
Bridged or routed Ethernet encapsulation
VC and LLC based multiplexing
OAM F4/F5
ATM QoS: UBR, CBR, VBR-rt, VBR-nrt
Dynamic and static IP
IP unnumbered

Advanced Features

Parental Control
Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
Dynamic Host Configuration Protocol (DHCP), DHCP relay
Network Address Translation (NAT)
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional)
DNS relay, DDNS
G.vectoring
IGMP proxy, MLD proxy
PPTP, L2TP, IPSec VPN passthrough
Virtual server, port triggering, UPnP, DMZ
WMM, bandwidth control (IP QoS)

Security

NAT firewall
SPI firewall
MAC/IP/URL filtering

Management

Device configuration, management and update
Web-based GUI
Command line interface via telnet
SSL for TR069

Wireless Interface Specifications

Wireless Standard

IEEE 802.11b/g/n

Frequency Band

2.4GHz: 2.412~2.484GHz

Modulation Schemes

802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
802.11b: CCK, DQPSK, DBPSK
HT20 and HT40: 64QAM, 16QAM, QPSK, BPSK

Data Transmission Rates

802.11n (40MHz):
up to 300 Mbps
802.11n (20MHz):
up to 144.4 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range
802.11b:
11, 5.5, 2, 1 Mbps per channel, auto fallback for extended range

Transmit Power

<20dBm (EIRP)

Wireless Data Encryption

64/128-bit WEP, WPA-PSK, WPA2-PSK, 802.1x encryption, and WPS PBC

Environment Specifications

Temperature/Humidity

Operating: 0°C ~ +40°C, 10% ~ 90% (non-condensing)
Storage: -20°C ~ +70°C, 5% ~ 90% (non-condensing)

Certification
