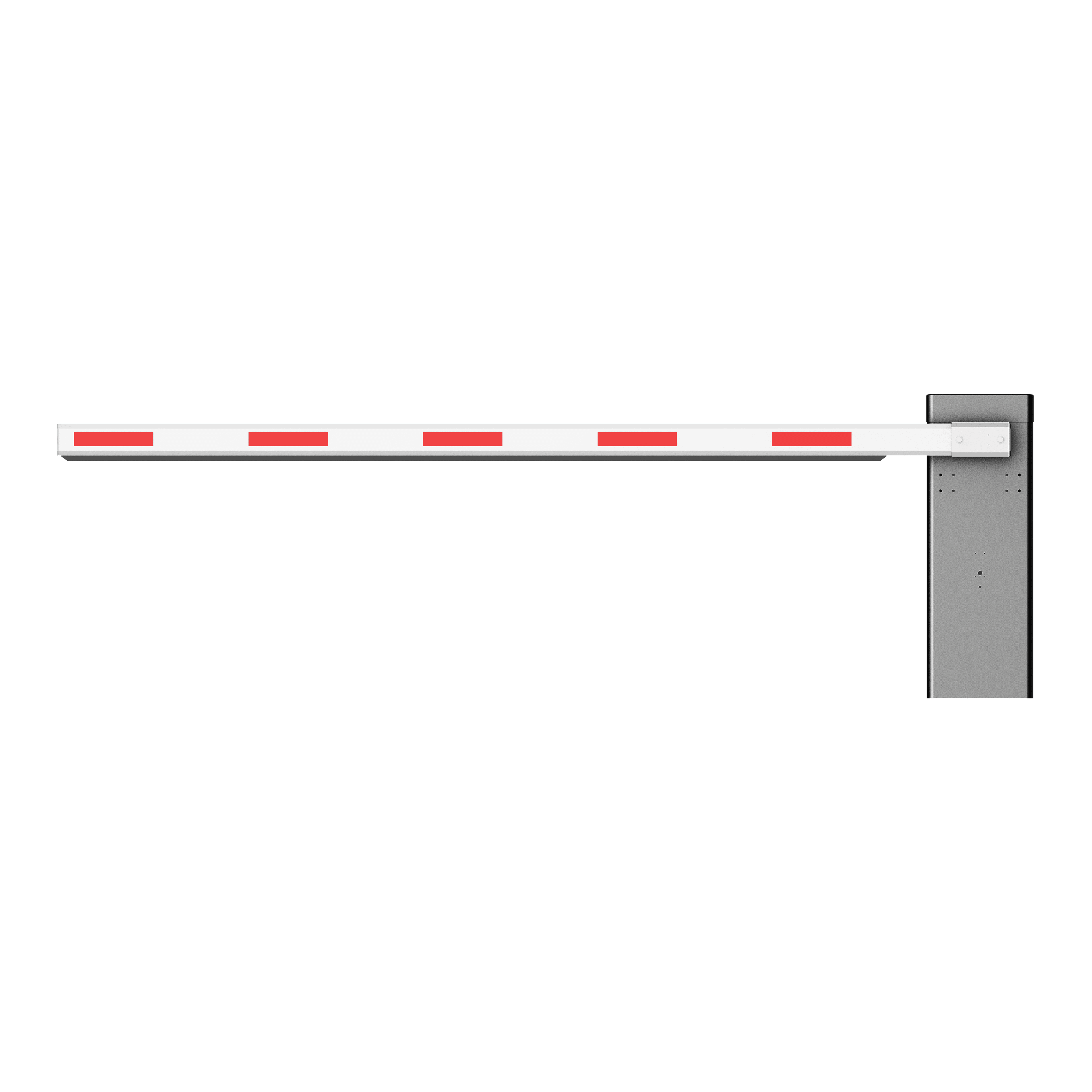

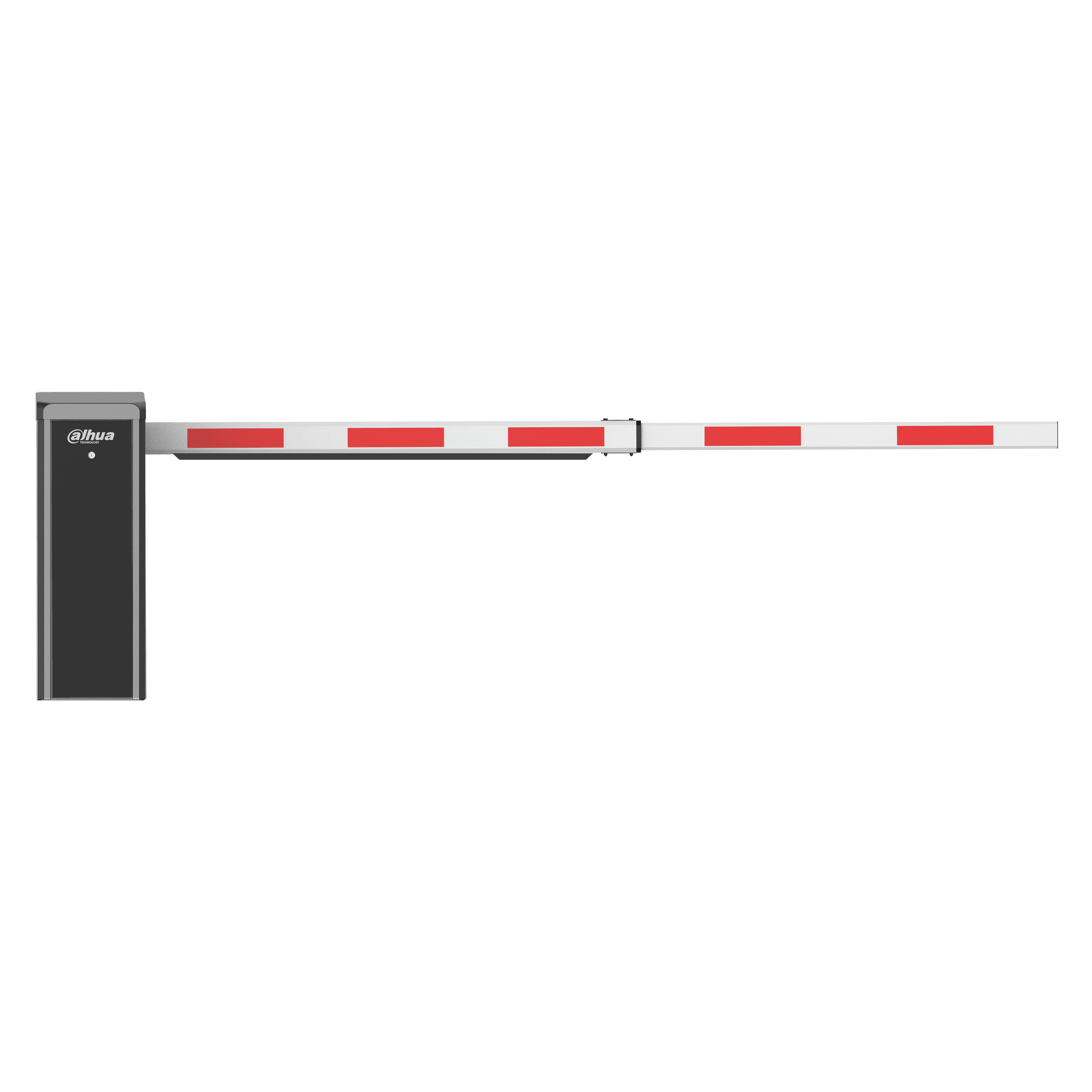

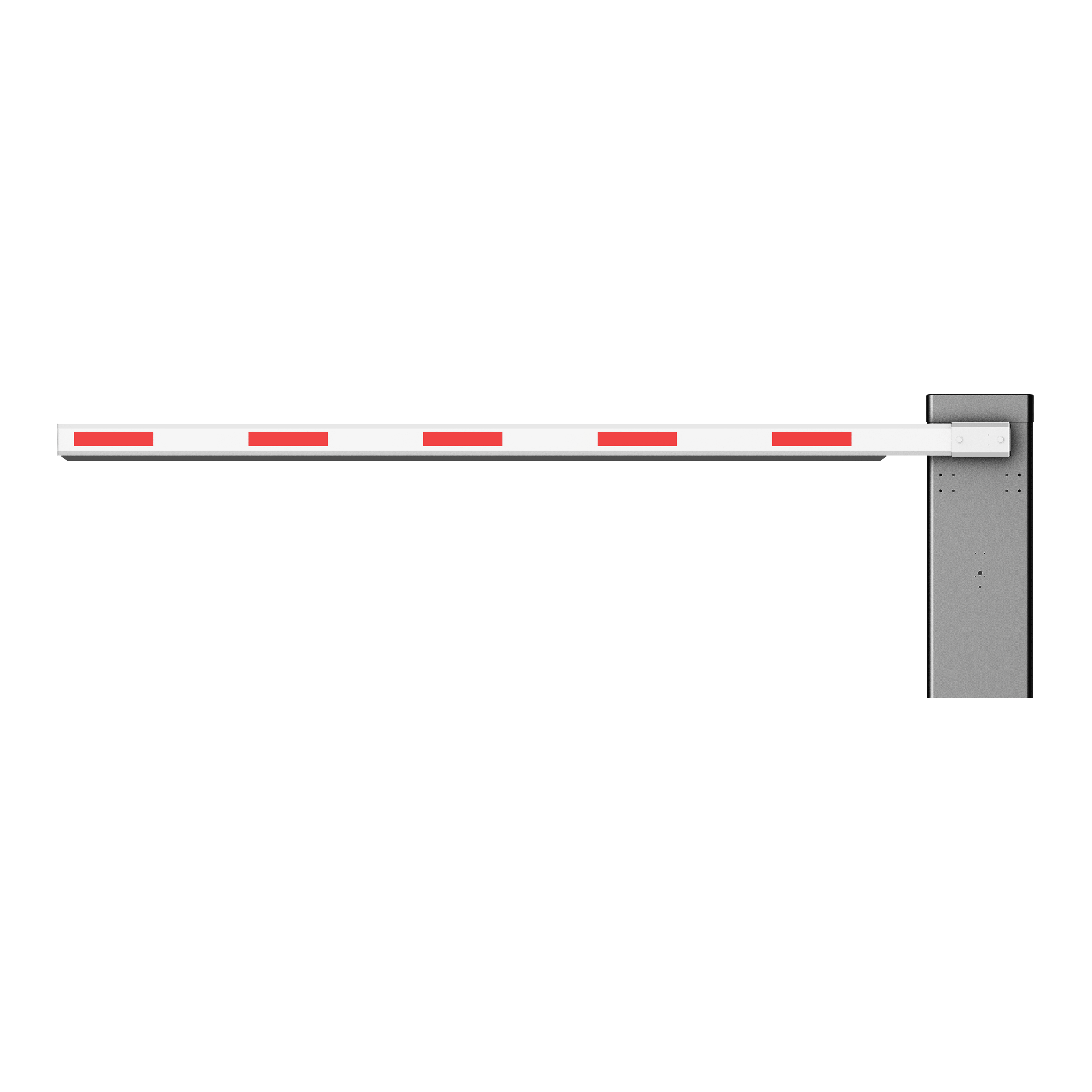

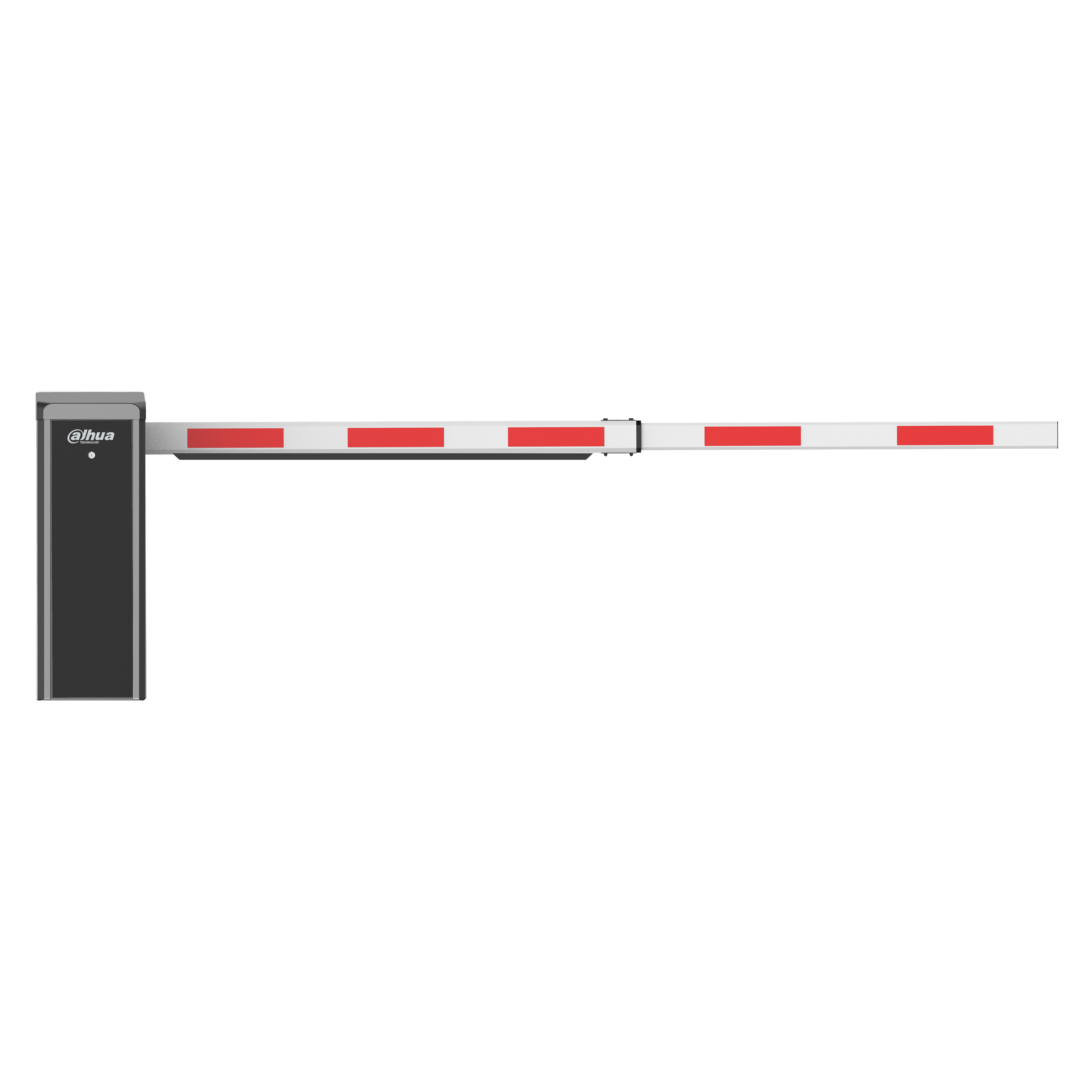

Barrier (Straight arm /Telescopic arm/Folding arm/Fence arm)
Dahua

Barrier (Straight arm /Telescopic arm/Folding arm/Fence arm)

Stock Code: IPMECD-1052

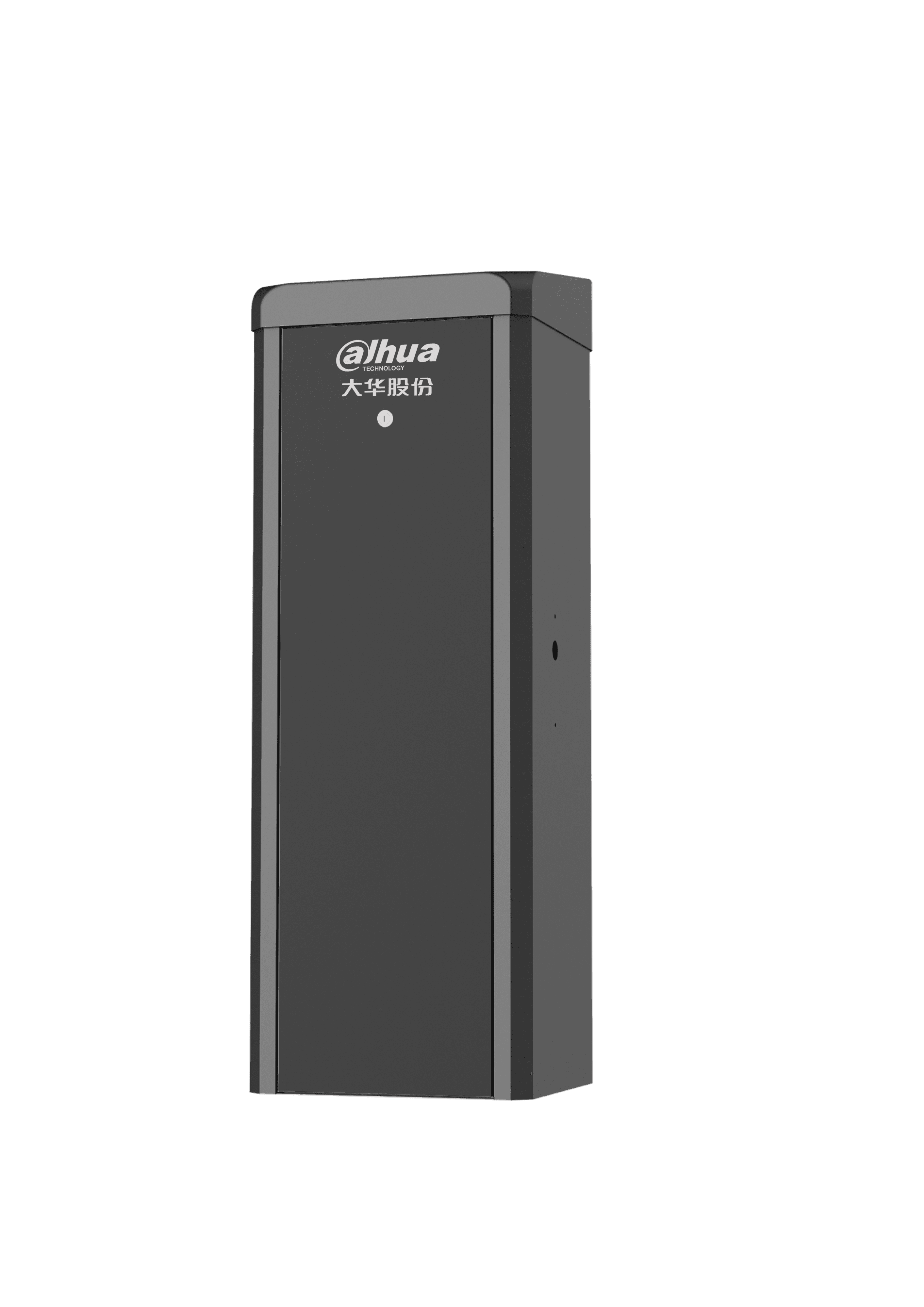

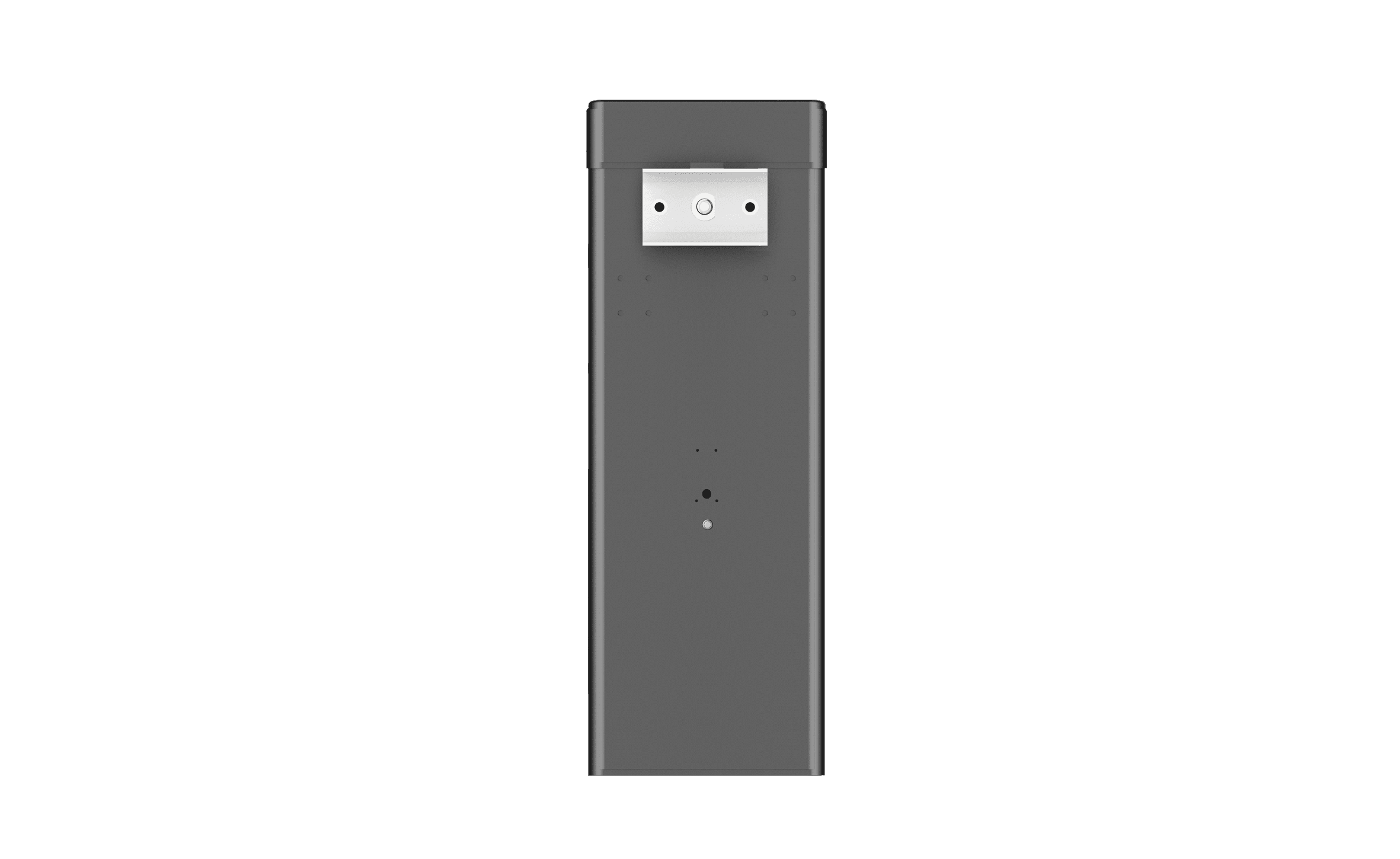

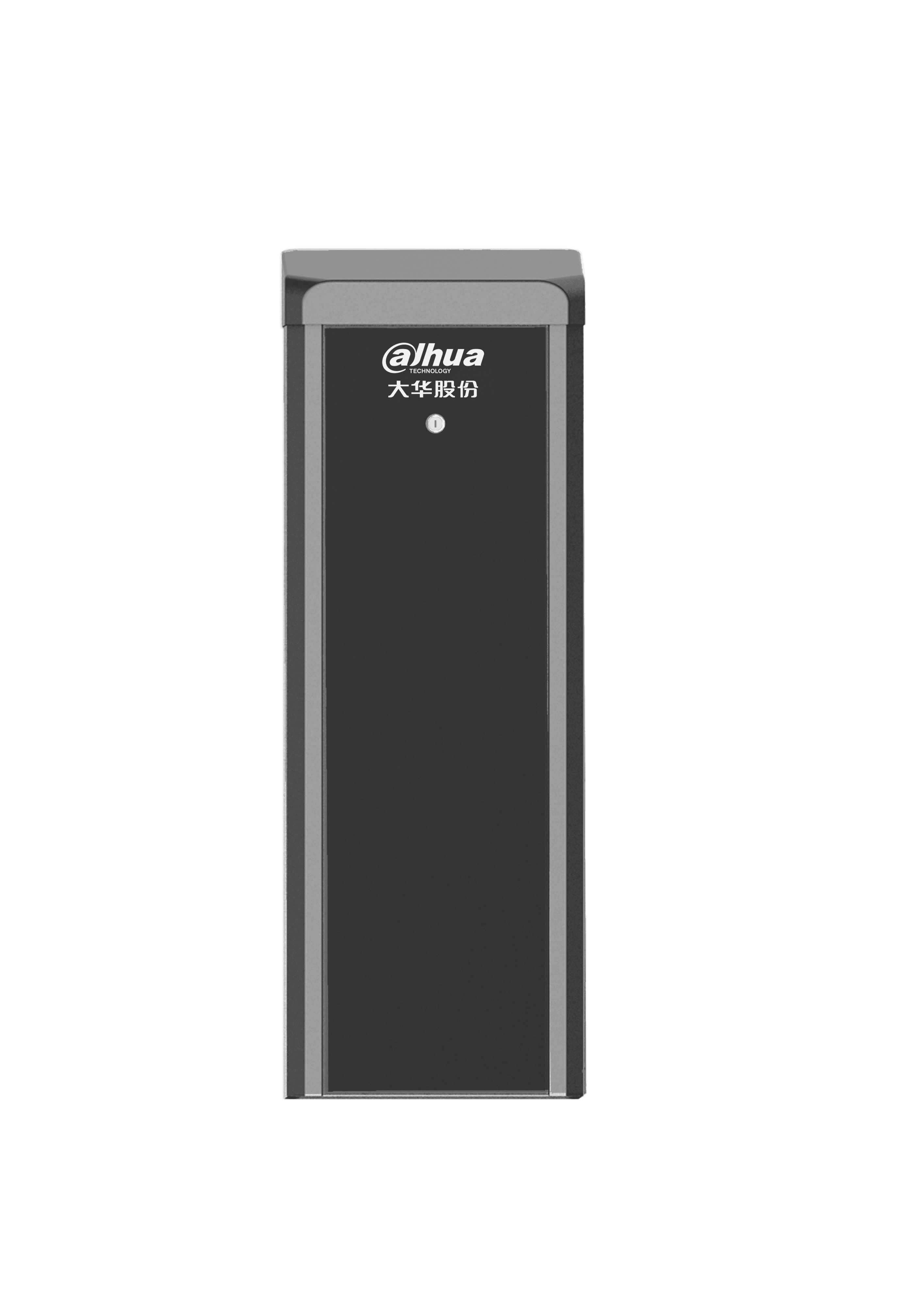

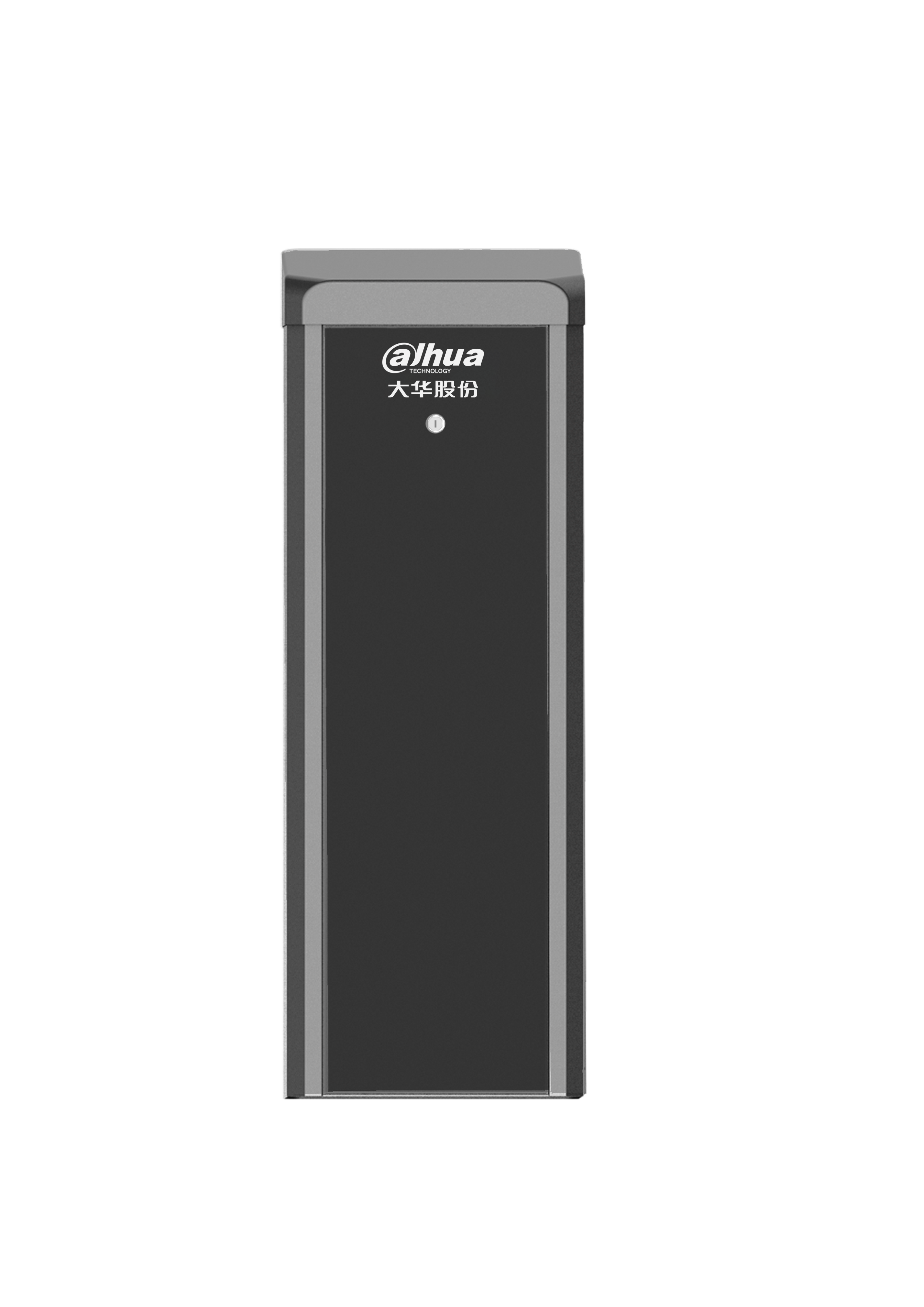

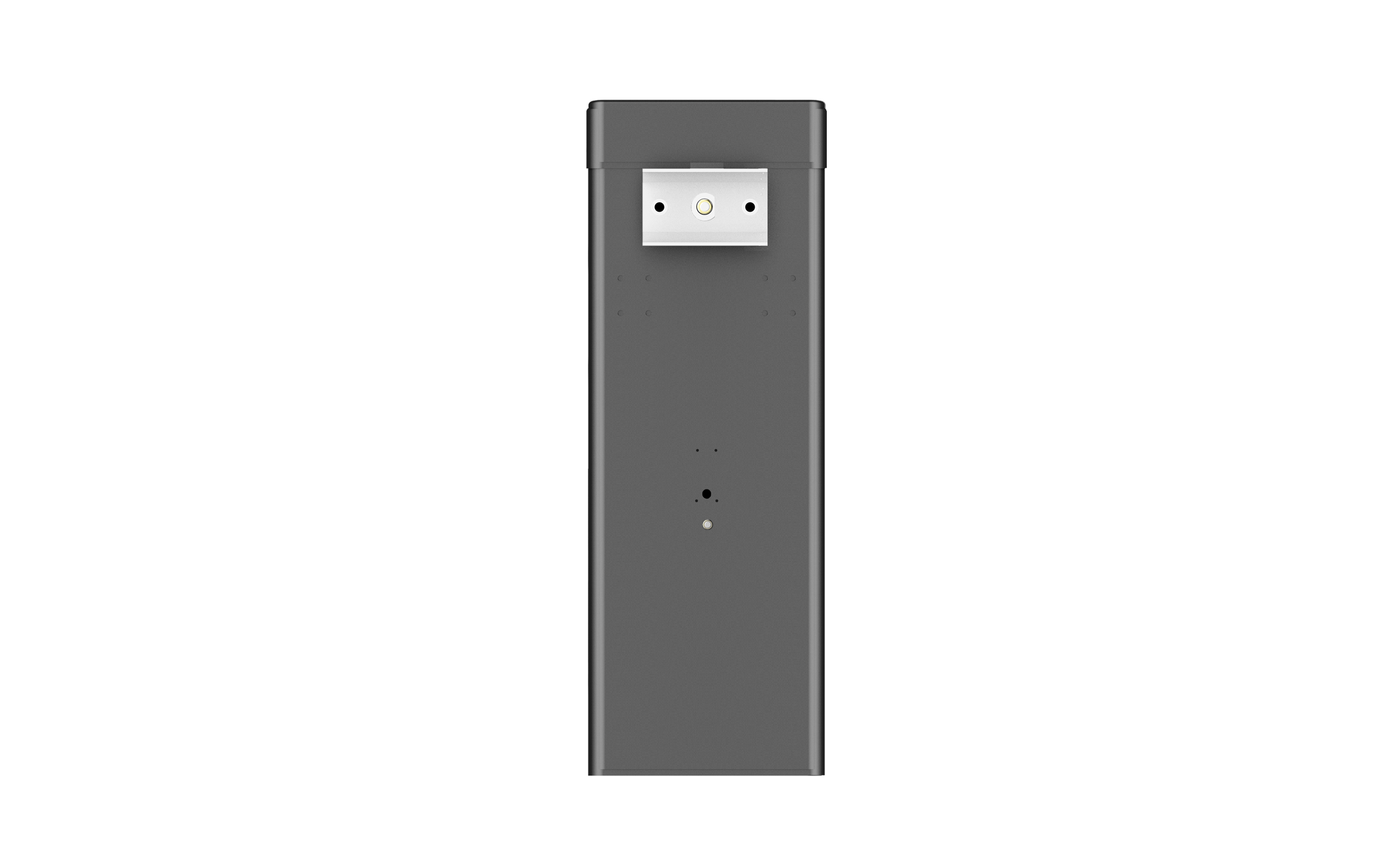

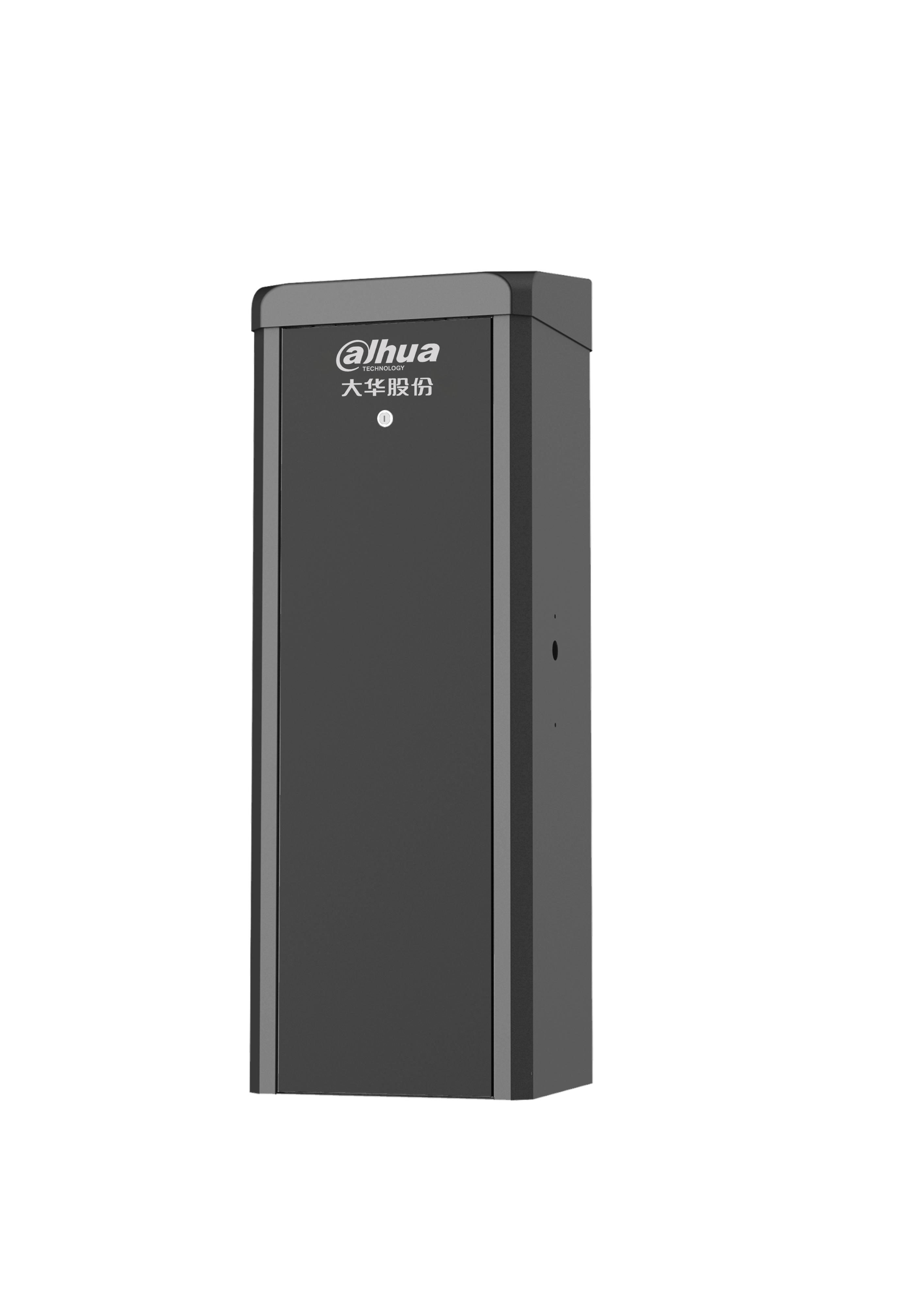

> Comes with a metal sheet housing, and an anti-rust case that was treated with electrostatic spray.

> 24 VDC brushless motor that is quiet, highly secure, low power consumption, stable and efficient.

> The speed and position at which the barrier rises and falls is adjustable.

Digital screen that displays the error code and operation status of the device.

> Supports external radar, loop, and the IR anti-smashing function. It also has a built-in 12 VDC output for powering the external radar.

> Automatically rises when the barrier arm makes contact with an object.

Supports manually rising the barrier after a power failure.

With rolling code technology, the device is highly secure and supports remote control at a maximum distance of 50 m (164 ft).

> Enters fleet mode by remote control to allow multiple vehicles to pass.

Counts the number of times the barrier rises and falls.

Supports configuring the time and speed for delaying the descent of the barrier.

> The spring can withstand 800,000 uses.

Operating temperature: –35 °C to +65 °C (–31 °F to +149 °F).

Operating humidity: 10%–90%.

External voltage: 220 VAC ± 10% or 110–120 VAC (it can be changed with the DIP switch).

> Operating voltage: 24 VDC.

IP54 rated.
