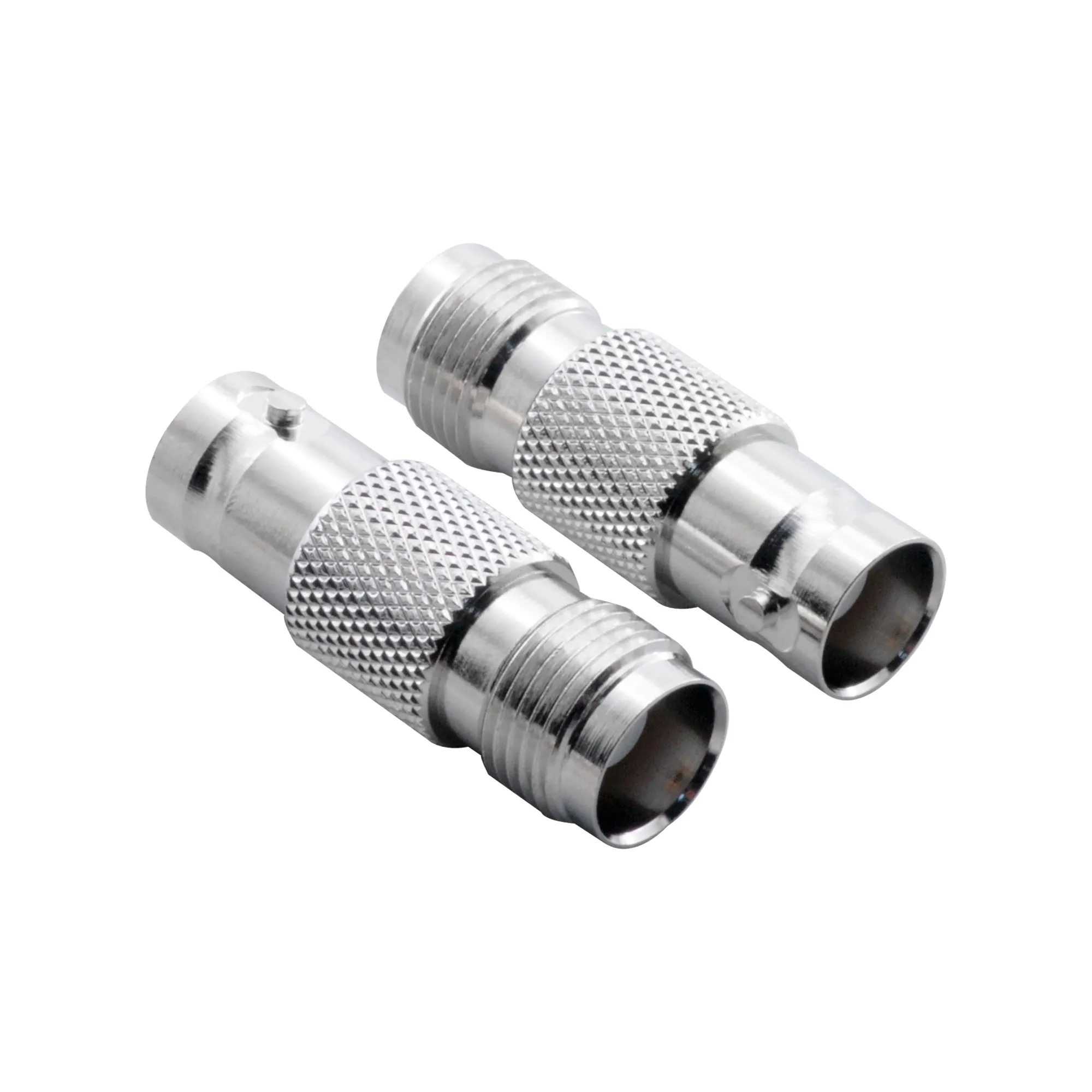

Links a BNC line to a TNC interface.
A coaxial transition connector with a BNC female port on one side and a TNC female port on the other. It links male-plug BNC and TNC cables to each other and holds the 50 Ω coaxial layout.
50 ΩImpedance
FemalePlug Type
NickelOuter Jacket
0.2 dB max. @ 3 GHzInsertion Loss
Key features
BNC female to TNC femaleBrings male-plug BNC and TNC cables face to face.
50 Ω impedanceHolds the impedance of the coaxial line across the transition.
Nickel platingThe body surface is nickel plated.
Low insertion lossInsertion loss stays at or below 0.2 dB at 3 GHz.
