Turns the end of an RG213 cable into a BNC interface.

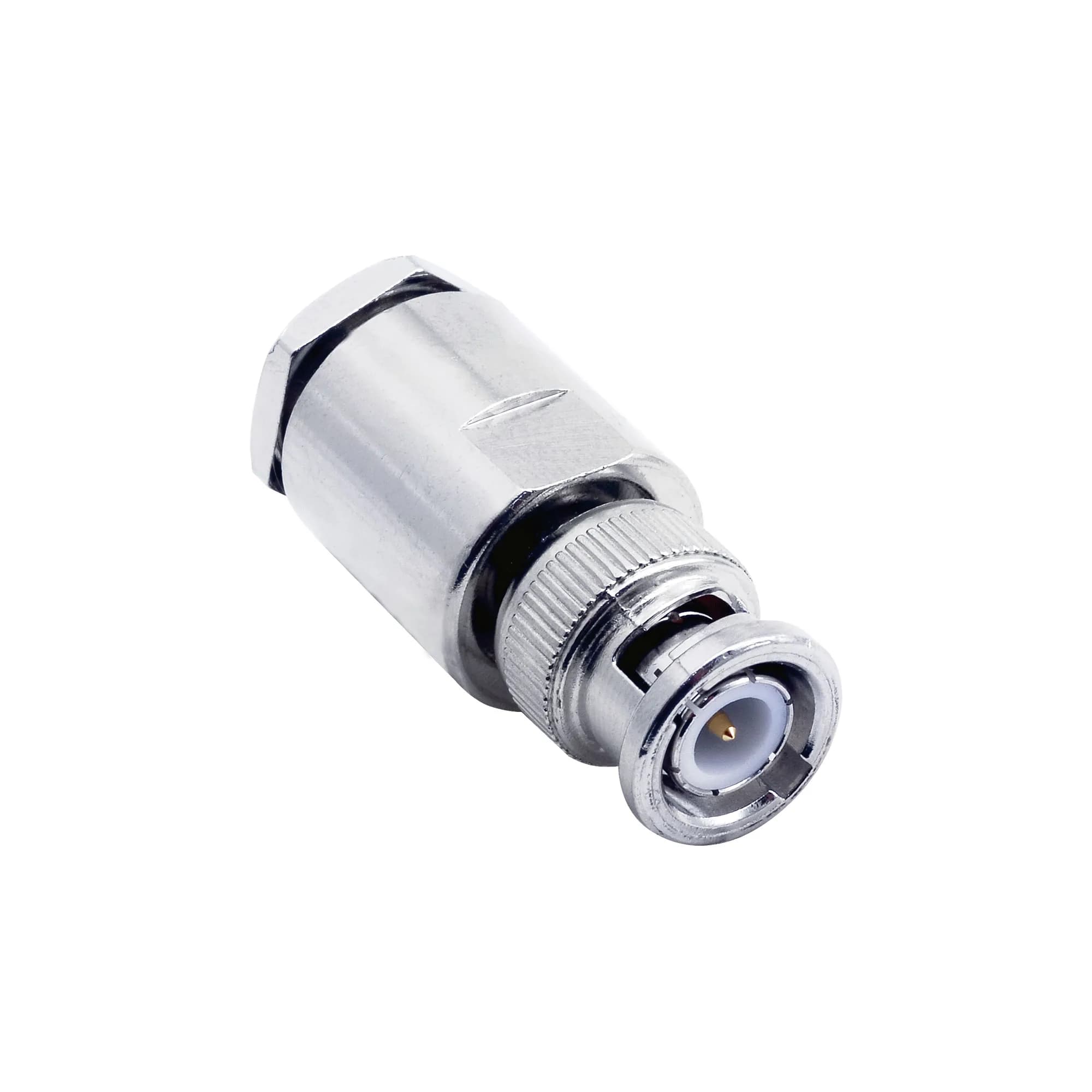

The male BNC connector terminates RG213 coaxial cable with a crimp ring. It works on 50 Ω lines from DC up to 4.0 GHz and serves broadcast, security and telecommunication links.

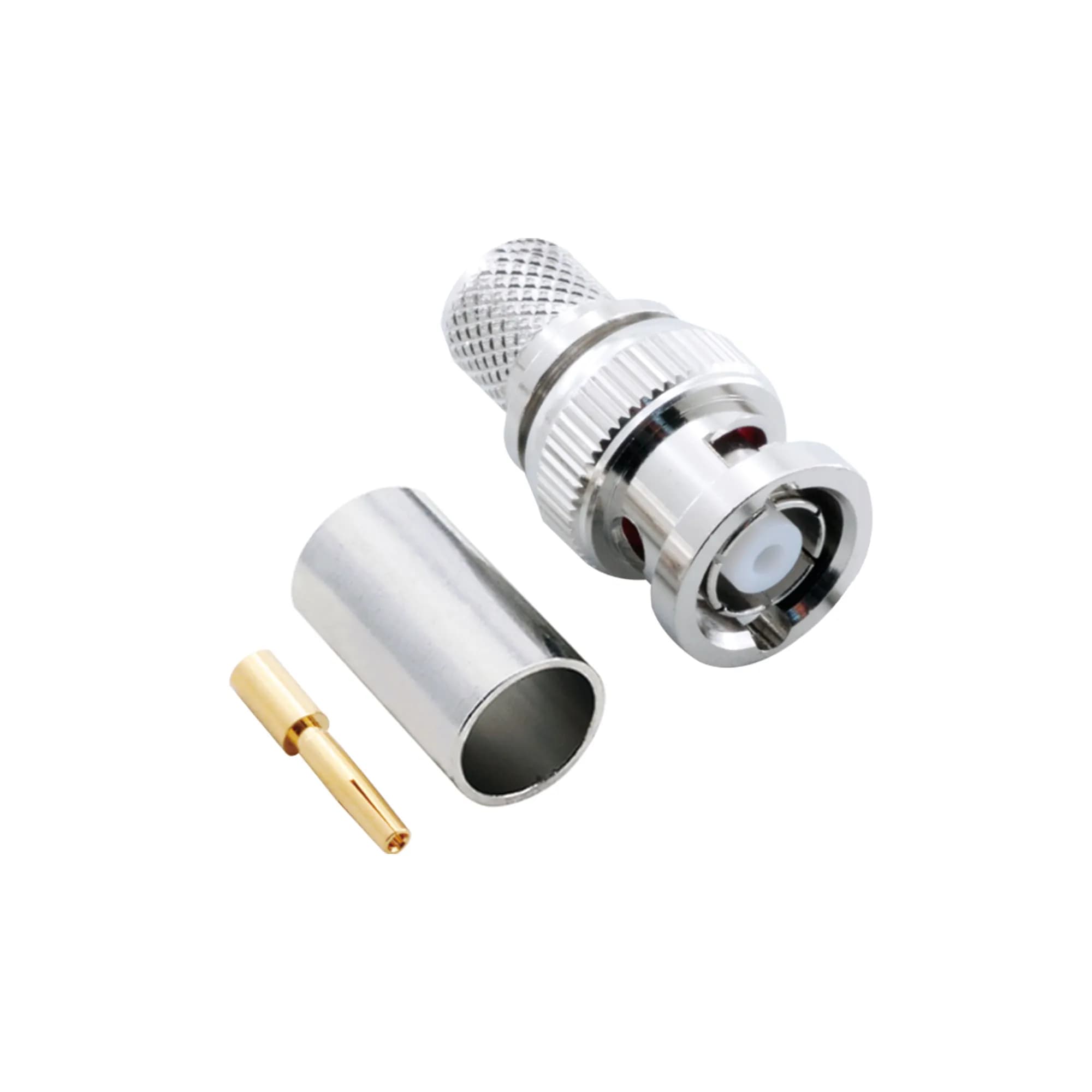

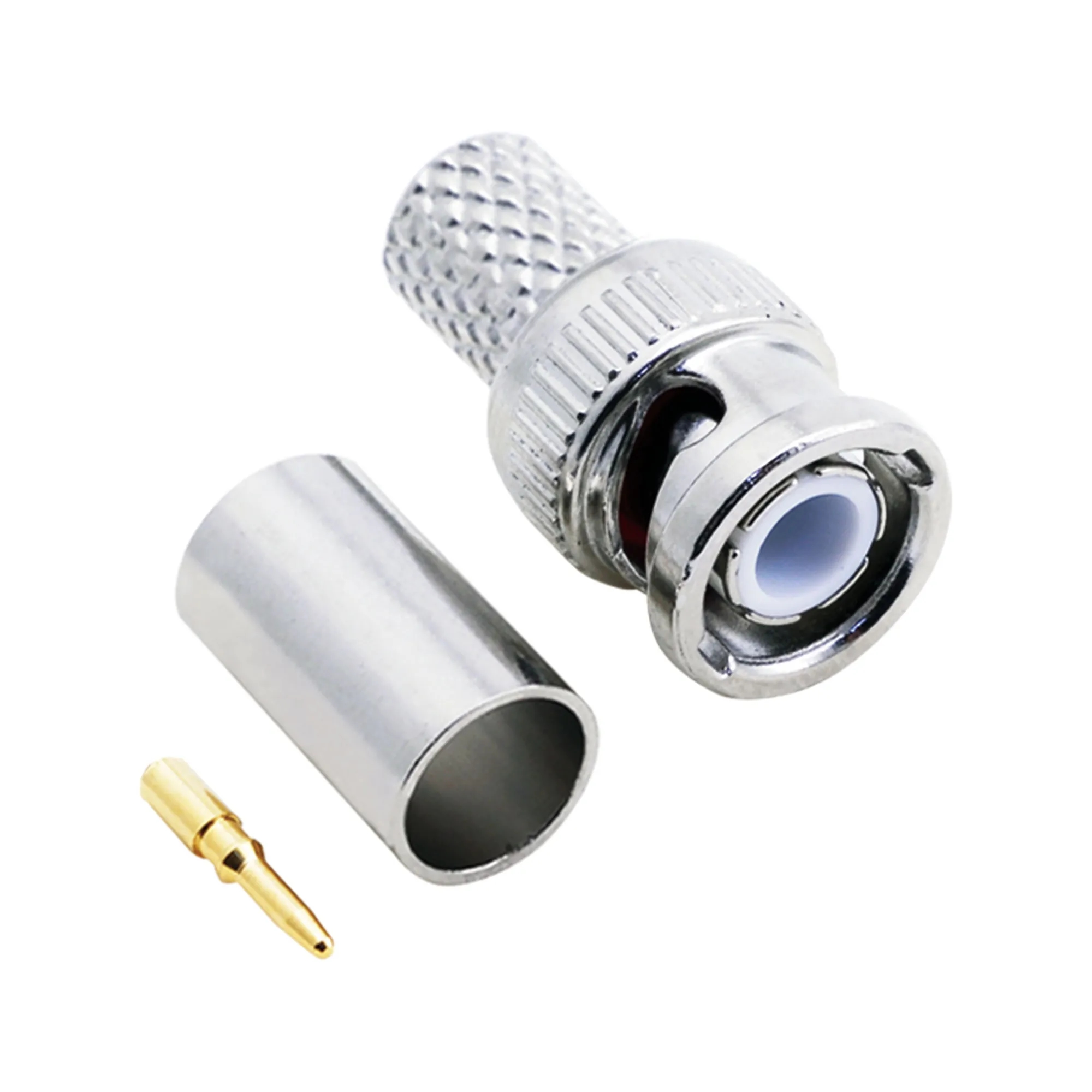

Crimp terminationThe crimp ring secures the end of the RG213 cable to the body.
Slotted lockThe slotted lock seats the connector in the mating port and shortens removal.
BandwidthCarries signal from DC up to 4.0 GHz.
Electrical valuesVSWR stays below 1.3 on straight bodies and below 1.35 on right angle bodies, and insertion loss holds at 0.2 dB at 3 GHz.
PlatingThe nickel plated body and the gold plated contact pin reduce signal loss.
