Terminates RG58 coaxial cable on a crimp BNC interface.

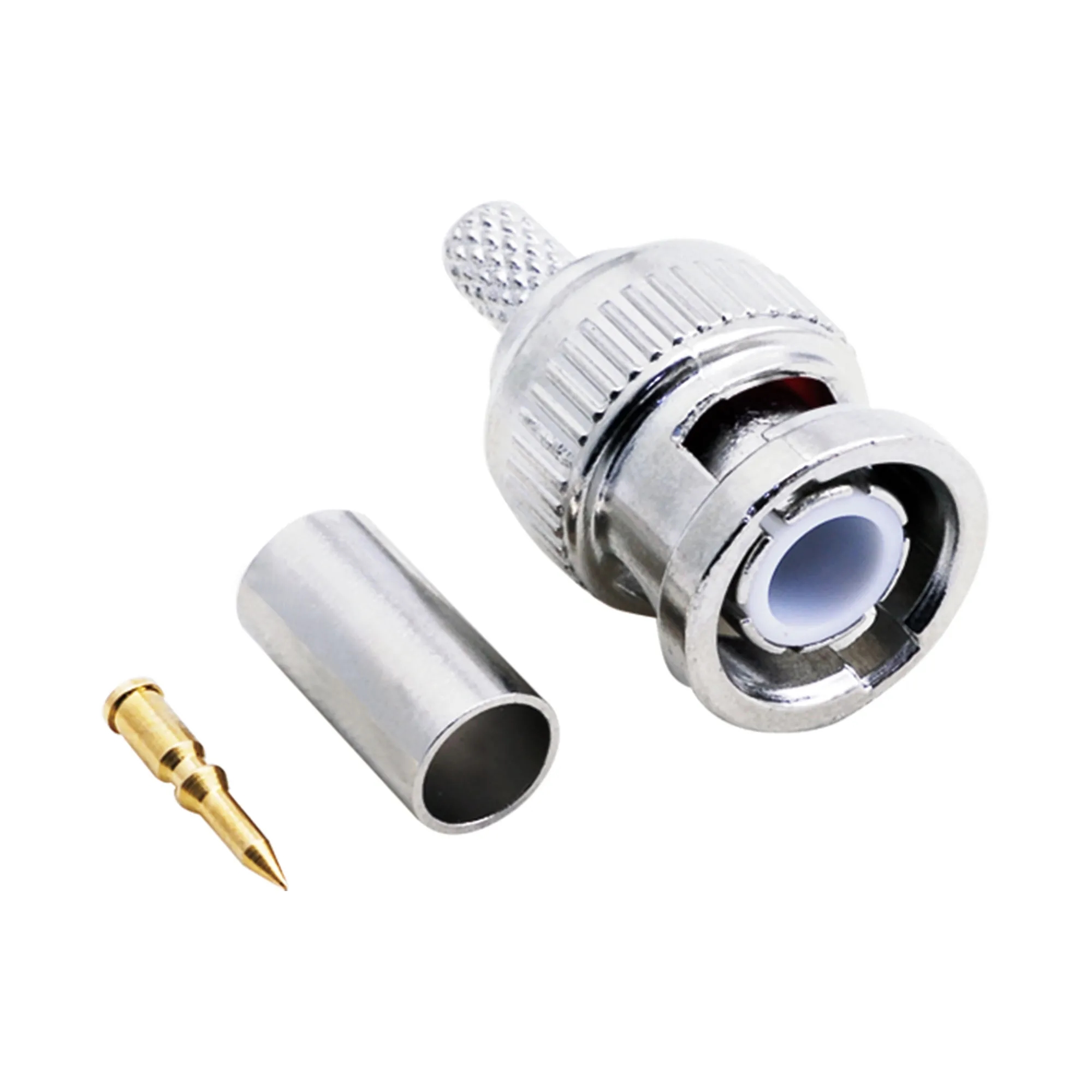

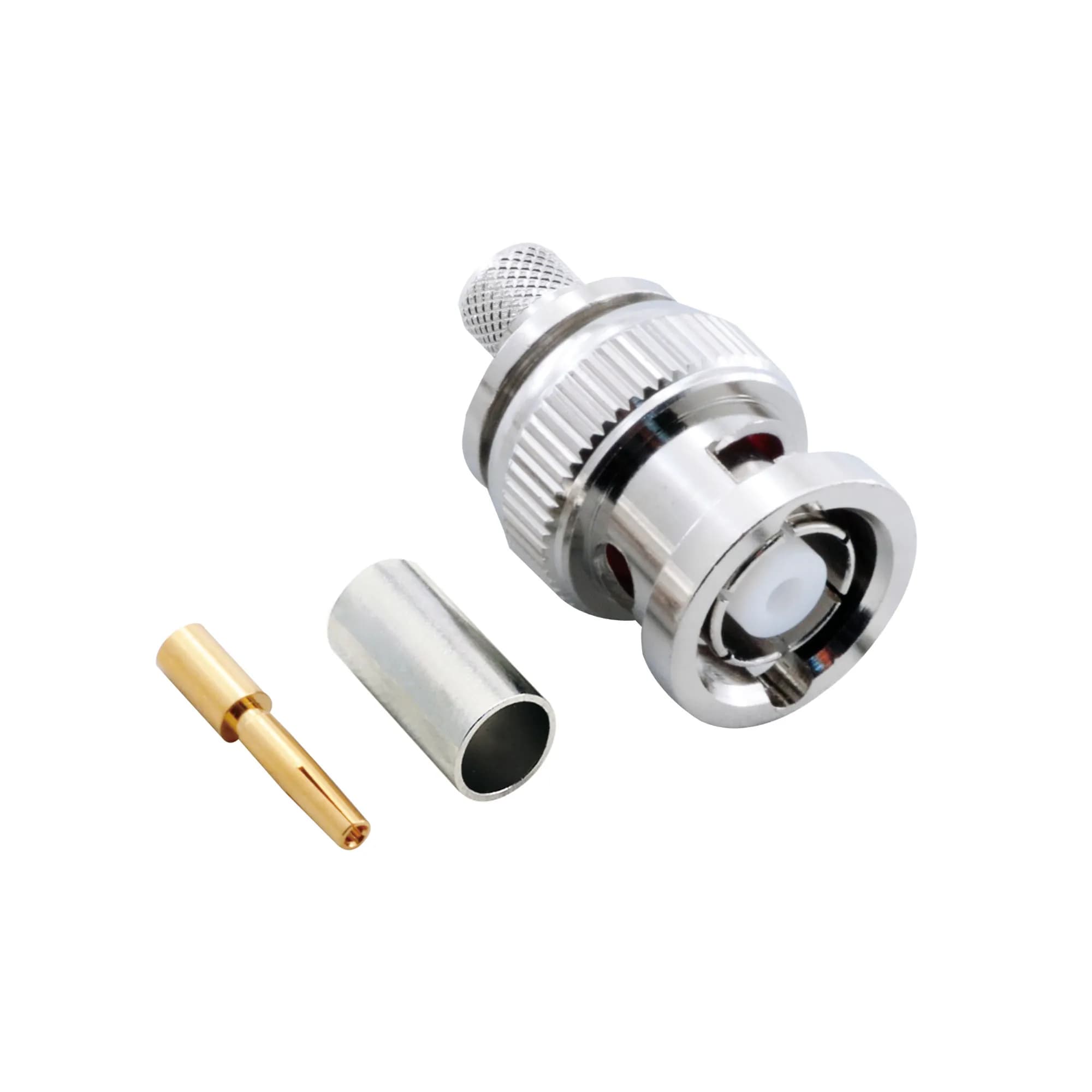

A male crimp BNC connector for RG58 coaxial cable. Its miniature, lightweight body fits computer networks, audio and video lines, data processing and telecommunication equipment. The locking coupling keeps connection and removal short.
50 ΩImpedance
CrimpLink Type
MalePlug Type
NickelOuter Jacket
RG58Cable Type
0 - 4 GHzFrequency Range
Key features
Crimp terminationPliers or a crimping vise seat the connector on the cable end.
Locking couplingTwo screw slots lock the connector onto the mating port, so connection and removal stay quick.
Wide frequency bandIt works with low reflection across the 0 - 4 GHz range.
Low insertion lossInsertion loss stays at 0.2 dB max at 3 GHz.
Stable VSWRThe straight body type holds VSWR at 1.3 max.
Gold-plated contact pinGold plating covers the contact pin.
