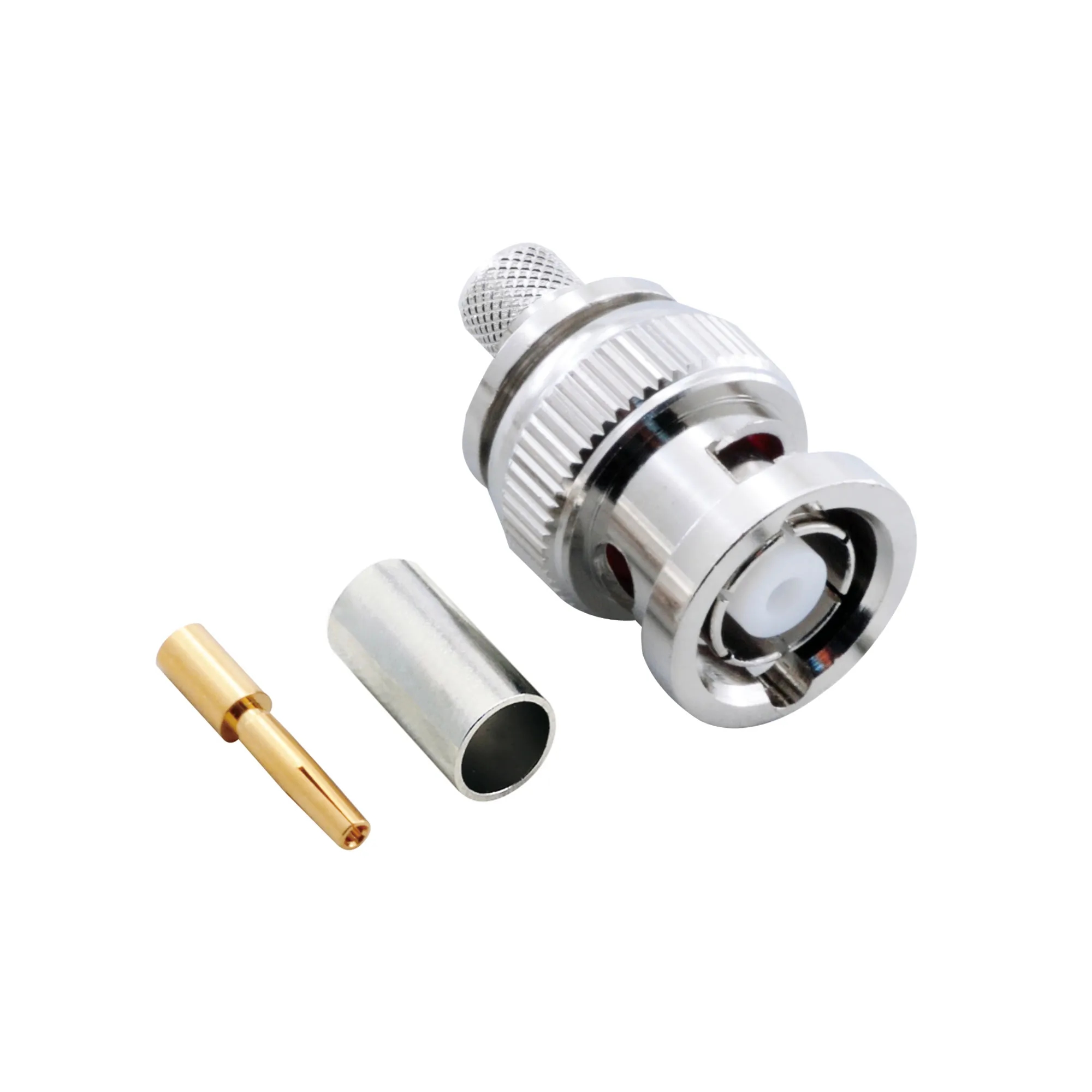

Turns an RG58 coaxial cable end into a BNC male RP interface.
This BNC male RP crimp connector links RG58 coaxial cable to 50 Ω lines. In video, data and RF installations that call for an RP interface, it converts the cable end into a BNC connection.
Impedance matchThe connector operates at 50 Ω and keeps the line impedance of the RG58 cable unchanged.
Frequency rangeIt carries signals across the 0 – 4.0 GHz band and holds reflection low over that range.
TerminationA crimp tool clamps the cable end onto the connector body mechanically.
InterfaceThe RP male body seats into the mating BNC interface, and the locking coupling holds the connection in place.
PlatingThe gold plated contact pin and the nickel plated body keep signal loss to a minimum.
Signal qualityVSWR stays within 1.3 on the straight body, and insertion loss holds at 0.2 dB max at 3 GHz.
