Splits one coaxial run in two, or gathers two runs at a single device input.

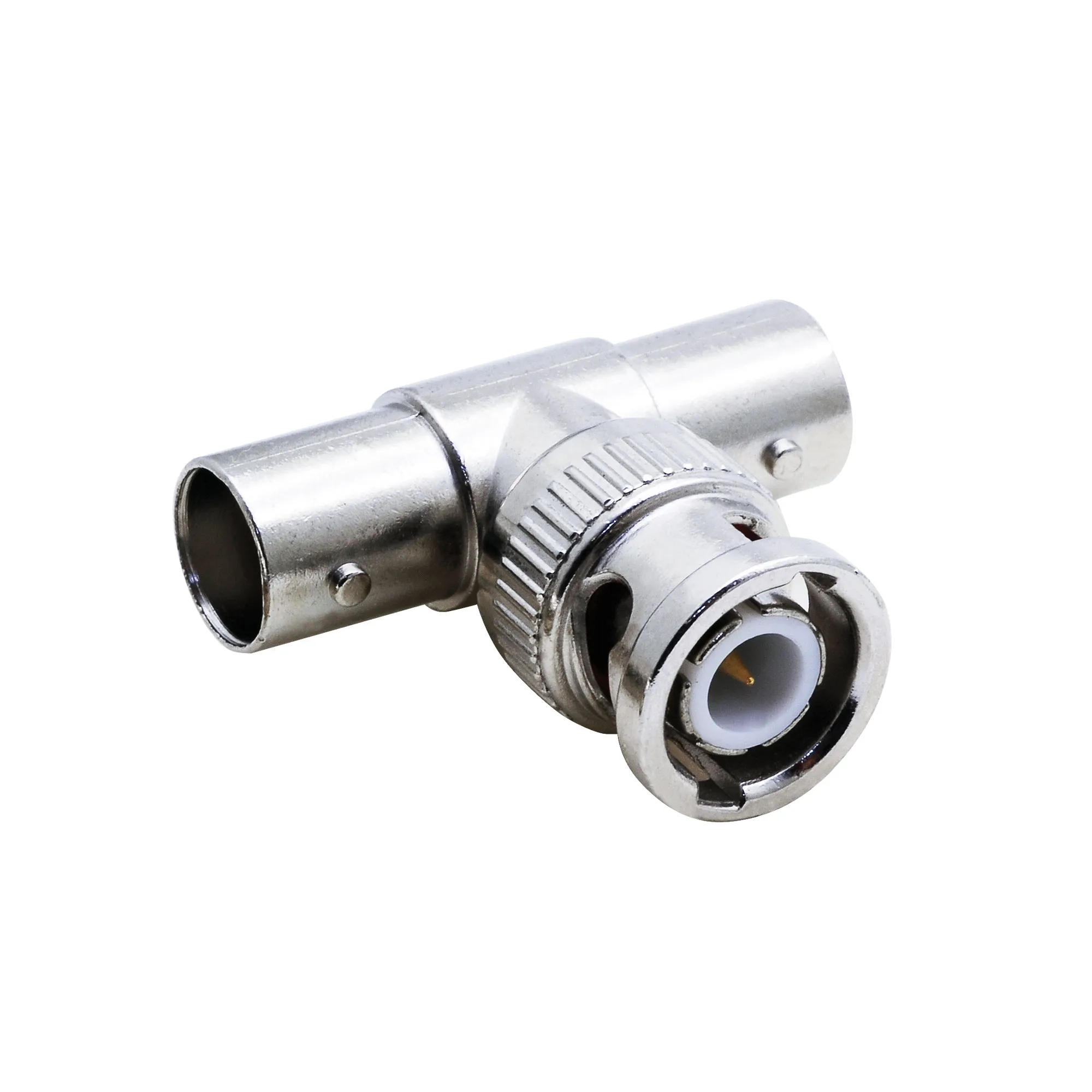

A T-connector that gathers one male and two female BNC ends in a single body. The male end seats into the device input while the female ends carry the incoming and outgoing run. It opens a tap point in measurement setups and daisy-chained coaxial lines, holds 50 Ω impedance and works from DC to 4.0 GHz.
50 ΩImpedance
0 - 4.0 GHzFrequency Range
1.3 max.VSWR (straight)
0.2 dB @ 3 GHzInsertion Loss
NickelOuter Jacket
Male - FemalePlug Type
Key features
Connection layoutOne male and two female BNC ends meet in a T shape; the male end enters the device and the female ends continue the run.
Frequency bandCarries signal from DC to 4.0 GHz on a 50 Ω line.
Signal integrityInsertion loss stays within 0.2 dB at 3 GHz and straight VSWR within 1.3.
LockingThe two-slot BNC lock holds all three ends in place, and mating or release needs no tools.
