Measures loss and defects on cell site transmission lines in the field.

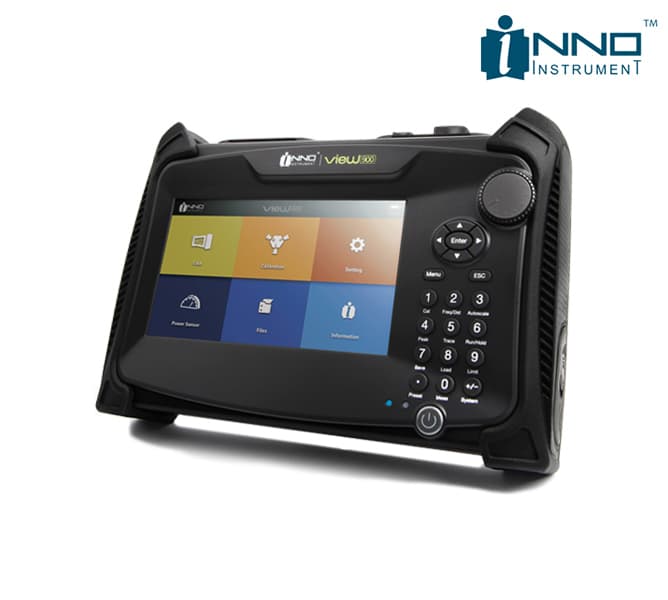

A hand-held cable and antenna analyzer for cell site installation and maintenance crews. It brings VSWR, return loss, cable loss, distance-to-fault (DTF) and Smith chart measurements together in one unit across the 5 MHz – 6 GHz band.

5 MHz – 6 GHzFrequency Range

N-Type Female, 50 ΩTest Port

7 inColor touch display

5.5 hoursBattery operating time

2.1 kgWeight (battery included)

Key features

6GHz

Broadband coverage

The measurement band runs from a 5 MHz lower limit to a 6 GHz upper limit.

2049points

High-resolution trace

The unit sets trace data anywhere between 129 and 2049 points.

5.5hours

A full day in the field

The field-replaceable lithium ion battery keeps measurement running on a single charge.

2.1kg

Hand-held portable body

The 272 x 188 x 65 mm housing travels to the tower inside a soft case.

7in

Readable in sunlight

The bright color LCD opens menus directly through its touch interface.

IN DAILY USE

One unit covers the jobVSWR, return loss, cable loss and Smith chart run from the same menu, so the technician swaps no instruments at the tower.

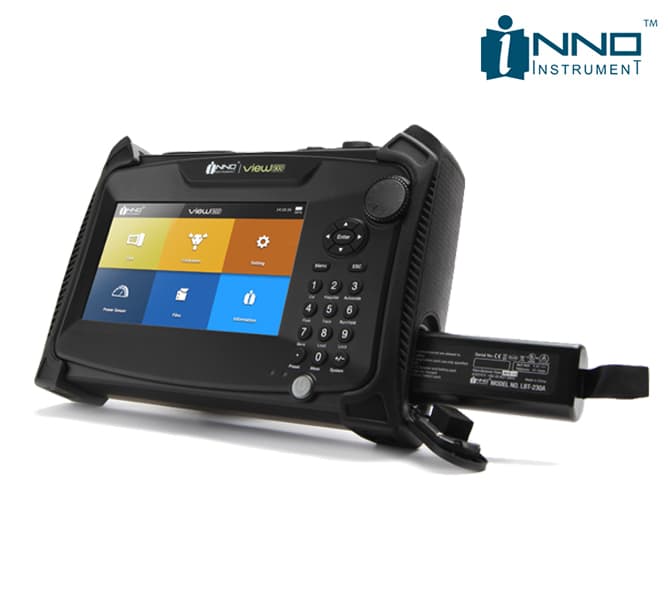

Battery swaps on siteThe technician removes the battery pack in the field and fits a fresh one instead of waiting for a charge mid-shift.

Records and carries resultsThe unit stores traces, screenshots and setup files in internal memory, and a USB drive carries them into the report.

Usage AreasCell site installation·Antenna and feeder line maintenance·Mobile network upgrade projects

Model

Max input power

+25 dBm (+33 dBm damage level)

Frequency Range

5 MHz to 6 GHz

Frequency Accuracy

< ±3 ppm

Frequency Resolution

10 kHz

Number of Data Points

129, 257, 513, 1025, 2049

Display

Single & Dual display

Test Port

N-Type Female, 50 Ω

Storage

Internal: Minimum 512 MB

(Trace / Screen / Setup)

External: Limited by size of USB (32 G)

Return Loss Range

0 to 60 dB

VSWR Range

1 to 65

Cable Loss Range

0 to 30 dB

DTF Return Loss Display Range

0 to 60 dB

VSWR Display Range

0 to 65

Distance Range

0 to 1,250 m (4,125 ft)

On Frequency

+5 dBm

On Channel

+15 dBm

Dimension

272 x 188 x 65 mm (10.7 × 7.4 × 2.55 inches)

Weight

2.1 kg (include battery)

Voltage and Current

12 VDC, 3.0 A

Adaptor AC Input

100 to 240 V, 1.5 A

Adaptor DC Output

12 VDC, 3.0 A

Battery

Li-ion 7800 mAh (5.5 hr operating time after full charge)

Operating Temperature

-10 °C ~ +50 °C (14 °F ~ +122 °F)

Storage Temperature

-40 °C ~ +80 °C (-40 °F ~ +176 °F)

Humidity

95 % R.H. No Condensation
