PWR-75-48 (MEAN WELL/XDR-75E-48)
Hardware Version	2
Dimensions (W × H × D)	30 × 125 × 116 mm
Weight (kg)	0.4 kg
Input Voltage	85 ~ 264 V AC, 50/60 Hz; 127 ~ 370 V DC
Power Output	75 watts, 48 V, 1.6 A
Temperature	Operating: -40 ~ 70°C Storage: -40 ~ 85°C
Humidity	Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing)
Installation	DIN rail TS-35/7.5 or 15
Safety & Function	UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16 approved

PWR-120-48 (MEAN WELL/XDR-120E-48)
Hardware Version	3
Dimensions (W × H × D)	30 × 125 × 116 mm
Weight (kg)	0.42 kg
Input Voltage	85 ~ 264 V AC, 50/60 Hz; 127 ~ 370 V DC
Power Output	120 watts, 48 V, 2.5 A
Temperature	Operating: -40 ~ 70°C Storage: -40 ~ 85°C
Humidity	Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing)
Installation	DIN rail TS-35/7.5 or 15
Safety & Function	UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16 approved

PWR-240-48 (MEAN WELL/XDR-240E-48)
Hardware Version	3
Dimensions (W × H × D)	40 × 125 × 116 mm
Weight (kg)	0.61 kg
Input Voltage	85 ~ 264 V AC, 50/60 Hz; 127 ~ 370 V DC
Power Output	240 watts, 48 V, 5 A
Temperature	Operating: -40 ~ 70°C Storage: -40 ~ 85°C
Humidity	Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing)
Installation	DIN rail TS-35/7.5 or 15
Safety & Function	UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16 approved

PWR-480-48 (MEAN WELL/XDR-480E-48)
Hardware Version	3
Dimensions (W × H × D)	48 × 125 × 125 mm
Weight (kg)	0.89 kg
Input Voltage	85 ~ 264 V AC, 50/60 Hz; 127 ~ 370 V DC
Power Output	480 watts, 48 V, 10 A
Temperature	Operating: -40 ~ 70°C Storage: -40 ~ 85°C
Humidity	Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing)
Installation	DIN rail TS-35/7.5 or 15
Safety & Function	UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16 approved

Converts mains voltage into the 48 volt DC that industrial equipment expects.

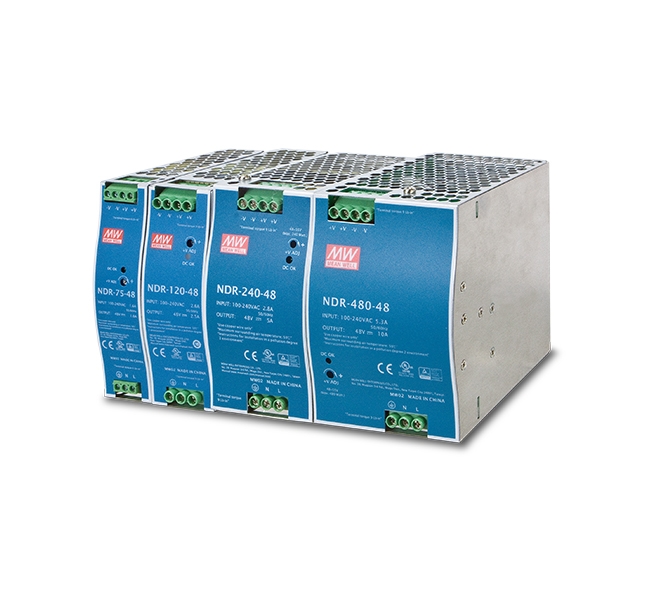

The series covers four DIN rail power supplies that accept 85 ~ 264 volt AC mains or a 127 ~ 370 volt DC feed and deliver 75, 120, 240 or 480 watts. The compact body seats on a TS-35 rail, and short circuit, overload, over voltage and over temperature protection stay active.

48 V DCoutput voltage

75 – 480 Wpower options

85 ~ 264 V ACinput voltage

10 Amaximum output current

TS-35DIN rail mounting

Key features

48V DC

Feed for industrial equipment

Runs PoE switches and industrial access points directly.

480W

Highest output in the series

The 10 A model covers heavy PoE budgets.

264V AC

Top of the wide input range

The range starts at 85 volts and copes with unstable mains.

370V DC

Direct current input

Also accepts a DC feed from 127 volts upward.

TS-35rail

DIN rail mounting

Seats on TS-35/7.5 and TS-35/15 rails.

IN THE CABINET

Fanless coolingFree air convection cools the body, and no moving part is involved.

Four protections activeShort circuit, overload, over voltage and over temperature protection work together.

Narrow bodyModels 30 mm wide still find room in a crowded cabinet.

ApplicationsIndustrial PoE Ethernet switches·Industrial PoE wireless access points

Power, current, dimensions and weight vary with the selected model.

PWR-75-48 (MEAN WELL/XDR-75E-48)

Hardware Version

Dimensions (W × H × D)

30 × 125 × 116 mm

Weight (kg)

0.4 kg

Input Voltage

85 ~ 264 V AC, 50/60 Hz; 127 ~ 370 V DC

Power Output

75 watts, 48 V, 1.6 A

Temperature

Operating: -40 ~ 70°C
Storage: -40 ~ 85°C

Humidity

Operating: 20 ~ 95%
Storage: 10 ~ 95% (non-condensing)

Installation

DIN rail TS-35/7.5 or 15

Safety & Function

UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16 approved

PWR-120-48 (MEAN WELL/XDR-120E-48)

Hardware Version

Dimensions (W × H × D)

30 × 125 × 116 mm

Weight (kg)

0.42 kg

Input Voltage

85 ~ 264 V AC, 50/60 Hz; 127 ~ 370 V DC

Power Output

120 watts, 48 V, 2.5 A

Temperature

Operating: -40 ~ 70°C
Storage: -40 ~ 85°C

Humidity

Operating: 20 ~ 95%
Storage: 10 ~ 95% (non-condensing)

Installation

DIN rail TS-35/7.5 or 15

Safety & Function

UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16 approved

PWR-240-48 (MEAN WELL/XDR-240E-48)

Hardware Version

Dimensions (W × H × D)

40 × 125 × 116 mm

Weight (kg)

0.61 kg

Input Voltage

85 ~ 264 V AC, 50/60 Hz; 127 ~ 370 V DC

Power Output

240 watts, 48 V, 5 A

Temperature

Operating: -40 ~ 70°C
Storage: -40 ~ 85°C

Humidity

Operating: 20 ~ 95%
Storage: 10 ~ 95% (non-condensing)

Installation

DIN rail TS-35/7.5 or 15

Safety & Function

UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16 approved

PWR-480-48 (MEAN WELL/XDR-480E-48)

Hardware Version

Dimensions (W × H × D)

48 × 125 × 125 mm

Weight (kg)

0.89 kg

Input Voltage

85 ~ 264 V AC, 50/60 Hz; 127 ~ 370 V DC

Power Output

480 watts, 48 V, 10 A

Temperature

Operating: -40 ~ 70°C
Storage: -40 ~ 85°C

Humidity

Operating: 20 ~ 95%
Storage: 10 ~ 95% (non-condensing)

Installation

DIN rail TS-35/7.5 or 15

Safety & Function

UL61010; BS EN/EN62368-1, BS EN/EN61558-1/-2-16 approved
