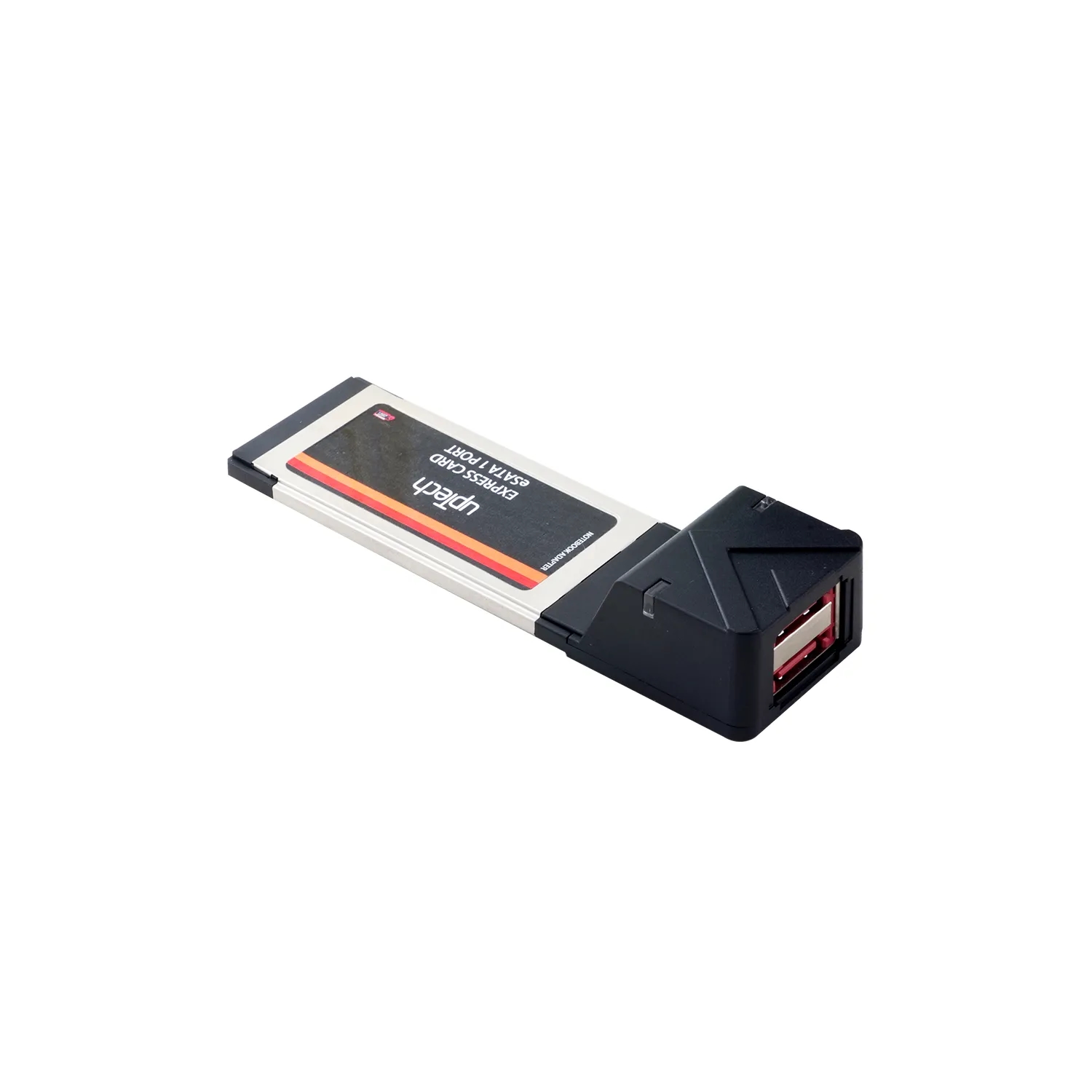

Adds 2 eSATA ports from an ExpressCard/34 slot

A SATA II adapter card fully compatible with the ExpressCard/34 standard. It carries a 3Gb/s PCI Express link on a single lane and supports RAID 0, RAID 1 and software RAID 5 sets.

ExpressCard/34System Interface

2Port Count

eSATAConnector Type

SATA IIStandards Compliance

3Gb/sTransmission Speed

RAID 0 / 1 / 5RAID Support

Key features

Card standardFully compatible with the ExpressCard/34 standard.

PCI ExpressCarries a 3Gb/s PCI Express link on a single lane.

SATA compatibilityStays fully compatible with the SATA 1.0 specification.

Transfer rateReaches a 3Gb/s transfer rate over the SATA II interface.

RAID supportSupports RAID 0, RAID 1 and software RAID 5 sets.

ExpressCard SATA II Adapter - Technical Specifications

Usage

Plug & Play

Compatibility

Fully compatible with ExpressCard/34 standard

PCI Express

3Gb/s PCI Express support on single lane

SATA Compatibility

Fully compatible with SATA 1.0 specifications

SATA II

Supports 3Gb/s data transfer rate

RAID Support

RAID 0, RAID 1 and software RAID 5 supported
