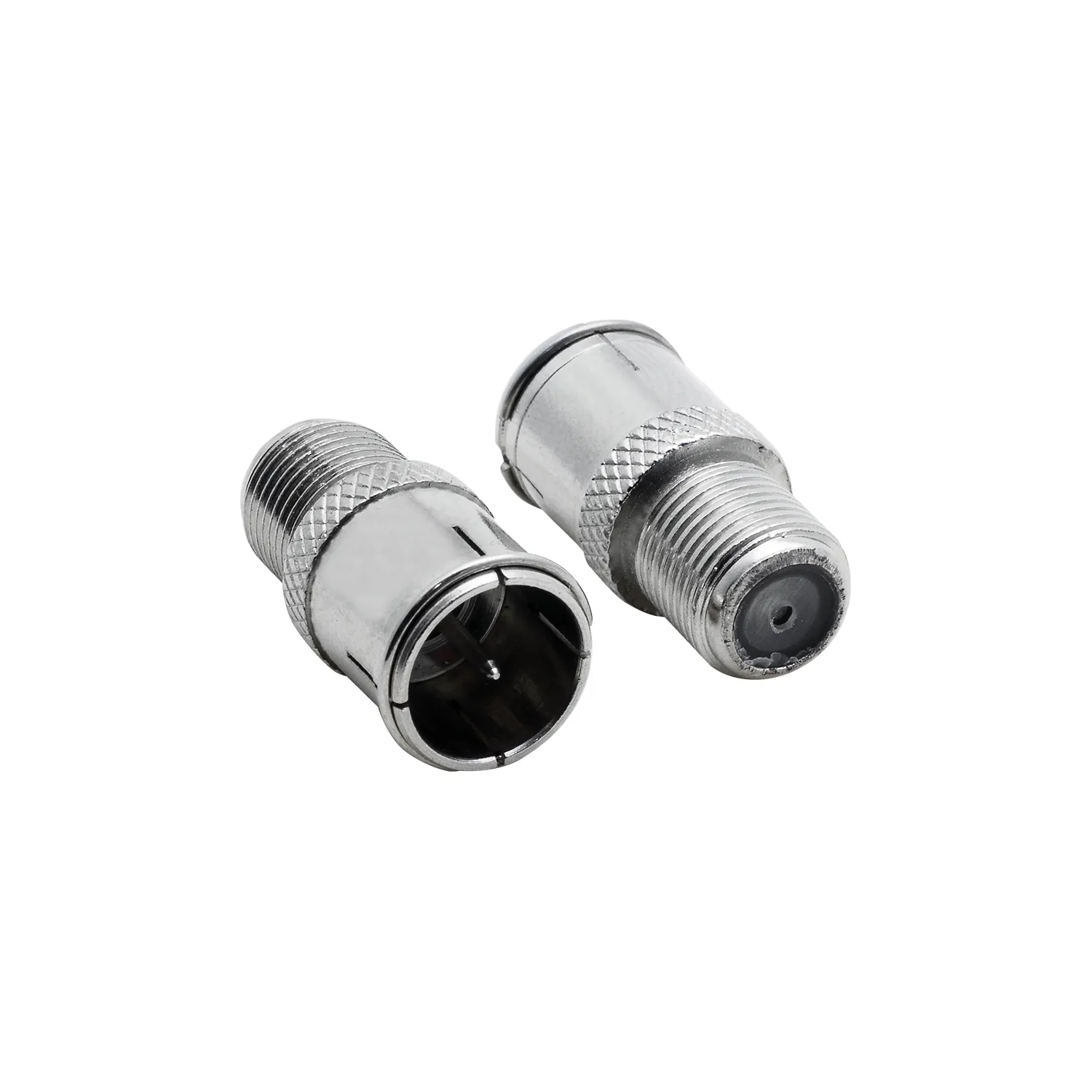

Makes a quick link between an F female and an F male end.

A quick-type connector with an F-type female input jack on one side and an F male end on the other. The solid coaxial connection structure preserves RF performance, and the F-type input jack matches high-speed modem and CIU connections.

F female - F maleConnector Configuration

15 ACurrent Capacity

Solid coaxialConnection Structure

F typeInput Jack Type

NickelOuter Jacket

Screw-onLink Type

Key features

Quick connectionJoins the female and male ends in a single move.

Solid coaxial connectionThe solid coaxial structure preserves RF performance at the joint.

15 A current capacityCarries up to 15 A in set-top design systems.

F-type input jackMatches the F-type jacks used on high-speed modem and CIU connections.

Screw-on interfaceAttaches to the mating end through a threaded interface.

General

Product Type

F-type coaxial quick connector

Connector Configuration

F Female – Male (quick)

Technical Specifications

Input Jack Type

F-type

Connection Structure

Solid coaxial connection

Current Capacity

Up to 15 A (in set-top design systems)

Application

Designed For

F-type input jack for high-speed modems and CIUs

Application Areas

CIMs; high-speed cable modems; hybrid fiber coax network systems; satellite communication devices; CATV
