Connects a cable terminated with an F connector to an antenna input.

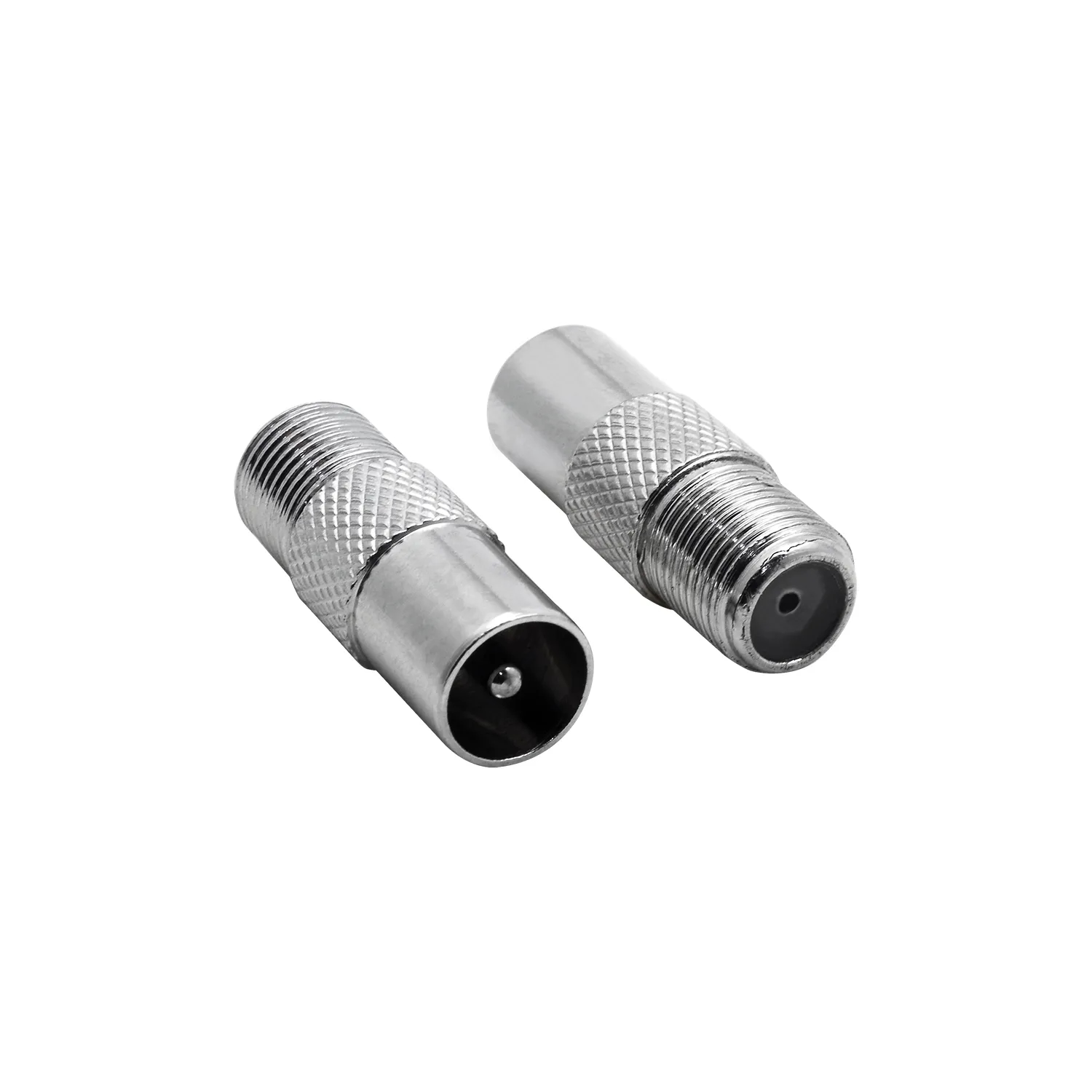

An adapter connector with an F-type female input jack on one side and a PAL male antenna plug on the other. It turns a cable terminated with an F connector or an antenna plug into a simpler and more robust connection.

F female - PAL maleConnector Configuration

15 ACurrent Capacity

Solid coaxialConnection Structure

F typeInput Jack Type

NickelOuter Jacket

Screw-onLink Type

Key features

F to PAL conversionTurns the F female input jack into a PAL male antenna plug.

Robust connectionTurns a cable terminated with an F connector or an antenna plug into a simpler and more robust connection.

Solid coaxial connectionThe solid coaxial structure preserves RF performance at the joint.

15 A current capacityCarries up to 15 A in set-top design systems.

F-type input jackMatches the F-type jacks used on high-speed modem and CIU connections.

General

Product Type

F-type coaxial adapter connector

Connector Configuration

F Female – PAL Male

Technical Specifications

Input Jack Type

F-type

Connection Structure

Solid coaxial connection

Current Capacity

Up to 15 A (in set-top design systems)

Application

Designed For

F-type input jack for high-speed modems and CIUs

Intended Use

Turns cables terminated with an F connector or antenna plug into a simpler and more robust connection

Application Areas

CIMs; high-speed cable modems; hybrid fiber coax network systems; satellite communication devices; CATV
