Cleaves single and ribbon fiber cable in two steps with high precision.

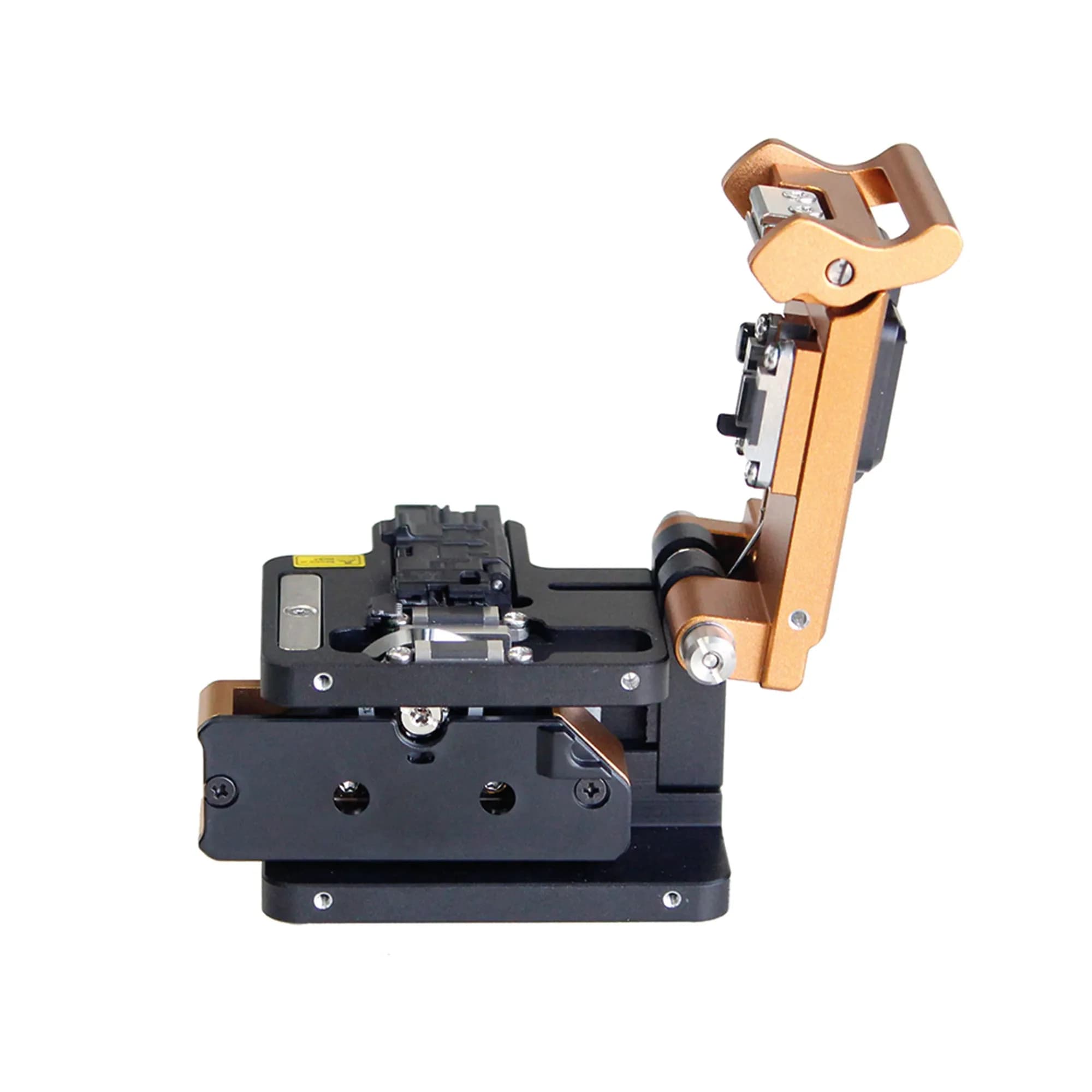

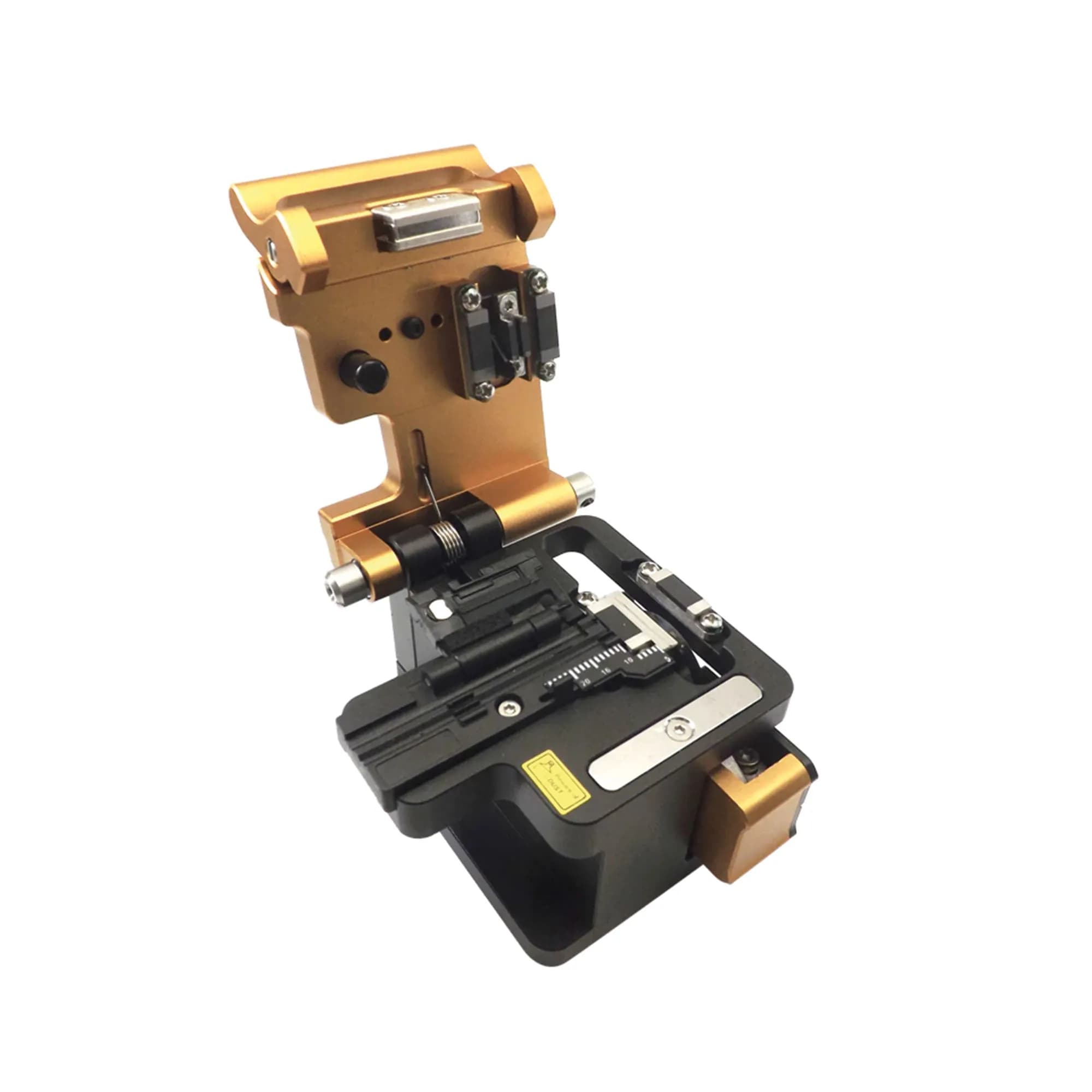

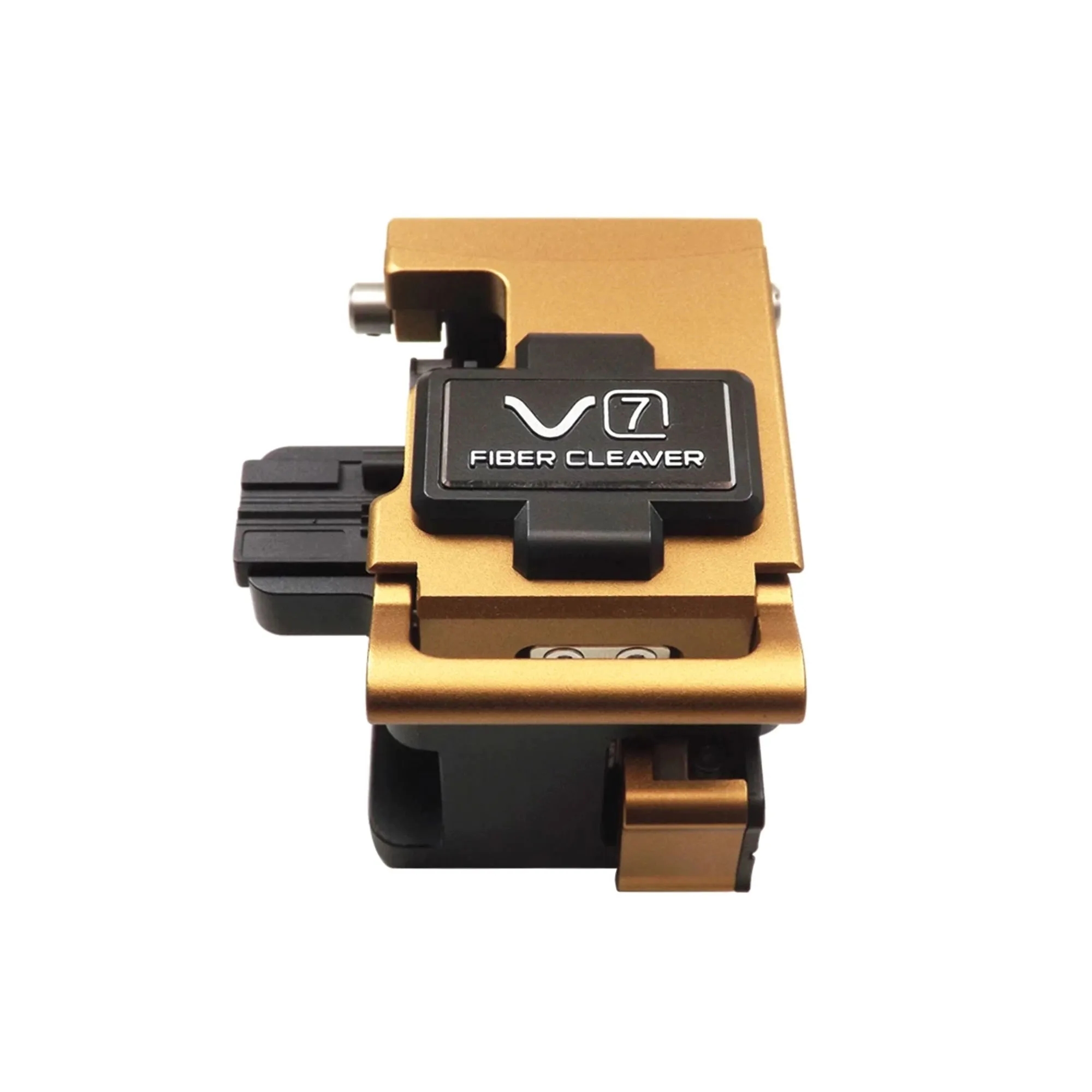

A cleaver used to prepare fiber ends before fusion splicing. The universal holder takes single fiber cable, while ribbon holders cleave ribbon cable of up to 12 fibers. It works in the hand or on a bench.
Single and ribbon fiberCleaves single fiber and ribbon cable of 2 to 12 fibers.
Two-step operationHolds the fiber and finishes the cut in two steps, with no blade height adjustment.

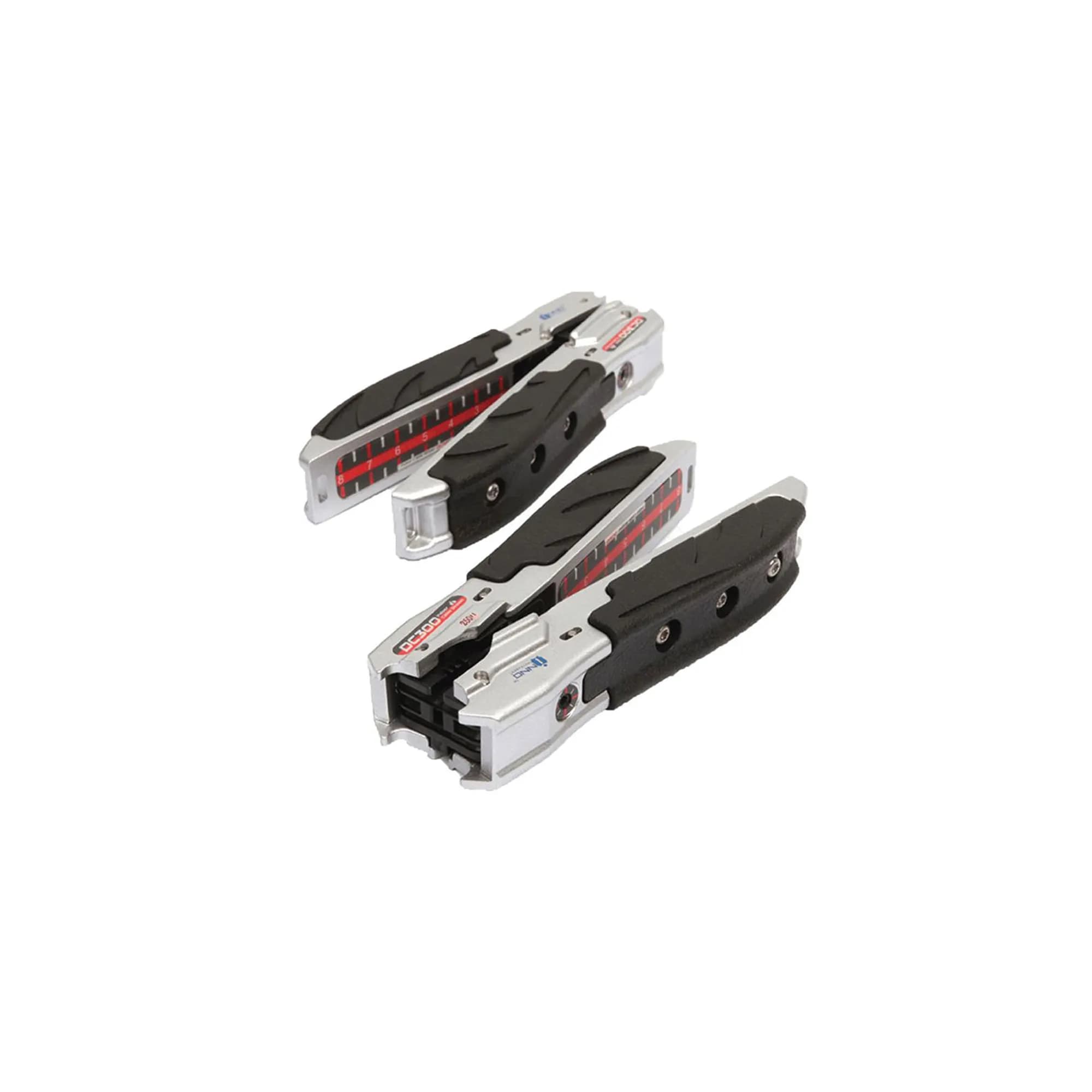

Universal holderAccepts 250 µm, 900 µm and 3.0 mm fiber cable and flat cable in one holder.
Blade stepsEach blade carries 16 cleave positions and runs more than 3000 cuts per position.
Pressure damperProtects the fiber as the blade carriage returns and keeps the cut face clean.
