Stock Code: PPC5F24R
| General and Mechanical Specifications | |
|---|---|

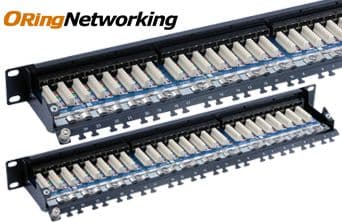

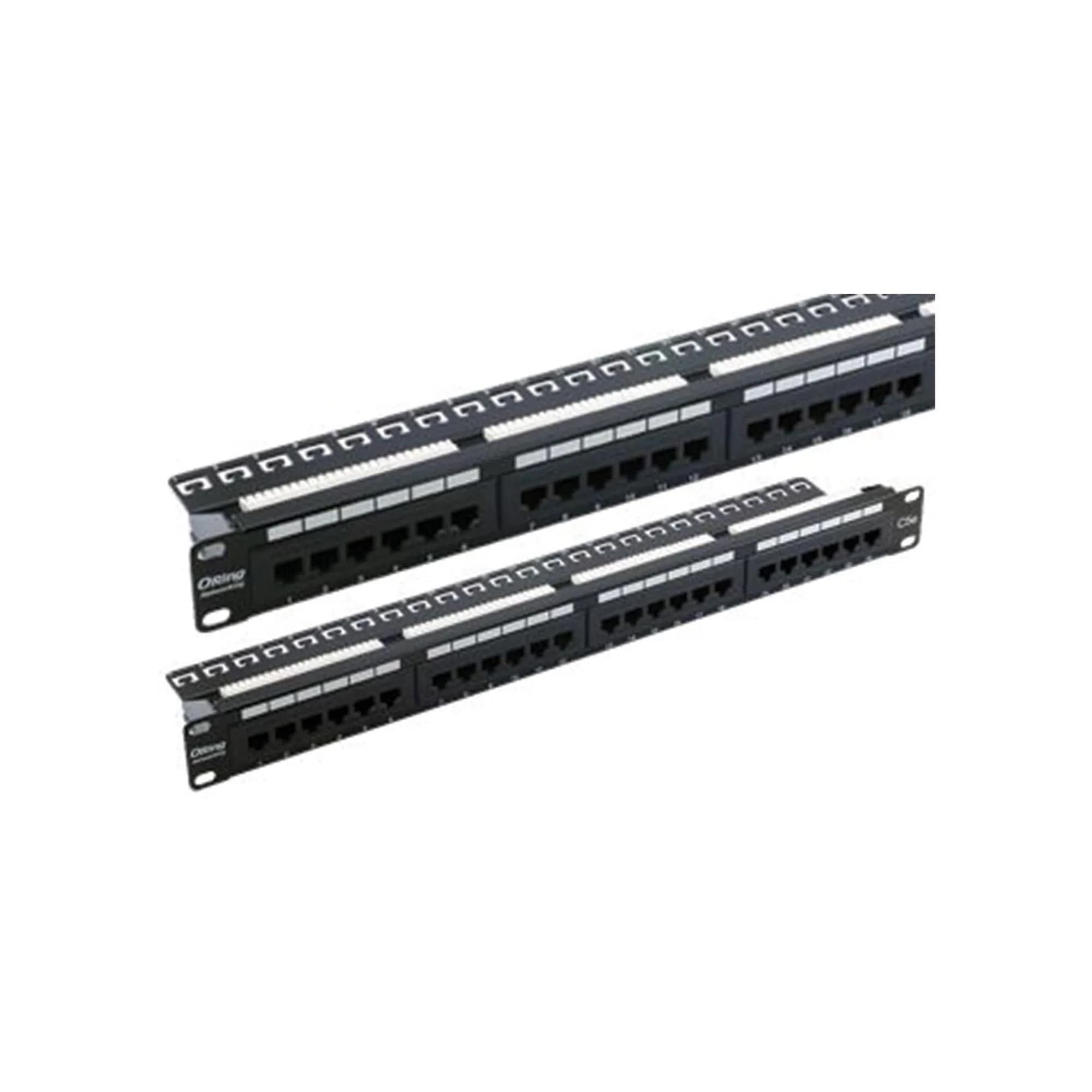

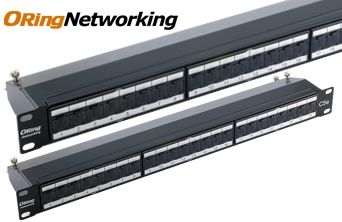

| Product Type | FTP Cat5e Keystone Jack / Panel - 24 Port (Right Angle) |
| Special Feature | Integrated Dust Protection Covers |
| Termination Method | 110 Punch Down Type |
| Contact Plating | 50u Micro Inch Gold Plated Contacts |
| Housing Material | High-Durability Flame Retardant Plastic (UL 94V-0) |
| Wire Compatibility | 22 - 26 AWG Solid Wire |
| Durability Life | RJ45 Port: Min. 750 Cycles / IDC: Min. 250 Re-terminations |
| Performance and Compliance | |
| Operating Frequency | 100 MHz Bandwidth / 100 Base-TX (Fast Ethernet) |
| Shielding Type | FTP (Foil Screened - EMI Protected) |
| Wiring Schemes | Fully Compatible with T568A and T568B |
| Standard Compliance | TIA/EIA 568 C.2, ISO/IEC 11801, EN 50173-1 |
| Warranty | Lifetime Warranty for ORing Networking Structural Products |
