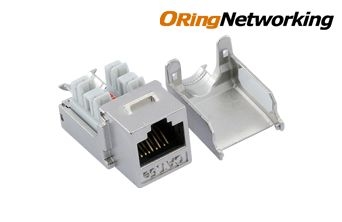

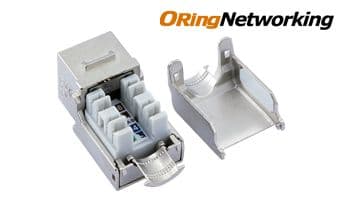

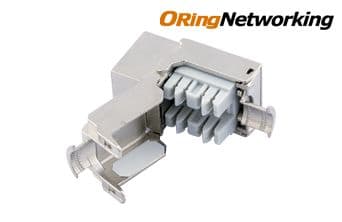

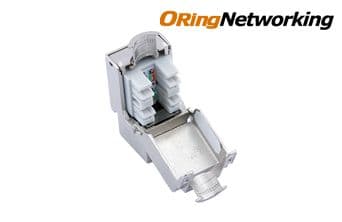

Name: FTP Cat5e Keystone Jack - Right Angle
Brand: Oring Networking
SKU: KJC5FR

Terminates foil-screened Cat5e cabling at a 90° angle.

This keystone jack terminates the cable end in FTP Cat5e structured cabling, where a foil screen wraps the twisted pairs. The 110 punch down block accepts 22 - 26 AWG cable, and the jack carries 100 Base-TX traffic across 100 MHz of bandwidth. The 90° body eases installation in shallow back boxes where the cable has no room behind the jack.

CAT5eCable Type

100 MHzOperating Frequency

FTPShielding

1 GbpsTransmission Speed

90°Product Type

110 Punch DownTermination Type

Key features

Standards complianceMeets TIA/EIA 568 C.2, ISO/IEC 11801 and EN 50173-1, and supports both T568A and T568B wiring schemes.

Contacts and housingContacts carry 50u micro inch gold plating; the housing uses high-durability flame retardant plastic rated UL 94V-0.

Cable compatibilityWorks with 22 - 26 AWG cable and terminates on a 110 punch down block.

Service lifeThe RJ45 port withstands at least 750 insertion cycles and the IDC side at least 250 re-terminations.

Application supportCarries 100 Base-TX (Fast Ethernet) traffic across 100 MHz of bandwidth.

ORing Networking structural cabling products carry a lifetime warranty.

General and Mechanical Specifications

Product Type

FTP Cat5e Keystone Jack (Right Angle)

Termination Method

110 Punch Down Type

Contact Plating

50u Micro Inch Gold Plated Contacts

Housing Material

High-Durability Flame Retardant Plastic (UL 94V-0)

Wire Compatibility

22 - 26 AWG Solid Wire

Durability

RJ45: Min. 750 / IDC: Min. 250 Termination Cycles

Performance and Compliance

Operating Frequency

100 MHz Bandwidth / 100 Base-TX (Fast Ethernet)

Shielding

FTP (Foil Screened Twisted Pairs)

Wiring Schemes

Compatible with T568A and T568B

Standard Compliance

TIA/EIA 568 C.2, ISO/IEC 11801, EN 50173-1

Warranty

Lifetime Warranty for ORing Networking Structural Products
