Name: Harting RJ45 Industrial IP20 Connector
Brand: Harting
SKU: 09 45 151 1560

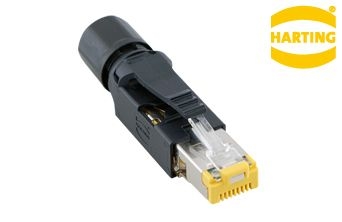

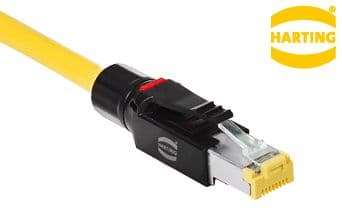

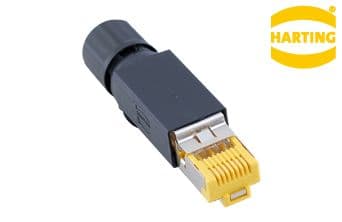

An RJ45 male connector that terminates industrial Ethernet lines on site without tools

An 8-contact RJ45 male connector for terminating cable ends directly in industrial networks. The IDC connection holds the cores by piercing the insulation, so assembly needs no dedicated tool. The connector operates from -40 °C … +70 °C.

RJ45 maleConnector Type

8Number of contacts

IDCTermination

4.5 – 9.0 mmCable diameter

IP20Protection Grade

-40 °C … +70 °COperating Temperature

Key features

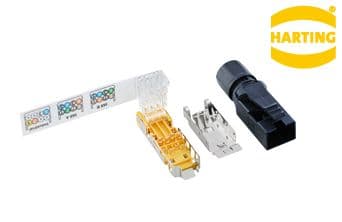

Tool-less terminationThe IDC connection holds the cores by piercing the insulation and needs no dedicated field tool.

Conductor rangeAccepts stranded and solid conductors from AWG 27 – 22, with conductor cross-sections of 0.1 … 0.32 mm².

Cable entryGrips cables with an outer diameter of 4.5 – 9.0 mm.

Industrial durabilityOperates from -40 °C … +70 °C and withstands 750 mating cycles.

Standards complianceMeets IEC 60603-7, ISO/IEC 11801, EN 50173-1 and EN 45545-2.

General Product Information

Product Series

HARTING RJ Industrial® 10G

Connector Type

RJ45 Male (Plug) / 8-Pin

Category / Class

Cat. 6 / Class EA up to 500 MHz

Data Transmission Rate

10 Mbit/s, 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s, 5 Gbit/s

Termination Technology

IDC (Insulation Displacement / Tool-less Assembly)

Cable and Assembly Specifications

Wire Cross Section (Stranded)

AWG 27/7 … AWG 22/7

Wire Cross Section (Solid)

AWG 27/1 … AWG 22/1

Conductor Cross Section

0.1 … 0.32 mm²

Cable Outer Diameter Range

4.5 mm … 9.0 mm

Protection Class

IP20

Electrical Performance

Rated Current

1.75 A

Rated Voltage

50 V AC / 60 V DC

Mating Cycles

750

Contact Material

Copper alloy

Environmental and Standards

Temperature Range

-40°C … +70°C

Standards

IEC 60603-7, ISO/IEC 11801, EN 50173-1, EN 45545-2
