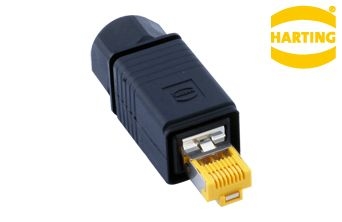

A fully shielded RJ45 male connector that locks fast in outdoor field enclosures

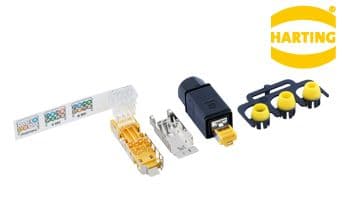

An 8-contact RJ45 male connector for terminating Ethernet lines in harsh field conditions. The PushPull mechanism locks the connector in one movement, and the IDC connection holds the cores without tools. The IP65 / IP67 housing keeps dust and water outside.
RJ45 maleConnector Type
8Number of contacts
IDCTermination
4.9 – 8.6 mmCable diameter
IP65 / IP67Protection Grade
-40 °C … +70 °COperating Temperature
Key features
PushPull lockingThe connector seats in a single movement and releases just as easily.
Full shieldingThe 360° shielding contact carries the shield along the whole housing.
Tool-less terminationThe IDC connection holds AWG 27 – 22 stranded and AWG 24 – 22 solid conductors without tools.
Field durabilityRated IP65 / IP67; it withstands 750 mating cycles and the -40 °C … +70 °C range.
Housing and standardsThe black thermoplastic housing carries flammability class V-0 and meets IEC 61076-3-106 V4 and EN 45545-2.
