Stock Code: HDMI1111
| General | |
|---|---|
| Model | HDMI1111 |

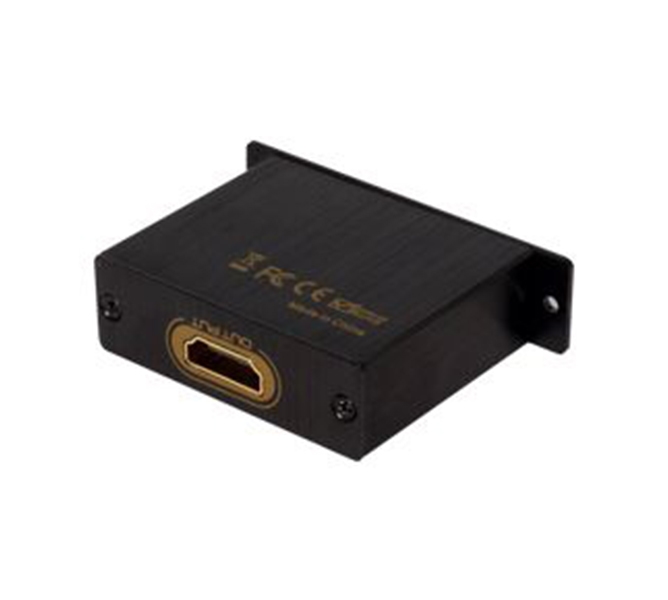

| Product Type | HDMI Surge Protector |
| Protection | |
| ESD Protection (IEC 61000-4-2) | ±15 kV (air), ±8 kV (contact) |
| EFT Protection (IEC 61000-4-4) | 40 A (5/50 ns) |
| Surge Protection (IEC 61000-4-5) | 5 A (8/20 µs) |
| Protection Technology | Solid-state silicon-avalanche |
| Protected Channels | TMDS / DDC / HPD / CEC |
| Protected Ports | HDMI input and output ports |
| HDMI / Signal | |
| HDMI Version | HDMI 1.4; 3D, 4K×2K, HEAC |
| HDMI Resolution | 24/50/60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
| Supported Video Color Format | 24 bit / Deep Color 30 bit, 36 bit, 48 bit |
| Supported Audio Formats | DTS-HD / Dolby-TrueHD / LPCM 7.1 / DTS / Dolby-AC3 / DSD HD (HBR) |
| HDCP | Supported |
| Max. Bandwidth | 340 MHz |
| Max. Data Rate | 10.2 Gbps |
| TMDS Signal Input/Output | 0.5~1.5 V p-p (TTL) |
| DDC Signal Input/Output | 5 V p-p (TTL) |
| Electrical and Physical Specifications | |
| Max. Operating Current | 50 mA |
| Power Supply | No power adapter required |
| Operating Temperature | -15°C ~ +55°C |
| Operating Humidity | 5 ~ 90% RH |
| Dimensions (L × W × H) | 43.5 × 64 × 16.5 mm |
| Weight | 40 g |
| Package Contents | |
| HDMI Surge Protector | 1 pcs |
| User Manual | 1 pcs |
| Grounding Cable | 1 pcs |
| Grounding Screw | 2 pcs |
