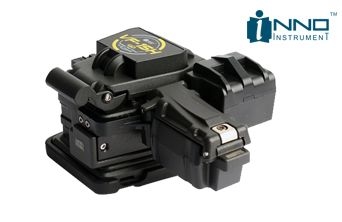

Fully automatic, single-action cutting with a built-in fiber core waste bin.
The patented universal holder is fully compatible with 250μm fiber cable, 900μm fiber cable, flat cable, and fiber jumper cables.
With its uniquely designed pressure suspension, it prevents damage to the fiber by ensuring the blade returns slowly after the cleaving process.
Each marked point on the blade can be used for over 3,000 cuts. The blade has 16 cutting points, allowing for an average of 48,000 cleaves with a single blade.
The magnesium alloy blade structure provides optimal cutting of fiber ends, increasing your processing speed.
Technical Specifications
Fiber Diameter: 80μm ~ 125μm
Cleave Length: 6–20 mm (Single fiber)
Cleave Angle: Less than 0.5 degrees
Blade Life: 48,000 cleaves (1,000 fibers per step, 16 total steps, 3 heights)
