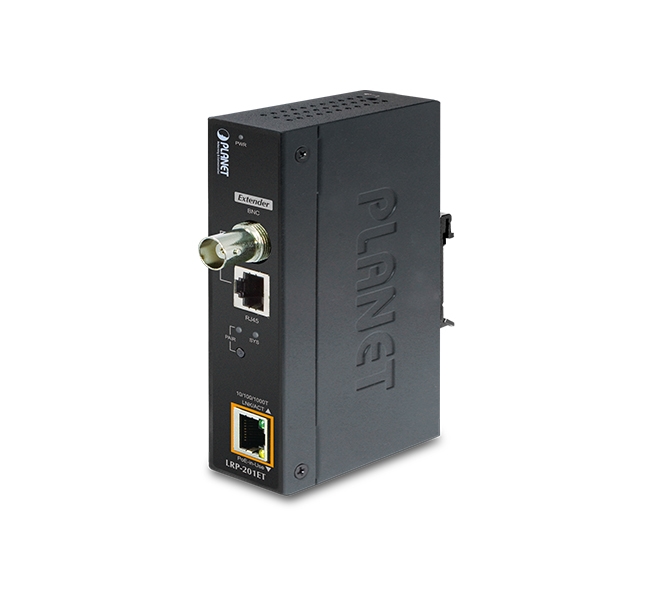

Stock Code: LRP-201ET
| Hardware Specifications | |
|---|---|
| Ethernet Interface |
Copper 10/100/1000BASE-T RJ45 Auto-negotiation / Auto-MDI/MDI-X Power over Ethernet Standard IEEE 802.3at/bt PoE PSE PoE Output 56V DC, 1.2A max. PoE Budget Up to 60 watts PoE Mode Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) Data Rate 100/100/1000Mbps Cabling Cat. 5e or above Maximum Distance 100 meters Maximum Frame sizes 1522 bytes |
| Long Reach PoE Interface |
Connectivity 1 x RJ45 female connector Long Reach PoE over UTP PD 1 x BNC female connector Long Reach PoE over coaxial PD Power Input 40~54V DC Power Pin Assignment Coaxial - BNC center pole: DC+ - BNC shield: DC- UTP - RJ45 Pins 1, 3, 5, 7: VCC+ - RJ45 Pins 2, 4, 6, 8: VCC- Cabling Coaxial - Coaxial cable: 75 ohm - RG-6/U cable, less than 12Ω/1000 ft. - RG-59/U cable, less than 30Ω/1000 ft. UTP - Cat. 5e/6 UTP cable - EIA/TIA-568 100-ohm STP Maximum Distance Coaxial - Max. 200m with PoE++ output (656ft.) - Max. 400m with PoE+ output (1312ft.) - Max. 600m with PoE output (1,968ft.) UTP - Max. 100m with PoE++ output (328ft.) - Max. 200m with PoE+ output (656ft.) - Max. 300m with PoE output (984ft.) - Max. 400m with PoE output (1,312ft.) Long Reach Ethernet Standard ITU-T G.hn Modulation Type OFDM Security 128-bit AES encryption Frequency Band 1 ~ 100 MHz Multiple nodes Supports up to 2 LRP extenders within 0.6km LRP Compatibility LRP-201HT- 1-Port LRP Injector |
| LRP Coaxial Performance |
|
||||||||||||||||||||
| LRP UTP Performance |
|
||||||||||||||||||||
| LED Indicators |
- PWR - SYS - PAIR - PoE-in-Use - LNK/ACT |
||||||||||||||||||||
| ESD Protection | 6KV DC | ||||||||||||||||||||
| PAIR Button | Press for 3 sec to join LRP-201HT | ||||||||||||||||||||
| Reset Button | Press over 10 sec to return to factory default | ||||||||||||||||||||
| Enclosure | IP30 slim type metal case | ||||||||||||||||||||
| Installation | DIN-rail kit or wall-mount ear | ||||||||||||||||||||
| Dimensions (W x D x H) | 135 x 87.8 x 32 mm | ||||||||||||||||||||
| Weight | 510g | ||||||||||||||||||||
| Power Requirements | - BNC Power over Coaxial Input: 40~54V DC, 1.8A max. - RJ45 Power over Ethernet Input: 40~54V DC, 1.8A max. |
| Standards Conformance | |
|---|---|
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bt 4-pair Power over Ethernet Type 3 IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
|---|---|
| Temperature | Operating: -20~70 °C Storage: -30~75 °C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
| Standard Accessories | |
|---|---|
| Package Contents | - LRP-201ET - User's Manual - Wall-mount Kit - RJ45 Dust Cap x 2 - Warning Sticker |
