Hardware Specifications
Hardware Version	2
Network Connector	PoE In Port 1 x 10/100/1000BASE-T Ethernet with 802.3at PoE+ "Data + Power" in, auto MDI/MDI-X, auto-negotiation RJ-45 connector PoE Out Port 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE "Data + Power" out, auto MDI/MDI-X, auto-negotiation RJ-45 connector
Switch Architecture	Store-and-Forward switch architecture
MAC Address Table	2K MAC address table with auto learning function
Data Buffer	1 Mbit
Switch Fabric	6 Gbps
Switch Throughput	4.46 Mpps @ 64 bytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Jumbo Frame	9 KB
ESD Protection	2 KV DC
EFT Protection	2 KV DC
Enclosure	IP63 aluminum case
Installation	Wall-mount kit
LED Display	System: PWR (Green) Budget Alert (Orange) PoE Input Port: LNK/ACT (Orange) PoE Input Port: 1000 (Green) Per PoE Output Port: LNK/ACT (Green) Per PoE Output Port: PoE-in-Use (Orange)
Cable	Twisted-pair cable: 10BASE-T: 2-pair UTP Cat3, 4, 5 up to 100 meters 100BASE-TX: 2-pair UTP Cat5, 5e up to 100 meters 1000BASE-T: 4-pair UTP Cat5e, 6 up to 100 meters
Dimensions (W x D x H)	199.6 x 81 x 40 mm
Weight	373 g
Power Consumption	30 watts / 102.3 BTU (Full loading with PoE function)

Power over Ethernet
PoE Standard	PoE In Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD, class 4 PD Per PoE Out Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE
PoE Power	PoE In Port 50~57V DC, max. 30.8 watts Per PoE Out Port 44~55V DC, max. 25 watts
Power Pin Assignment	PoE In Port 1/2(+), 3/6(-); 4/5(+), 7/8(-) Per PoE Out Port 1/2(-), 3/6(+)

Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus

Environment
Operating	Temperature: -40 ~ 75°C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85°C Relative Humidity: 5 ~ 95% (non-condensing)

Splits one PoE+ input into two PoE outputs and carries the link 200 meters.

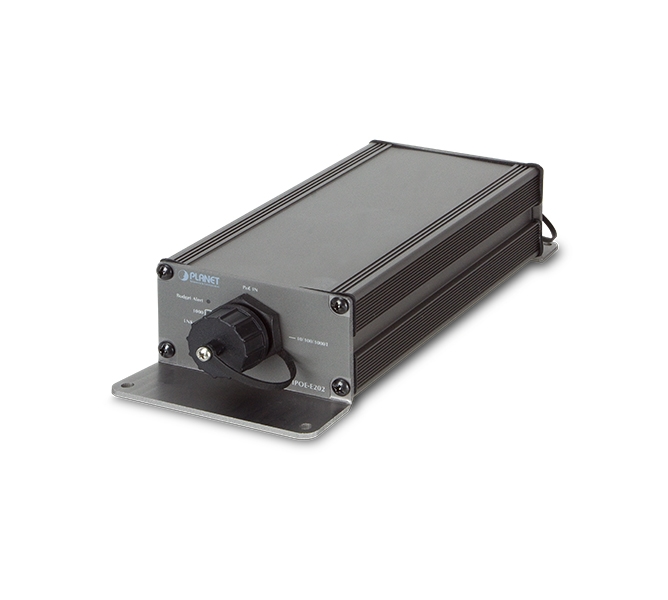

This industrial PoE extender takes power from a PoE+ source, distributes it across two 802.3af/at outputs and carries Gigabit Ethernet data over the same cable. The IP63 aluminum case withstands dust, moisture, shock and vibration in outdoor camera and access point installations.

30 WPoE+ input power

25 WPoE output budget

2 ports802.3af/at PoE output

6 GbpsSwitching Capacity

IP63enclosure protection

-40 ~ 75 °COperating Temperature

Key features

30W

Power drawn from the PoE+ input

Takes its power from the source device and needs no separate outlet.

25W

Budget shared across two outputs

Divides the budget between the two 802.3af/at ports.

200m

Doubles the Ethernet reach

Passes the standard 100 meter limit and reaches the remote device.

6Gbps

Switching capacity

Handles traffic across three Gigabit ports at 4.46 Mpps with 64 byte frames.

IP63rating

Outdoor-ready housing

The aluminum case shields against dust, moisture and electromagnetic interference.

-40~75°C

Wide temperature range

Works in unheated cabinets and open-air sites.

IN DAILY USE

Adds ports without new cableAttaches to the end of an existing run and opens no new route.

Budget alert LEDThe front panel indicator lights up once output power passes 20 watts.

Plug and playNo setup screen; it sits between the source device and the end device.

ApplicationsOutdoor PoE IP cameras·Outdoor wireless access points·IP intercom systems

Hardware Specifications

Hardware Version

Network Connector

PoE In Port
1 x 10/100/1000BASE-T Ethernet with 802.3at PoE+ "Data + Power" in, auto MDI/MDI-X, auto-negotiation RJ-45 connector
PoE Out Port
2 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE "Data + Power" out, auto MDI/MDI-X, auto-negotiation RJ-45 connector

Switch Architecture

Store-and-Forward switch architecture

MAC Address Table

2K MAC address table with auto learning function

Data Buffer

1 Mbit

Switch Fabric

6 Gbps

Switch Throughput

4.46 Mpps @ 64 bytes

Flow Control

IEEE 802.3x pause frame for full duplex
Back pressure for half duplex

Jumbo Frame

9 KB

ESD Protection

2 KV DC

EFT Protection

2 KV DC

Enclosure

IP63 aluminum case

Installation

Wall-mount kit

LED Display

System:
PWR (Green)
Budget Alert (Orange)
PoE Input Port: LNK/ACT (Orange)
PoE Input Port: 1000 (Green)
Per PoE Output Port: LNK/ACT (Green)
Per PoE Output Port: PoE-in-Use (Orange)

Cable

Twisted-pair cable:
10BASE-T: 2-pair UTP Cat3, 4, 5 up to 100 meters
100BASE-TX: 2-pair UTP Cat5, 5e up to 100 meters
1000BASE-T: 4-pair UTP Cat5e, 6 up to 100 meters

Dimensions (W x D x H)

199.6 x 81 x 40 mm

Weight

373 g

Power Consumption

30 watts / 102.3 BTU (Full loading with PoE function)

Power over Ethernet

PoE Standard

PoE In Port
IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD, class 4 PD
Per PoE Out Port
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE

PoE Power

PoE In Port
50~57V DC, max. 30.8 watts
Per PoE Out Port
44~55V DC, max. 25 watts

Power Pin Assignment

PoE In Port
1/2(+), 3/6(-); 4/5(+), 7/8(-)
Per PoE Out Port
1/2(-), 3/6(+)

Standards Conformance

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Environment

Operating

Temperature: -40 ~ 75°C
Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85°C
Relative Humidity: 5 ~ 95% (non-condensing)
