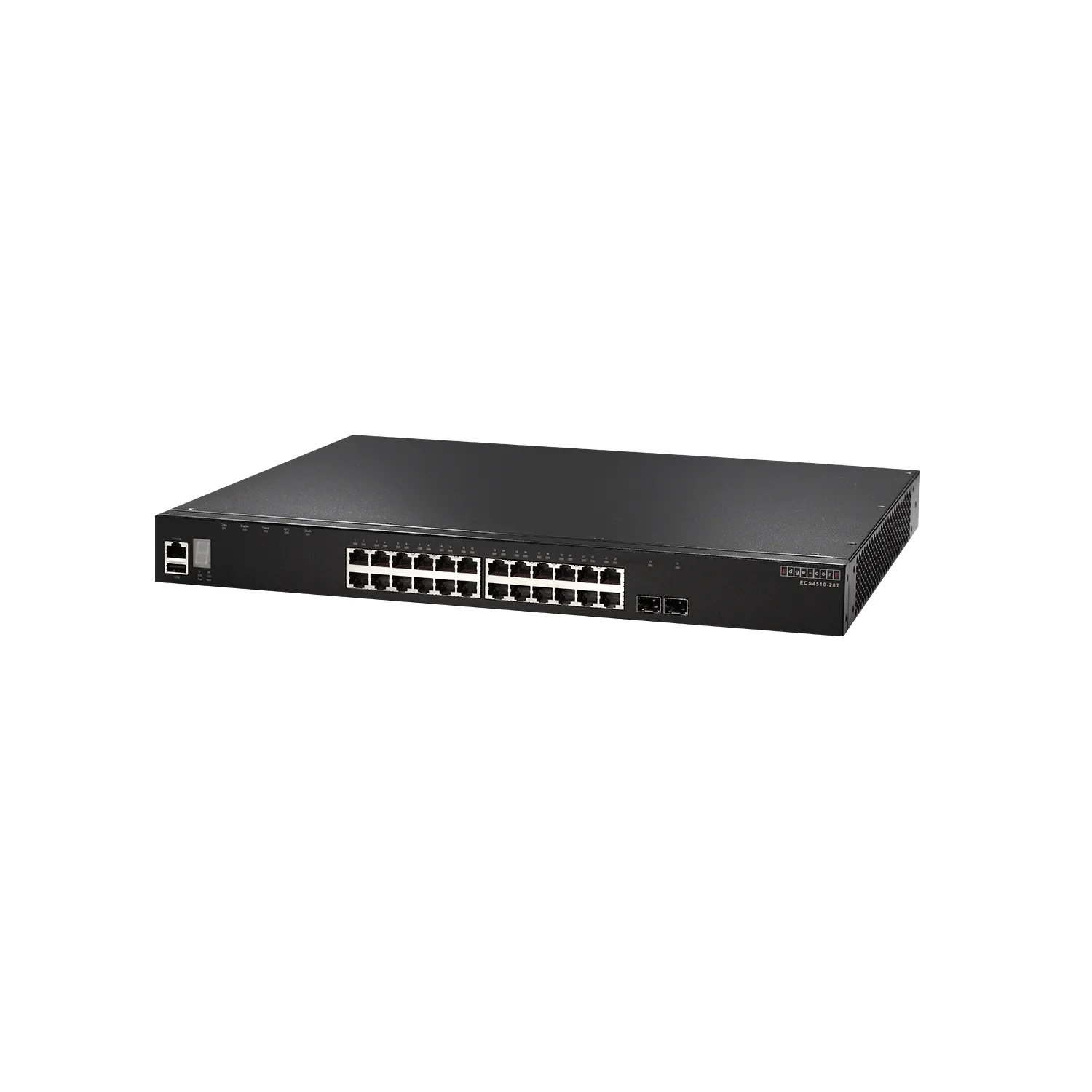

L2+ Stackable 24 x GE + 2 x 10G SFP+ ports + 1 x expansion slot fan-less design
Edge-Core

L2+ Stackable 24 x GE + 2 x 10G SFP+ ports + 1 x expansion slot fan-less design

Stock Code: ECS4510-28T

The Edgecore ECS4510 series includes high-performance Gigabit Ethernet Layer 2+ switches with 28 or 52 ports; featuring 24/48 10/100/1000BASE-T ports for dual-port modules, two 10G SFP+ ports, and one 10G expansion slot. These switches are ideal for high-performance server aggregation in enterprise data centers, where they can connect high-end or network-attached file servers via fiber ports. They can also be deployed as a backbone upgrade or to provide Gigabit connectivity to desktops for advanced users. Packed with features, these switches offer a cost-effective solution that delivers continuous availability, enhanced security, and advanced QoS to the network edge while maintaining management simplicity.



  • Performance and Scalability with 128 Gbps switching capacity

  • Continuous Availability – IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.3ad Link Aggregation Control Protocol (LACP)

  • G.8032 Ethernet Ring Protection Switching

  • Comprehensive QoS – Traffic is prioritized based on 802.1p and DSCP; Weighted Round Robin (WRR) and strict priority ensure differentiated prioritization of packet flows and prevent congestion in ingress and egress queues

  • Supports Three-Color Marker and Policing, including: Single rate: Committed Information Rate (CIR), Dual rate: CIR + Peak Information Rate (PIR) traffic policing

  • Advanced Security with port security limits, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), Private VLANs (per-port traffic segmentation), Dynamic ARP Inspection (DAI), Secure Shell (SSH), and Secure Sockets Layer (SSL/HTTPS) for secure network management

  • Hardware Stacking

  • Simple Management with an industry-standard Command Line Interface (CLI)

  • Layer 3 Features including IPv4 Static Routing and RIP
