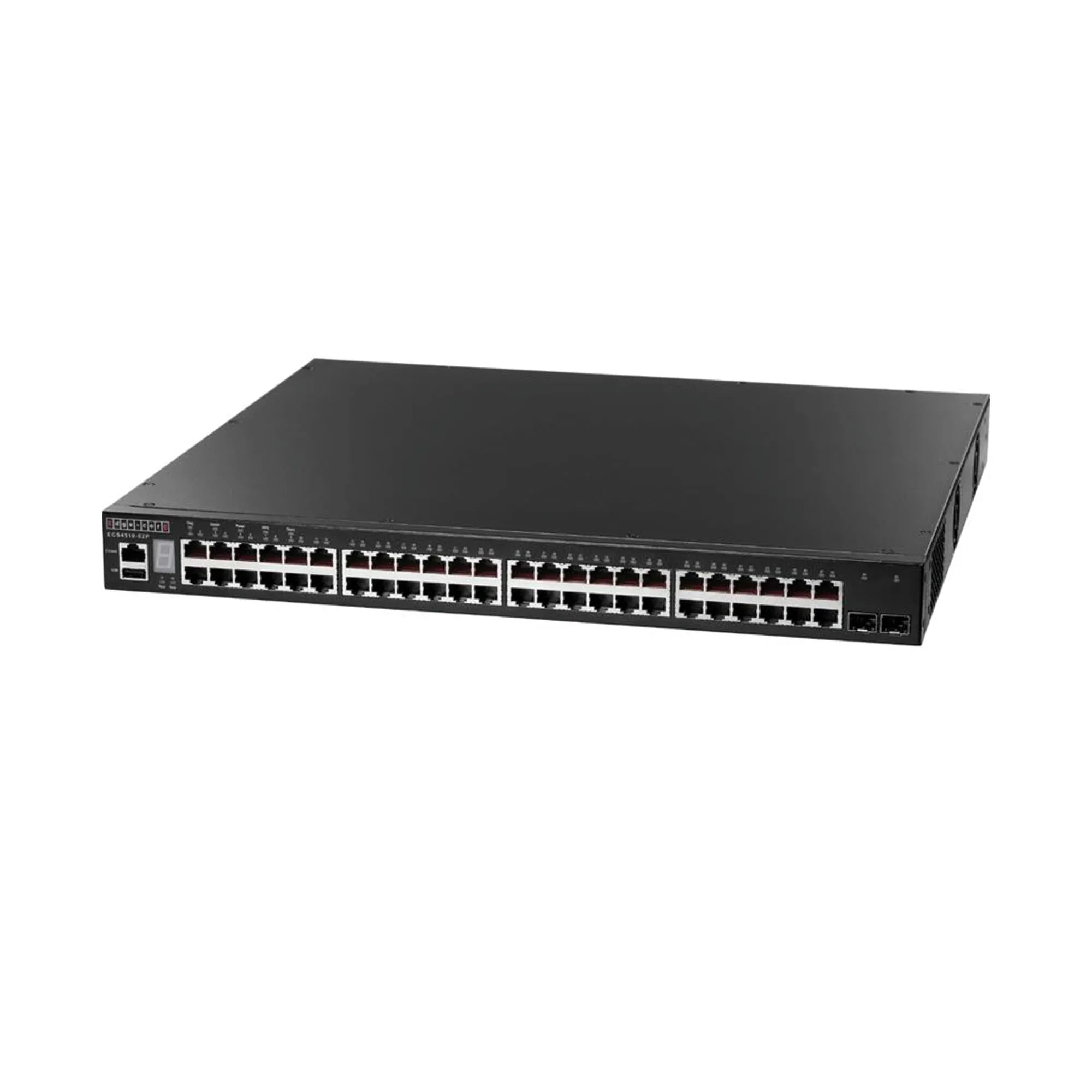

L2+ Stackable 48 x GE + 2 x 10G SFP+ ports + 1 x expansionPoE Budget max. 780W

The Edgecore ECS4510 series includes high-performance Gigabit Ethernet Layer 2+ switches with 28 or 52 ports; featuring 24/48 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual-port module. These switches are ideal for high-performance server aggregation in enterprise data centers, where they can connect high-end or network-attached file servers via fiber ports. They can also be deployed as a backbone upgrade or to provide Gigabit connectivity to desktops for advanced users. Packed with features, these switches offer a cost-effective solution that delivers continuous availability, enhanced security, and advanced QoS to the network edge while maintaining management simplicity.

• Performance and Scalability with 176 Gbps switching capacity

• Continuous Availability – IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.3ad Link Aggregation Control Protocol (LACP)

• G.8032 Ethernet Ring Protection Switching

• Comprehensive QoS – Traffic is prioritized based on 802.1p and DSCP; Weighted Round Robin (WRR) and strict priority ensure differentiated prioritization of packet flows and prevent congestion of ingress and egress queues

• Three-Color Marker and Policing, including: Single rate: Committed Information Rate (CIR), Dual rate: CIR + Peak Information Rate (PIR)

• Advanced Security – Port security limits, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), Private VLANs (per-port traffic segmentation), Dynamic ARP Inspection (DAI), Secure Shell (SSH), and Secure Sockets Layer (SSL/HTTPS) for secure network management

• Hardware Stacking

• Simple Management with an industry-standard Command Line Interface (CLI)

• Layer 3 Features – IPv4 Static Routing and RIP
