    Edge-Core

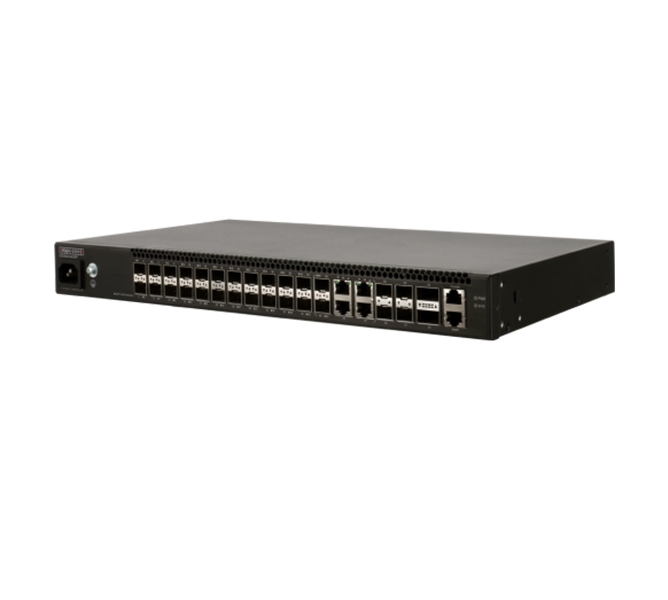

    L2+/L3 LITE Gigabit Ethernet CSFP Switch With 4 10G And 2 20G Uplinks

    Stock Code: ECS4530-54CSFP

    The Edgecore ECS4530-54CSFP switch is a high port density Gigabit Ethernet fiber switch with four 10G uplink ports. By inserting a CSFP transceiver with two bidirectional fiber ports into a CSFP port, Internet Service Providers (ISPs) and Multiple System Operators (MSOs) can support twice as many subscribers per port and reduce the space and heating or cooling costs needed for deploying two 24 port switches and larger 48-port switches. The switch is ideal for ISPs/MSOs that want to provide home users with FTTH triple-play services with up to a Gigabit of bandwidth. It is also ideal for ISPs/MSOs that want to aggregate FE/GE access switches with Gigabit fiber uplinks. The ECS4530-54CSFP switch is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advanced IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.



    • Performance and Scalability with 256 Gbps switching capacity
    • High Density Gigabit Ethernet Fiber Compact 1U design
    • 22 x CSFP + 2 CSFP/ 4 RJ45 Combo + 4 x 10G uplink + 2x 20G QSFP+, 1 Out of band management port, Front Access, depth only 22cm
    • Continuous Availability – MLAG, ITU-T 8032 ERPSv2, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1D Spanning Tree Protocol (STP)
    • Comprehensive QoS – Traffic is prioritized according to 802.1p and DSCP, ACL, Weighted Round Robin (WRR) and strict priority scheduling ensure differential prioritization of packet flows and avoid congestion of egress queues
    • Enhanced Security with Port security, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), DAI (Dynamic ARP Inspection); Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management
    • Robust Multicast Control with IGMPv1/v2/v3 Snooping, MVR
    • Simple Management with an industry-standard command-line interface (CLI), Web GUI, SNMPv1/v2/v3 with complete private MIB
    • IPv6 Management, DCHPv6 Snooping, IPv6 Source Guard
    • IPv4/ IPv6 static route
