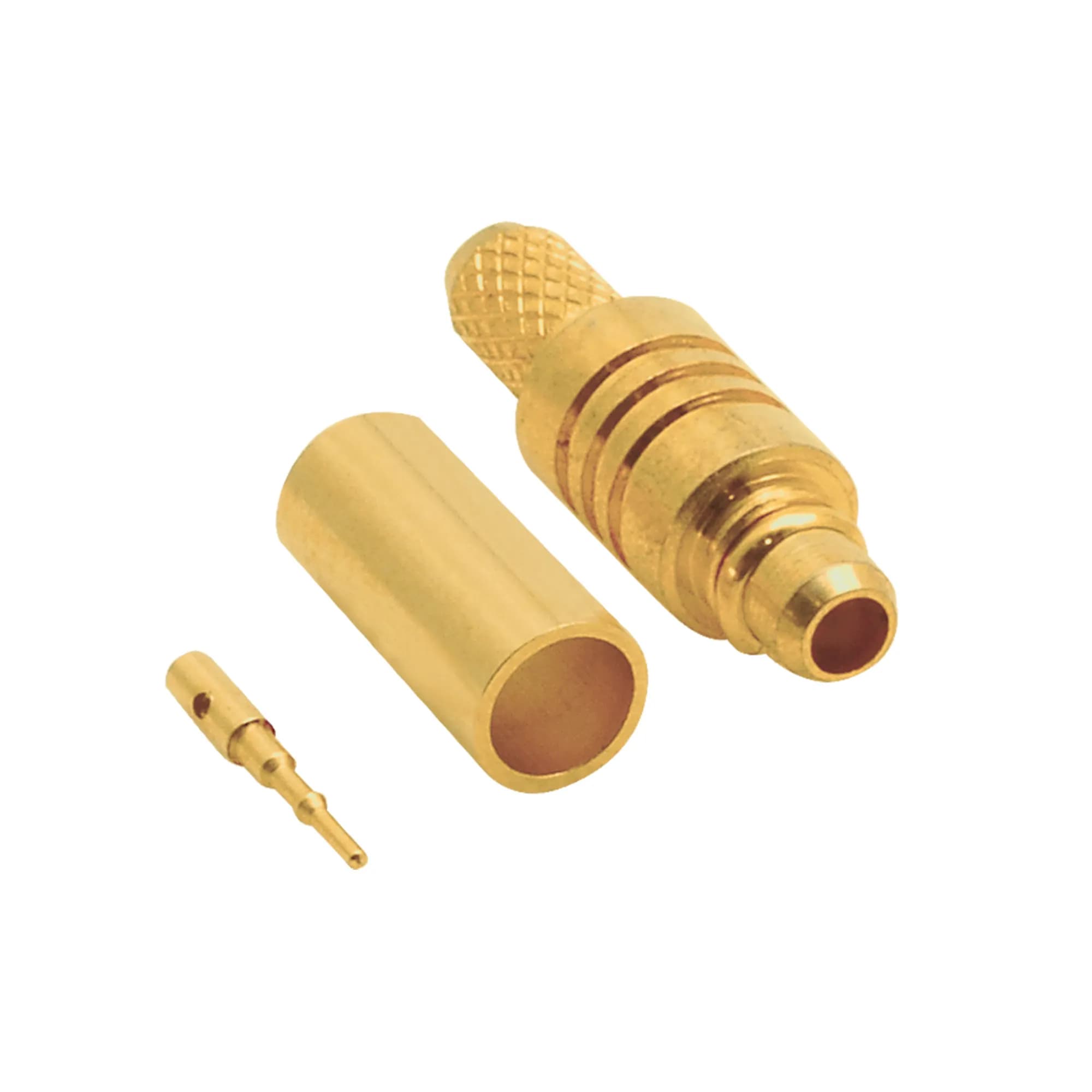

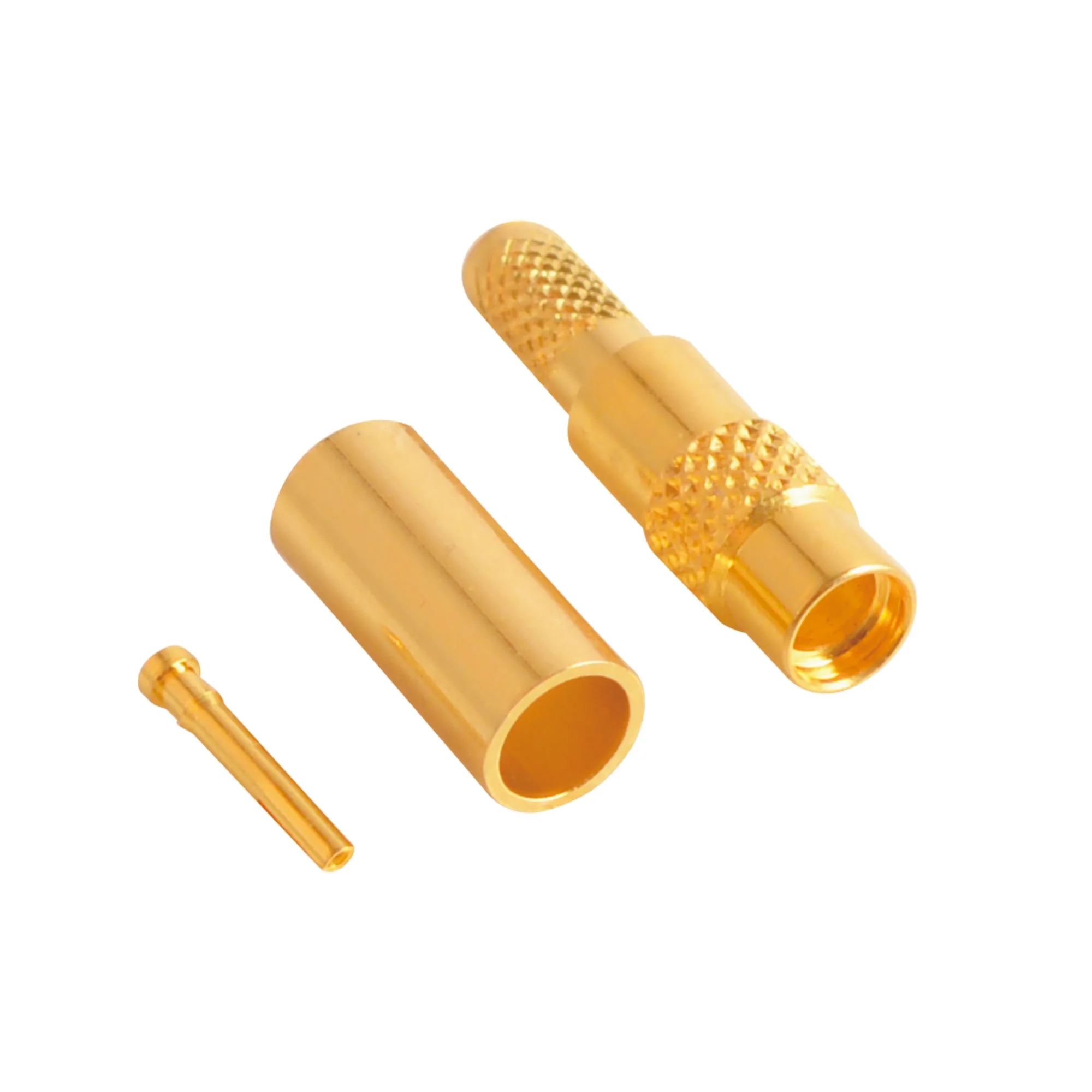

A crimp type MMCX female connector for RG174 coaxial cable. It uses the micro miniature coaxial link system and works at 50 Ω impedance across the 0 - 6.0 GHz band.
Micro miniature interfaceIt receives the micro miniature coaxial link system inside tightly packed equipment.
Wide frequency bandIt operates across the 0 - 6.0 GHz range.
Low reflectionVSWR stays at 1.22 max. in the straight version over the 0 - 2 GHz band.
Low insertion lossInsertion loss stays at 0.1 dB max. at 1.0 GHz in the straight version.
Gold plated contactThe gold plated contact and body minimize signal loss.
Crimp terminationIt terminates RG174 coaxial cable by crimping.
