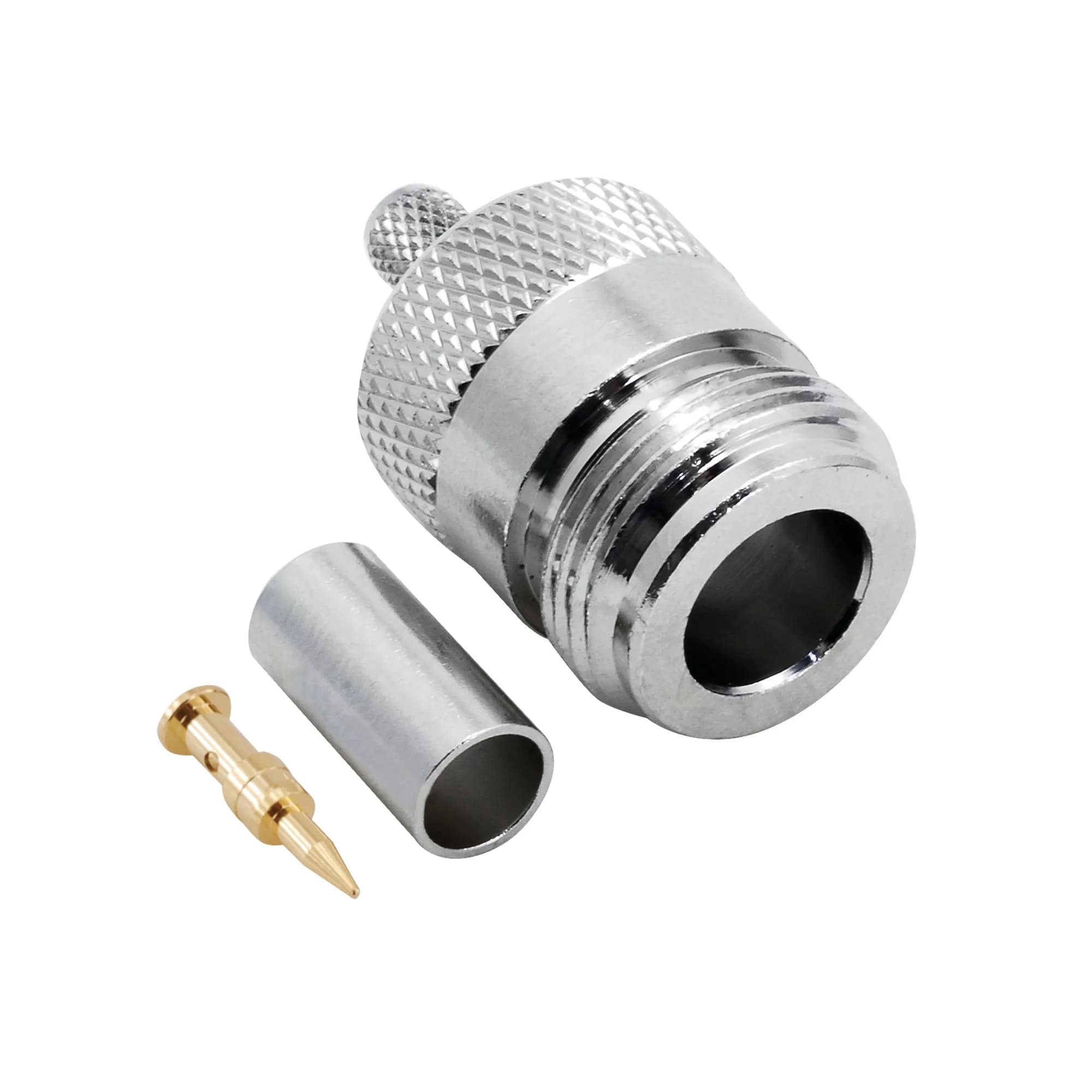

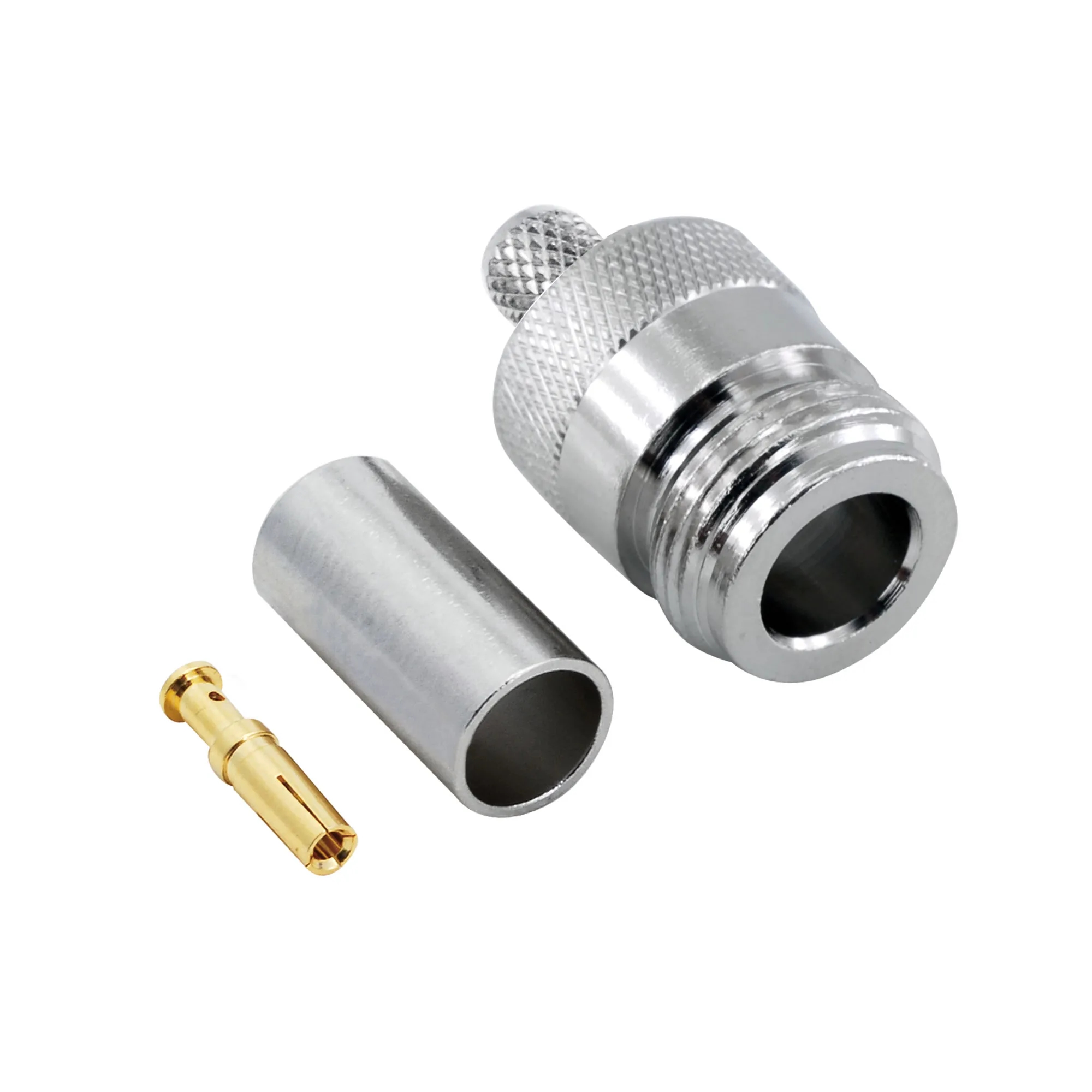

Terminates LMR240 coaxial cable at an N female interface.
This female crimp N connector joins LMR240 coaxial cable to a 50Ω N line. The medium-size threaded body screws onto the mating male connector, and the crimp operation fixes the connector permanently on the cable end.
50ΩImpedance
0 - 11.0 GHzFrequency Range
CrimpLink Type
FemalePlug Type
SilverOuter Jacket
Key features
Crimp terminationA crimp tool seats the connector on the end of the LMR240 cable and the joint stays permanent.
0 - 11.0 GHz bandThe 50Ω body works across this frequency range.
VSWR figureIt stays within 1.3 on straight bodies and 1.5 on right-angle bodies.
Insertion lossAt 10 GHz the insertion loss stays at 0.3 dB at most.
Silver-plated bodyThe female body takes the facing male N plug.
