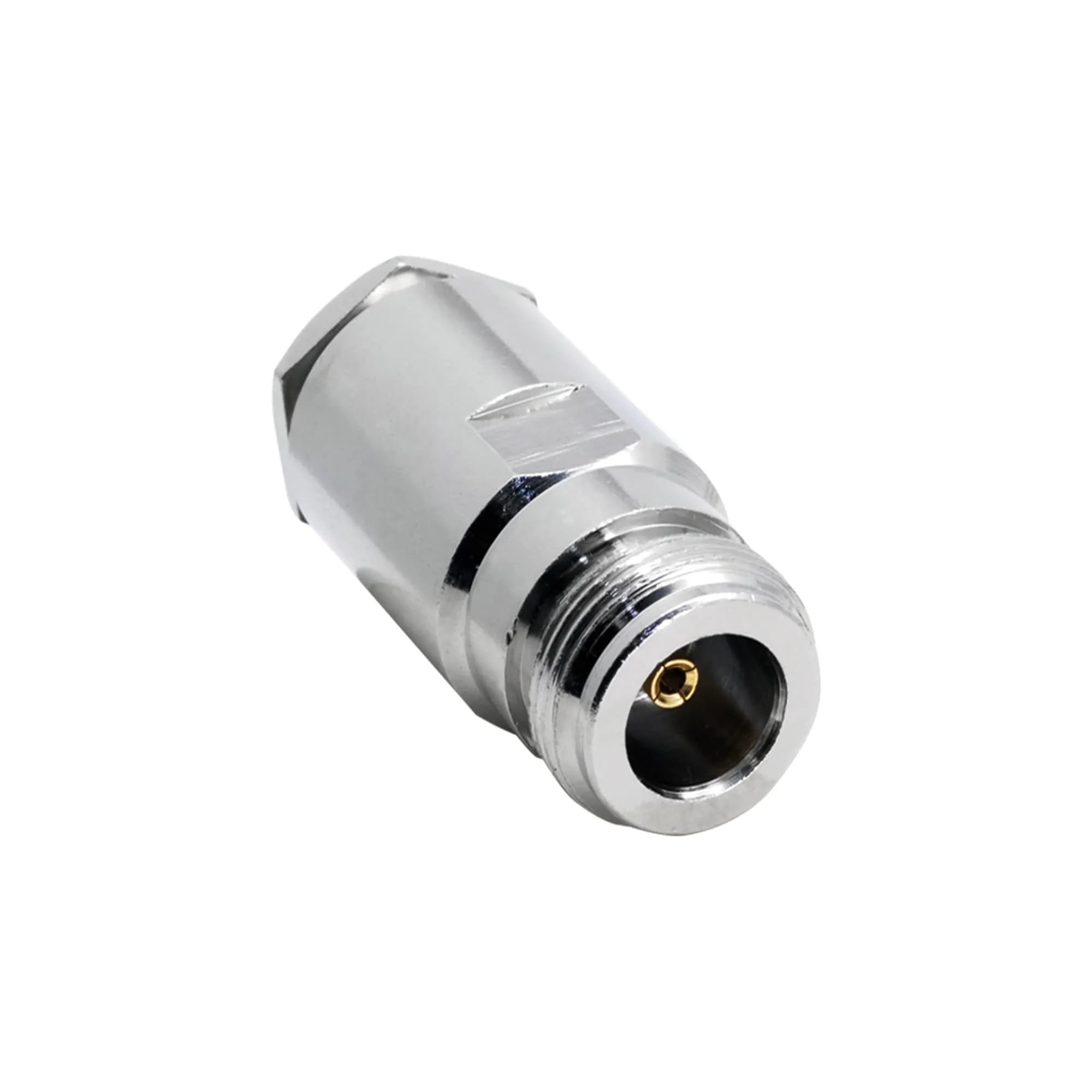

Terminates an RG58 coaxial line in a crimp N female interface.
This N female crimp connector links RG58 coaxial cable to 50 Ω high frequency lines. On antenna and radio lines it turns the cable end into a female N connection point.
Impedance matchThe connector operates at 50 Ω and keeps the line impedance of the RG58 cable unchanged.
Frequency rangeIt carries signals across the 0 – 11.0 GHz band and holds reflection low over that range.
TerminationA crimp tool clamps the cable end onto the connector body mechanically.
InterfaceThe female N interface holds the mating male connector with a threaded lock and completes the link at line extension points.
PlatingThe body carries silver plating that covers the mating surface.
Signal qualityVSWR stays within 1.3 on the straight body, and insertion loss holds at 0.3 dB max at 10 GHz.
