Turns the end of an RG213 cable into an N type interface.

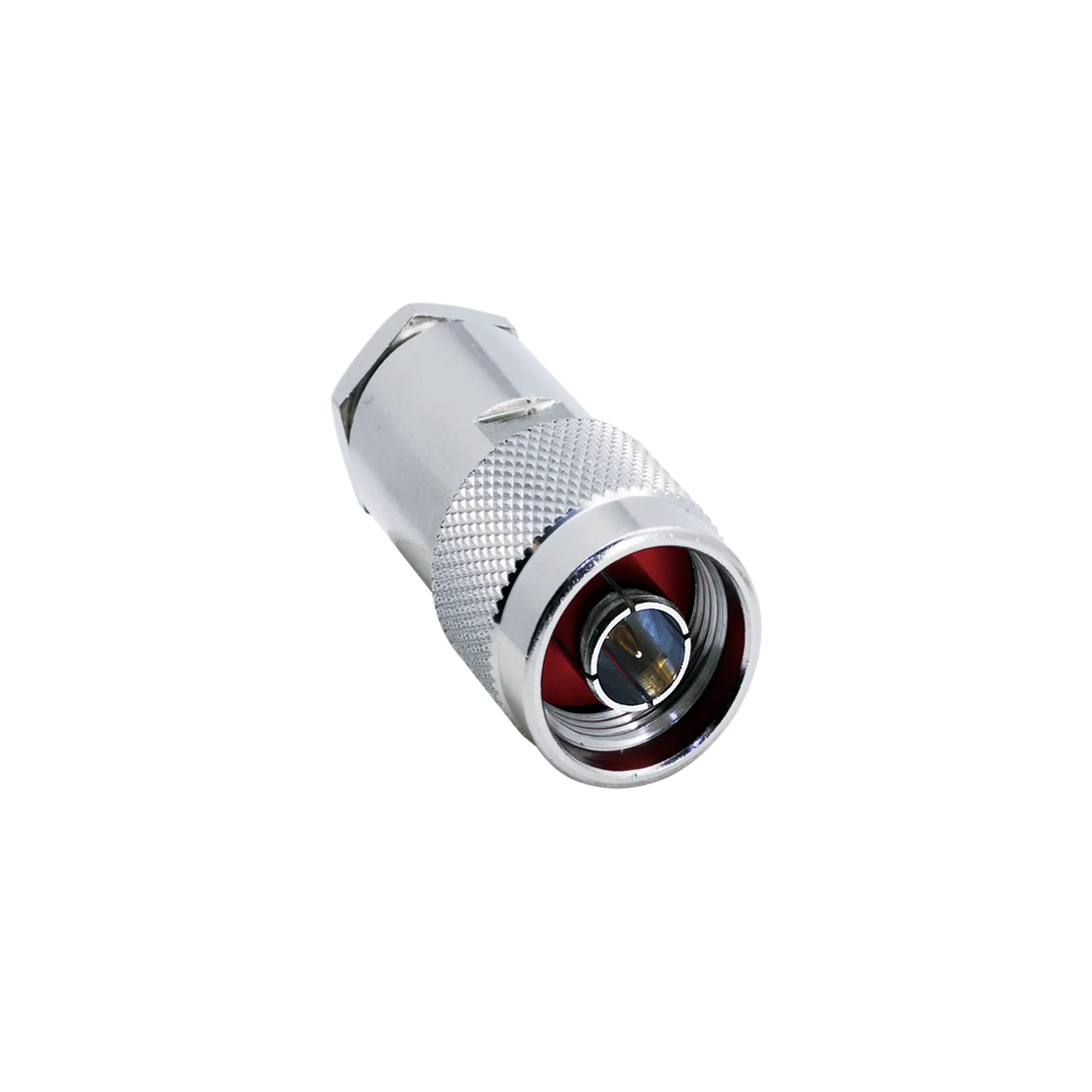

The male N connector terminates RG213 cable with a screw-on sleeve. It works on 50 Ω lines up to 11.0 GHz, and the threaded nut tightens the mating onto the port.
Screw-on terminationThe threaded sleeve tightens the cable onto the body and holds it in place.
Threaded couplingThe threaded nut tightens the connector onto the mating port.
BandwidthCarries signal across the 0 - 11.0 GHz band.

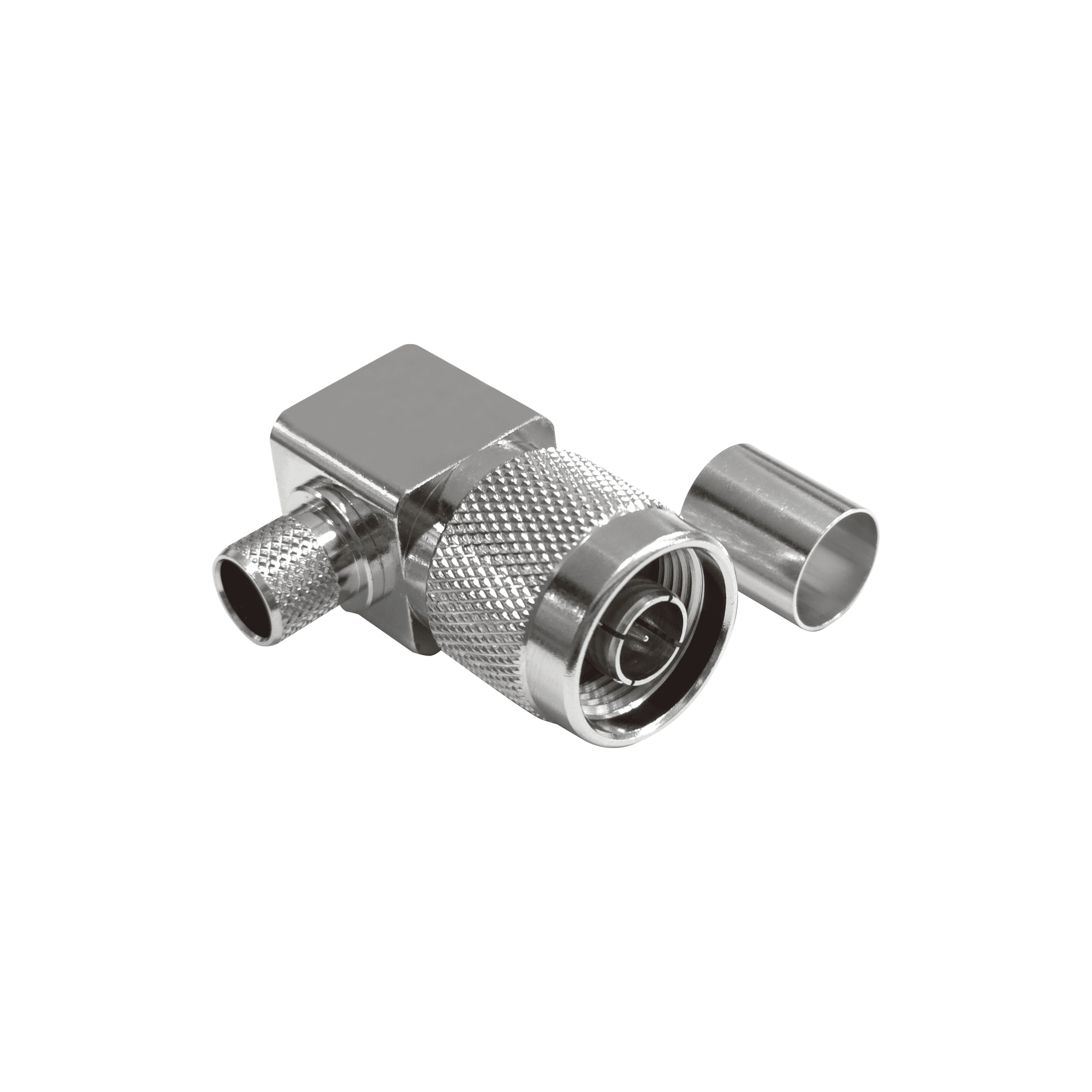

Electrical valuesVSWR stays below 1.3 on straight bodies and below 1.5 on right angle bodies, and insertion loss holds at 0.3 dB at 10 GHz.
PlatingThe nickel plated body and the gold plated contact pin reduce signal loss.
